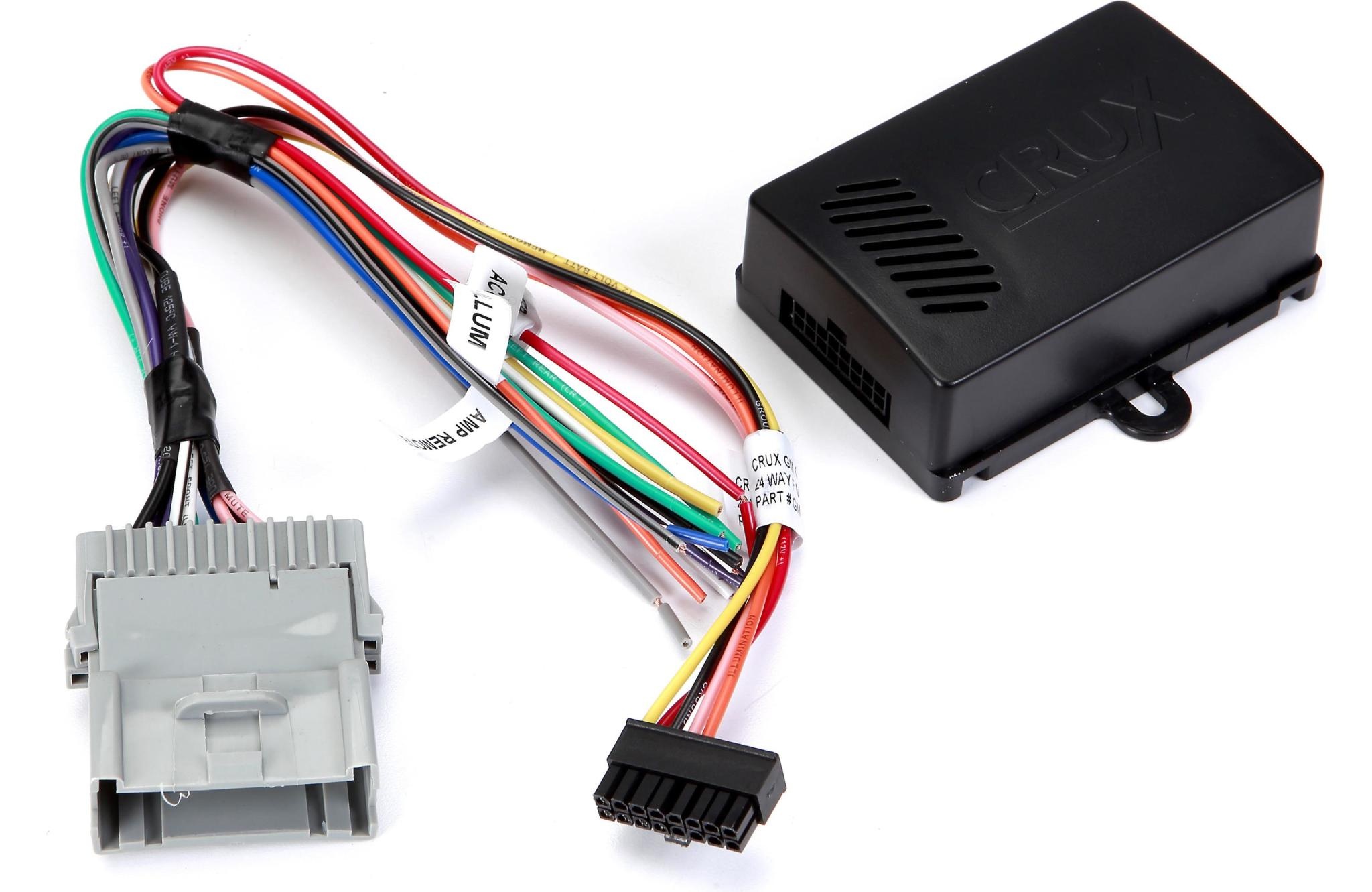

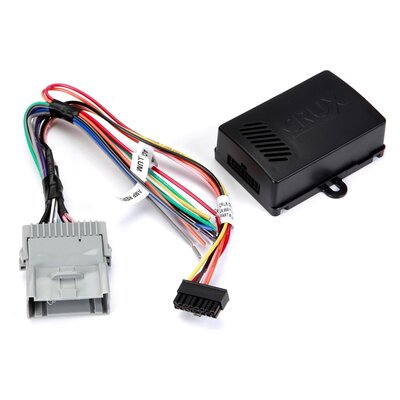

CRUX GM CHIME 00-07 INTERFACE

2000-up GM Class II radio replacement interface module

• lets you install an aftermarket receiver in late model GM vehicles without losing the door chime and audible safety warnings
• will not work with factory steering wheel controls, Bose® or OnStar® systems
• dimensions: 3-7/16"W x 1-1/16"H x 2-7/8"D
• warranty: 1 year

• Vehicle Compatibility: The CRUX SOCGM-17 radio replacement interface works with the following 2000-up GM vehicles with Class II system.

  Make	Model	Year
  Buick	Century	2004-2005
  	Lacrosse	2005-2007
  	Rainer	2003-2007
  	Rendezvous	2003-2007
  	Terraza	2005-2007
  Cadillac
  	Escalade	2003-2006
  Chevrolet	Avalanche	2003-2006
  	Cavalier	2000-2005
  	Colorado	2003-2013
  	Corvette	2005-2013
  	Express	2004-2007
  	Impala	2001-2005
  	Monte Carlo	2001-2003
  	S-10	2003-2004
  	Silverado	2003-2007
  	SSR	2003-2006
  	Suburban	2003-2006
  	Tahoe	2003-2006
  	Trailblazer	2002-2009
  	Venture	2003-2006
  	Uplander	2005-2008
  Hummer	H2	2003-2008
  	H3	2006-2009
  GMC	Canyon	2004-2011
  	Envoy	2002-2009
  	Savana	2003-2007
  	Sierra	2003-2007
  	Yukon	2003-2006
  Isuzu	Ascender	2003-2008
  Oldsmobile	Alero	2001-2004
  	Bravada	2002-2004
  	Silhouette	2000-2004
  Pontiac	Aztek	2003-2006
  	Grand Am	2000-2003
  	Sunfire	2000-2005
  Saturn	Relay	2007
  Saab	9-7x	2005-2008

  GM Class II Harness: The included GM Class II wiring harness features a 24-pin connector which plugs into your vehicle's factory radio harness and a 16-pin connector which plugs into the SOCGM-17 interface module. The GM Class II wiring harness also provides the following bare-wire leads which will need to be soldered or crimped to your aftermarket head unit's wiring harness:
