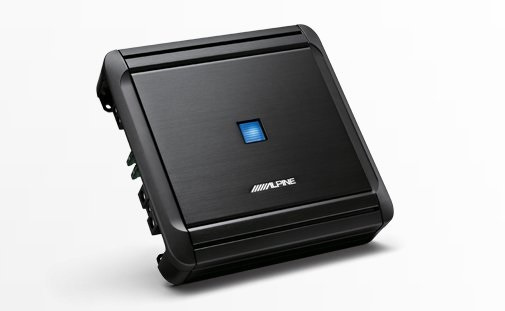

MRV-M500 ALPINE 500W 1CH AMP

Brand: ALPINE
|
In stock
Ordered before counting..., delivered tomorrow
Login for prices
Article code MRV-M500
EAN 793276012401
Information

SPECIFICATIONS

CEA-2006 Power Ratings
CEA-2006 Power Rating: 300W RMS x 1 (4-ohm, 14.4V at <1% THD+N)
RMS Power Ratings
Per channel into 4 Ohms: 300W RMS x 1 (14.4V at <1% THD+N)
Per channel into 2 Ohms: 500W RMS x 1 (14.4V at <1% THD+N)
Sound Tuning
Crossover Frequency (LPF): 50 - 400 Hz, -24dB/oct.
EQ (Equalizer): 0 to +12dB, fc=50Hz
Dimensions
Foot Print (WxHxD) mm: 200 x 55 x 200 mm
Foot Print (WxHxD) in: 7-7/8'' x 2-3/16'' x 7-7/8''
Heat Sink (WxHxD) mm: 165 x 55 x 200 mm
Heat Sink (WxHxD) in: 6-1/2'' x 2-3/16'' x 7-7/8''
General
Power Requirements: 14.4 V.DC (11-16V allowable)
Input Sensitivity (RCA Input): 0.15 - 4.0 V
Input Sensitivity (Speaker Level Input): 0.4 - 10 V
Input Impedance: >10k ohms
Frequency Response (+0, -3dB: 1W into 4 Ohms) for Subwoofer: 7 -400 Hz
THD+N (10W into 4 Ohms): Ɔ.02 %
THD+N (10W into 2 Ohms): Ɔ.03 %
THD+N (Rated Power into 4 Ohms): Ɔ.2 %
THD+N (Rated Power into 2 Ohms): Ɔ.3 %
Damping Factor (10W into 4 Ohms at 100Hz): >750
Signal to Noise (1W into 4 Ohms): >85 dB
Signal to Noise (Rated Power into 4 Ohms): >105 dB
Preamp Output: 4.0V Max.
Remote Level: -20 to 0 dB
Weight: 1.8 kg
