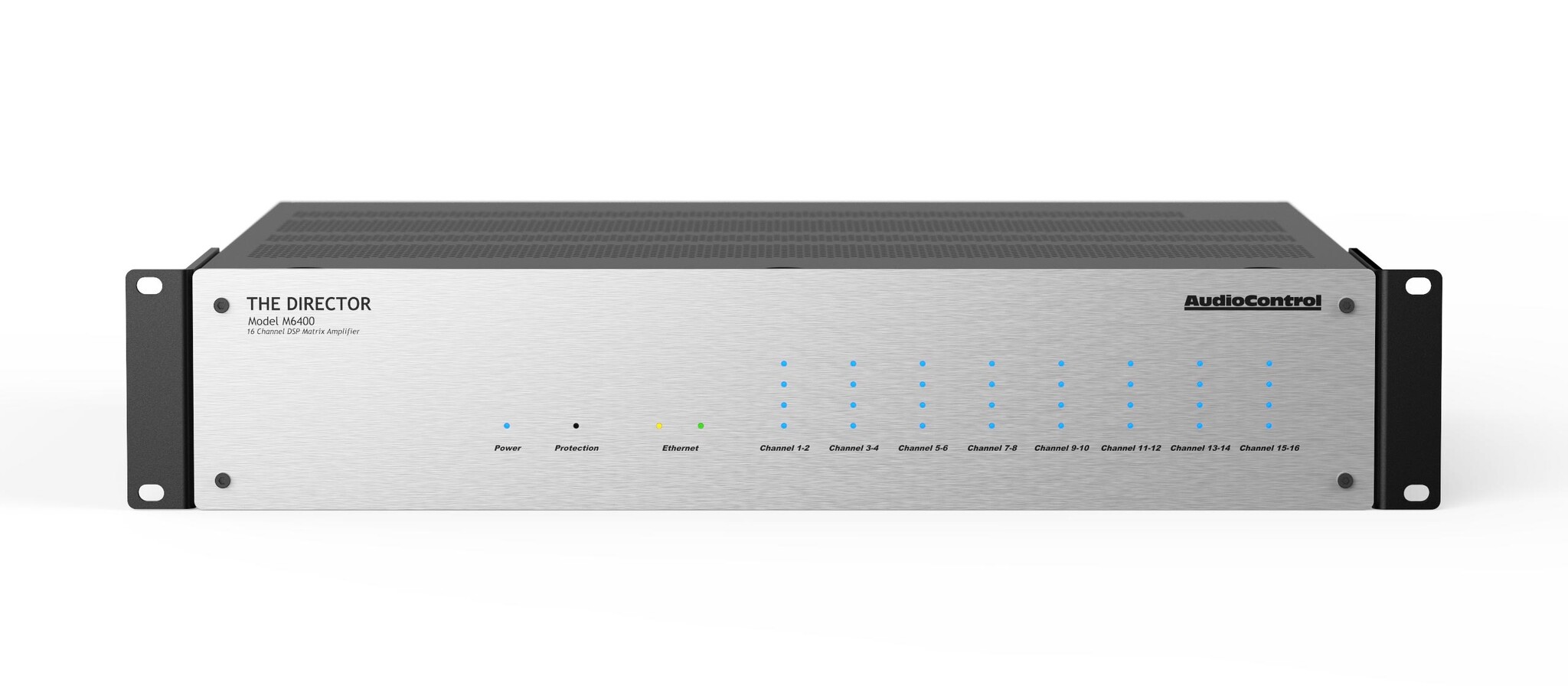

THE DIRECTOR M6400 16 CHANNEL 65W PER CHANNEL
Brand:
AUDIO CONTROL
|
| Article code | M6400 |
| EAN |
Information
FEATURES
- Network DHCP Signal Matrix Amplifier With Volume Control
- 16 Channels x 65 Watts at 8 Ohms (All Channels Driven)
- 16 Channels x 100 Watts at 4 Ohms (All Channels Driven)
- Bridgeable to 175 Watts of Bridged Power
- Digital Signal Processing (DSP) Performance
- Ethernet Port for Status Monitoring, Source Switching and 12 Volt Trigger Control
- Built in Matrix Delivering Analog or two digital inputs to be routed to any zone output on single or multiple amplifiers
- Network Programmable Graphic & Parametric Equalization with User Memories
- Assignable Names for All Zones & Amplifier
- Digital Signal Sense
- Programmable Electronic Crossover for Local Subwoofer Applications • Subsonic Filter
- AudioControl LightDrive Anti-Clipping Speaker Protection
- Local Inputs with Pass Thru / Loop Outputs
- Dual Digital Audio Bus Inputs
- Compact 2U Rack Space (Includes Rack Mount Brackets)

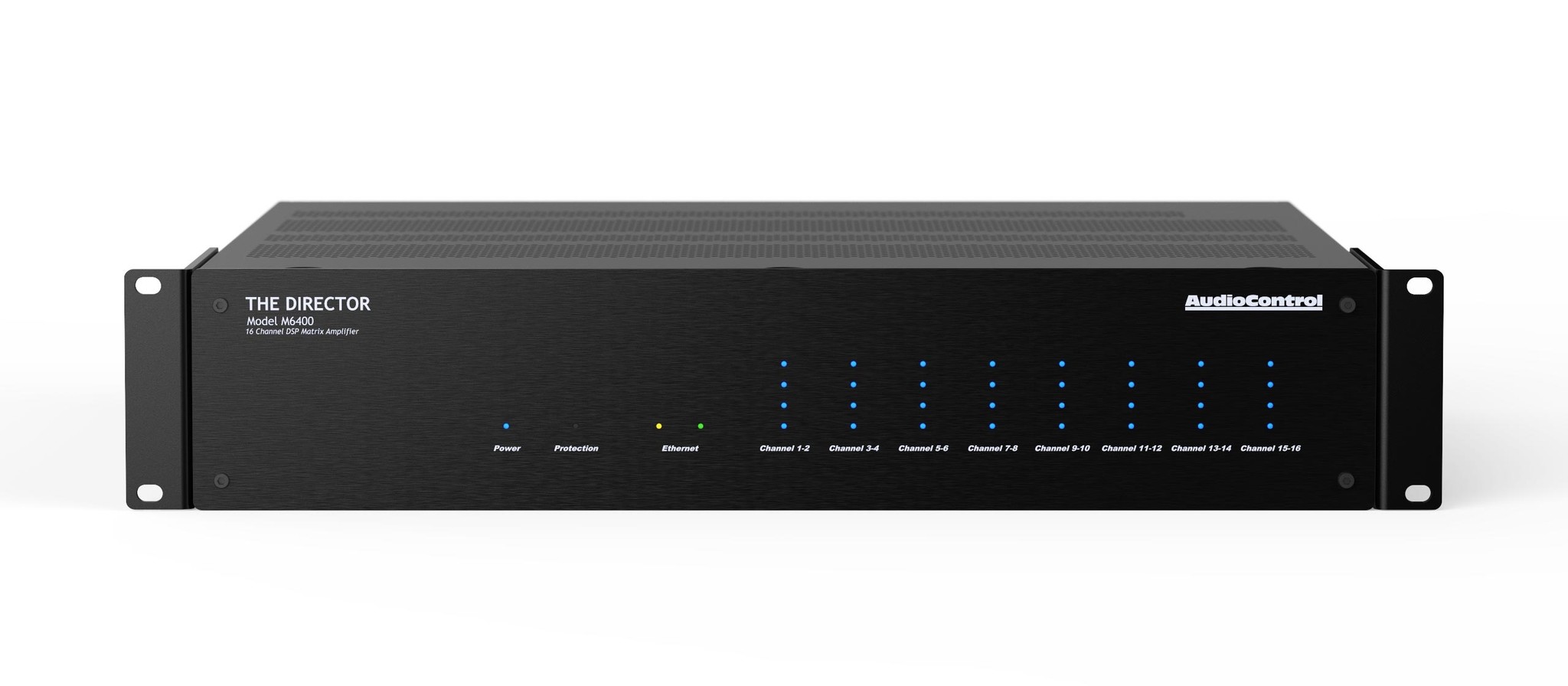

- Available in Brushed Stainless Steel or Expresso Black
- Home and Commercial Installations
SPECIFICATIONS
INPUTS

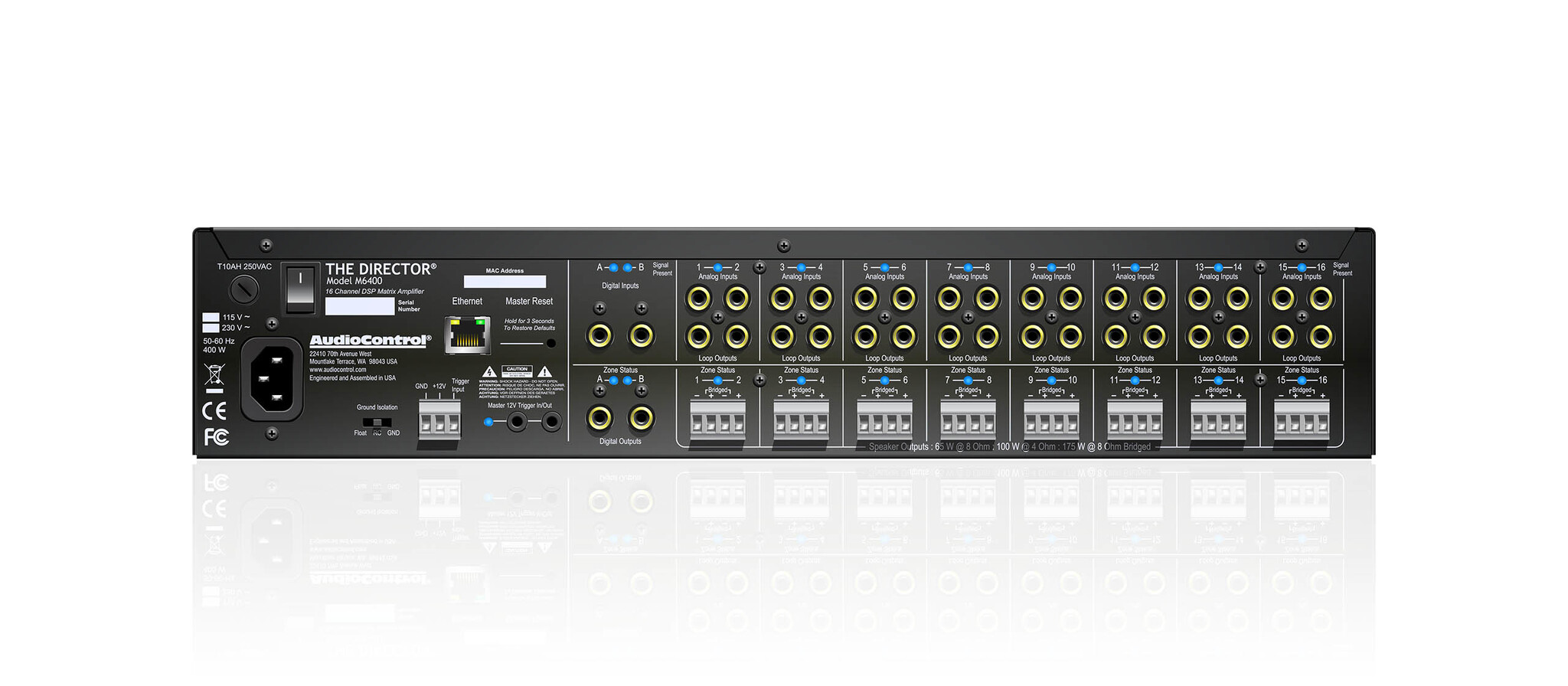

- Inputs: 8 Stereo Local Inputs, 2 Digital S/PDIF Inputs
- Input Sensitivity: 1 Vrms for full output, level at maximum
- Input Gain: 27 dB
OUTPUTS
- Amplifier Channels: 16
- Power Output (8Ω): 65W per channel
- Power Output (4Ω): 100W per channel
- Power Output (Bridged Mono): 175W
- Minimum Speaker Load: 4Ω
- Preamp Audio Outputs: 8 Stereo Loop Outputs, 2 Digital S/PDIF Outputs
PERFORMANCE
- Crosstalk: > 80 dB @ 1 kHz
- Damping Factor: >200
- Signal to Noise: >95 dB, A-wtd, ref full output
- Crosstalk: >80 dB @ 1 kHz
- DAC Specifications: 32 – 96 kHz sample rate, 16/24 bit depth
CONTROL
- Remote Power Trigger: +12 VDC or Dry Contact Closure
- Network Connection/Protocol: 10BaseT Ethernet TCP/IP
- Communication Protocol: HTTP or Telnet
GENERAL
- Power Consumption (Stand By): <2W
- Power Consumption (Idle): 35W
- Power Consumption (loud listening level): 220W
- Power Consumption (maximum): 1300W
- BTU/Hour Heat Dissipation (Standby): 6.8
- BTU/Hour Heat Dissipation (Idle): 121
- BTU/Hour Heat Dissipation (loud listening level): 314
- BTU/Hour Heat Dissipation (maximum): 890
- Protection: clipping, short circuit, thermal, ultrasonic, DC offset, stable into reactive or mismatched loads
WEIGHTS & DIMENSIONS
- Dimensions: 17” W x 15.5” D x 3.5” H (2U)
- Weight: 16.0lbs (7.26 kg)
- IN THE BOX: The Director Model M6400, Speaker Connectors, Remote Connector, Power Cord, Manual, Warranty
