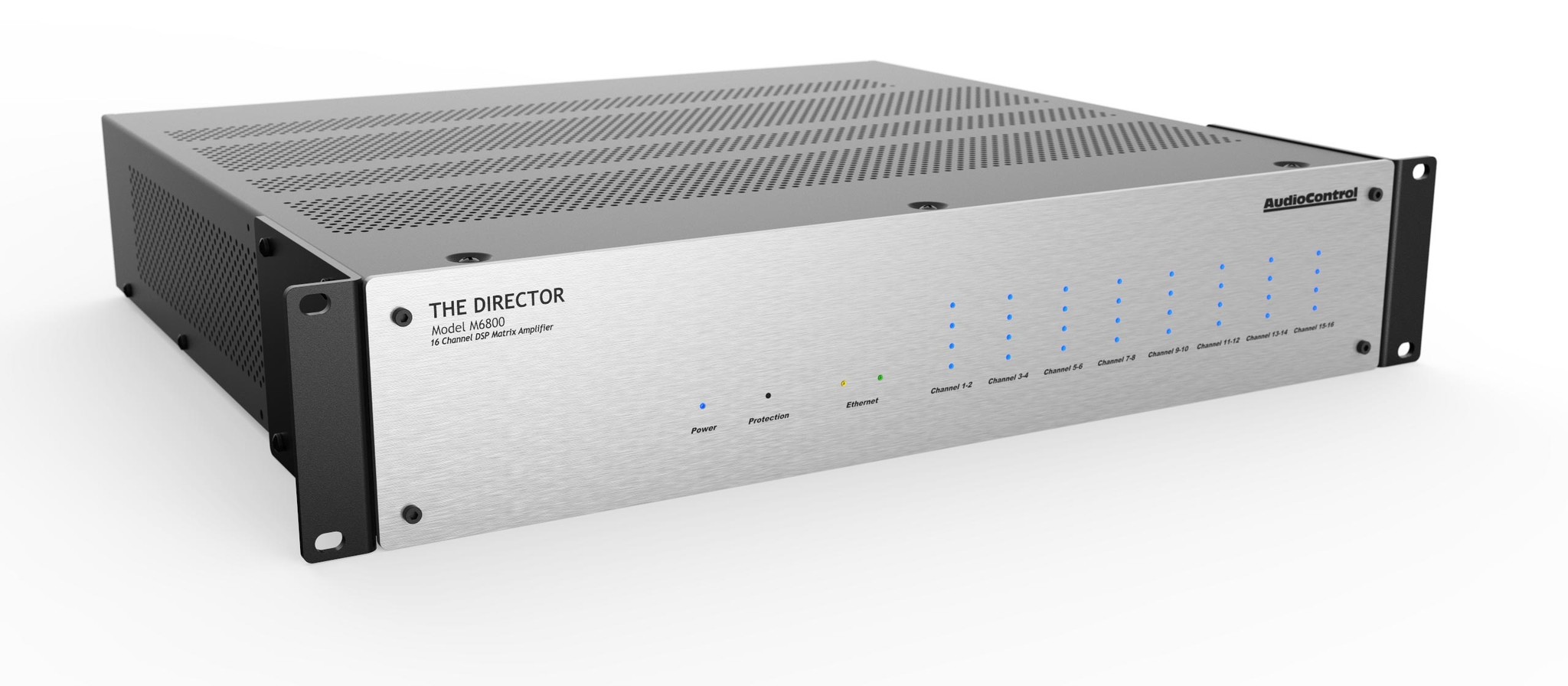

THE DIRECTOR M6800 16 CHANNELS 100W PER CHANNEL

Brand: AUDIO CONTROL
|
In stock
Ordered before counting..., delivered tomorrow
Login for prices
Article code M6800
EAN
Information

FEATURES

  • Network DHCP Signal Matrix Amplifier With Volume Control
  • 16 Channels x 100 Watts at 8 Ohms (All Channels Driven)
  • 16 Channels x 200 Watts at 4 Ohms (All Channels Driven)
  • Bridgeable to 400 Watts of Bridged Power
  • Digital Signal Processing (DSP) Performance
  • Built-In Speaker Optimization Profiles
  • Ethernet Port for Status Monitoring, Source Switching and 12 Volt Trigger Control
  • Built in Matrix Delivering Analog or two digital inputs to be routed to any zone output on single or multiple amplifiers
  • Network Programmable Graphic & Parametric Equalization with User Memories
  • Assignable Names for All Zones & Amplifier
  • Digital Signal Sense
  • Programmable Electronic Crossover for Local Subwoofer Applications; Subsonic Filter
  • AudioControl LightDrive Anti-Clipping Speaker Protection
  • Local Inputs with Pass Thru / Loop Outputs
  • Dual Digital Audio Bus Inputs
  • Compact 2U Rack Space (Includes Rack Mount Brackets)
  • Available in Brushed Aluminum or Expresso Black
  • Home and Commercial Installations

SPECIFICATIONS

INPUTS

  • Inputs: 8 Stereo Local Inputs, 2 Digital S/PDIF and Toslink Inputs
  • Input Sensitivity: 1 Vrms for full output, level at maximum
  • Input Gain: 30 dB

OUTPUTS

  • Amplifier Channels: 16
  • Power Output (8Ω): 100W per channel
  • Power Output (4Ω): 200W per channel
  • Power Output (8Ω Bridged Mono): 400W
  • Minimum Speaker Load: 4Ω
  • Preamp Audio Outputs: 8 Stereo Loop Outputs, 2 Digital S/PDIF Outputs

PERFORMANCE

  • Crosstalk: > 80 dB @ 1 kHz
  • Damping Factor: >300
  • Signal to Noise: >95 dB, A-wtd, ref full output
  • Crosstalk: >80 dB @ 1 kHz
  • DAC Specifications: 32 – 96 kHz sample rate, 16/24 bit depth

CONTROL

  • Remote Power Trigger: +12 VDC or Dry Contact Closure
  • Network Connection/Protocol: 10BaseT Ethernet TCP/IP
  • Communication Protocol: HTTP or Telnet

WEIGHTS & DIMENSIONS

  • Dimensions: 17” W x 15.5” D x 3.5” H (2U)
  • Weight: 21.0 lbs (9.5 kg)
  • IN THE BOX: The Director Model M6800, Speaker Connectors, Remote Connector, Power Cood, Manual, Warranty
