SPECS

SKU
PRO-CF8.4NR
Nominal Diameter
8" / 203mm
Nominal Impedance
4 OHMS
RMS Power Handing
300 WATTS
Maximum Power Handing
600 WATTS
Sensitivity (1w/1m)
99 dB
Frequency Response
63Hz - 12KHz
Recommended Hi Pass Crossover
80 Hz

SPECS

Voice Coil Diameter
2" / 50 mm
Voice Coil Former Material
Kapton
Winding Material
CCAW
Basket Material
Steel
Magnet Weight
10.5Oz / 0.3Kg

THIELE & SMALL PARAMETERS

Vas
72.15L / 2.584 ft3
Xmax
2.5 mm
Fs
61 Hz
Qms
10.169
Qes
0.344
Qts
0.333
Re
3.46 OHM

MEASUREMENTS

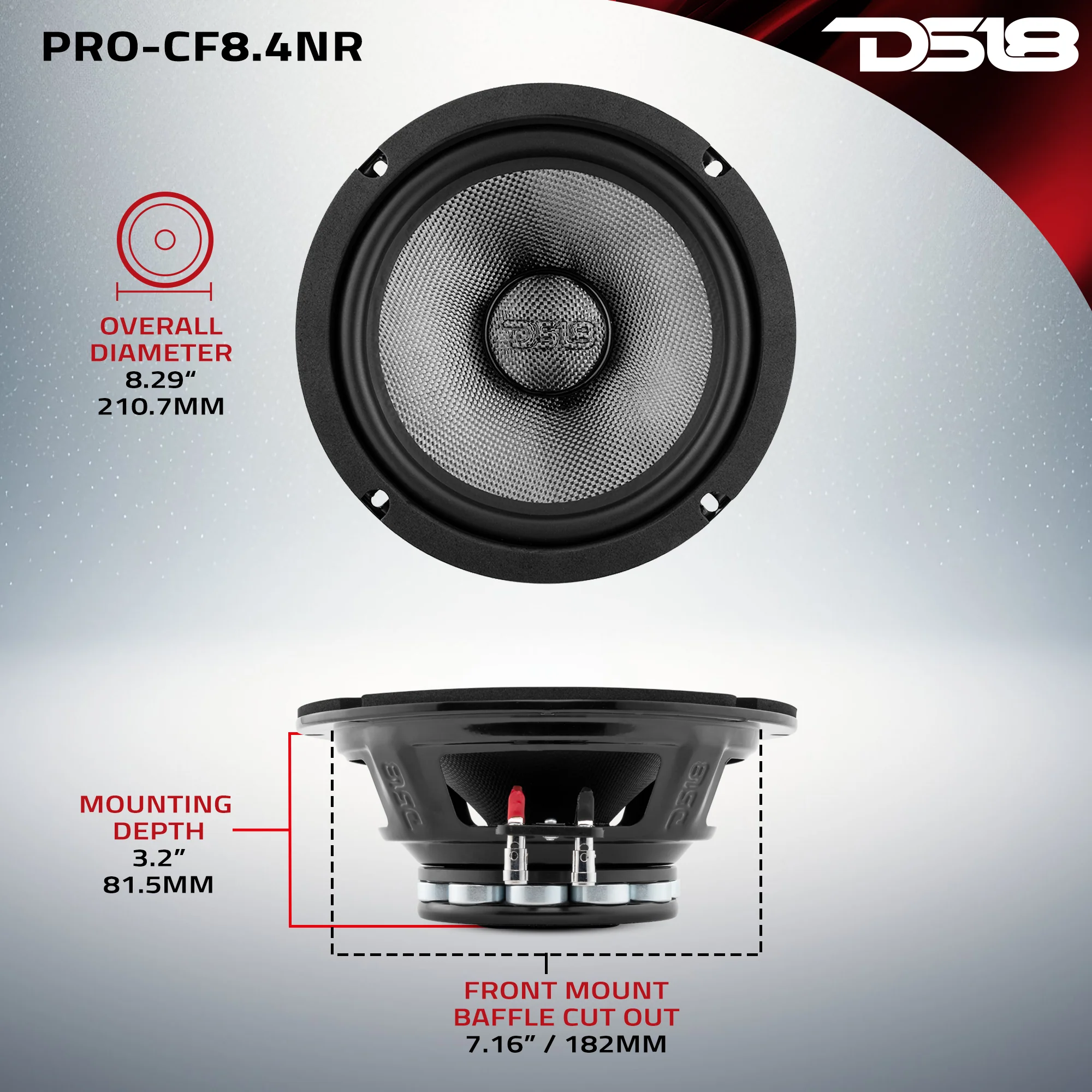

Overall Diameter
8.29" / 210.7 mM
Front Mount Baffle Cutout
7.16" / 182 mm
Mounting Depth
3.2" / 81.5 mm
Overall Depth
3.38" / 86 mm
Product Weight
4.5 lbs
Product Dimensions
9.75 x 9.75 x 4.75
M/C Weight
39 lbs
M/C Dimensions
20.5 x 20.5 x 10
M/C QTY
8
Sold In
Piece
