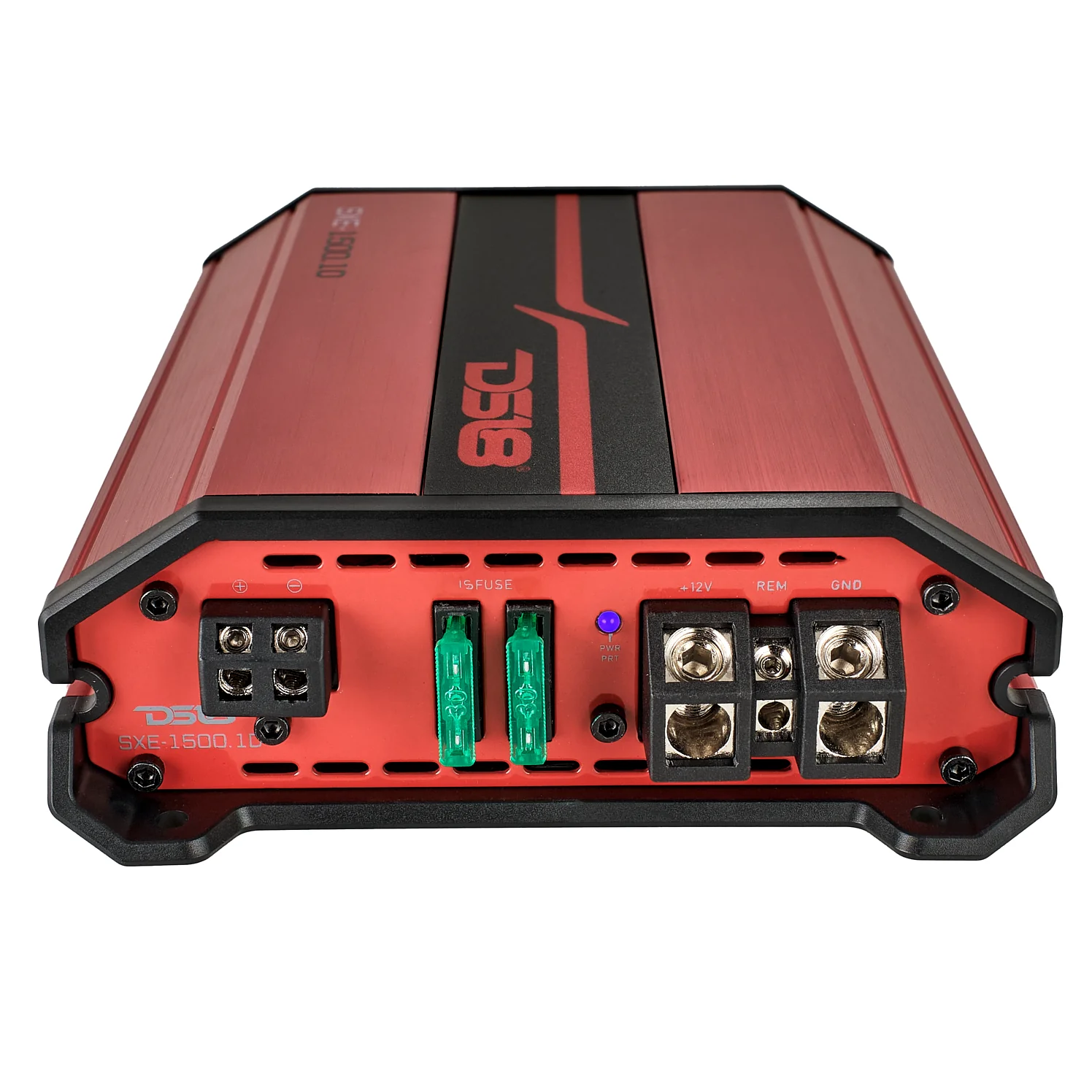

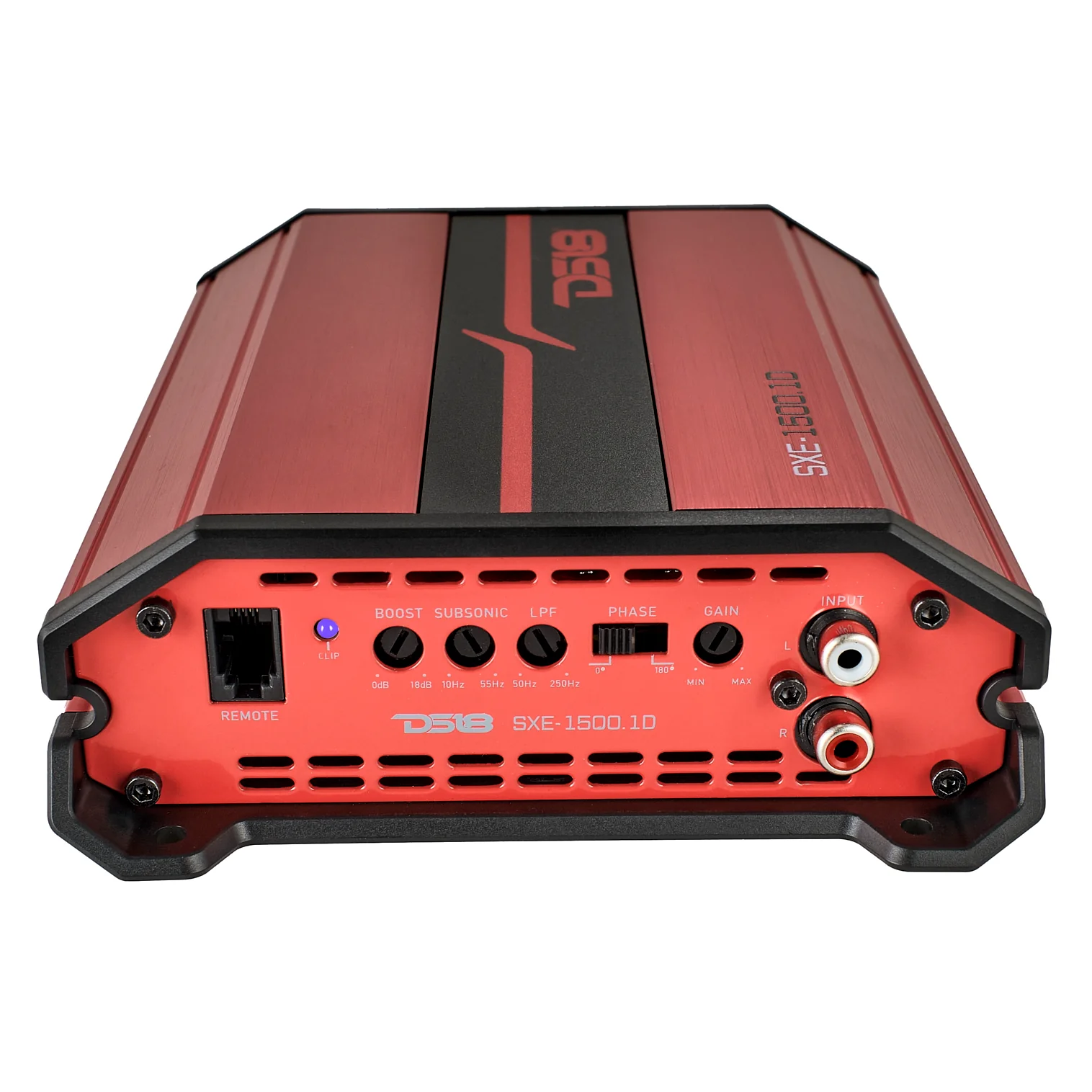

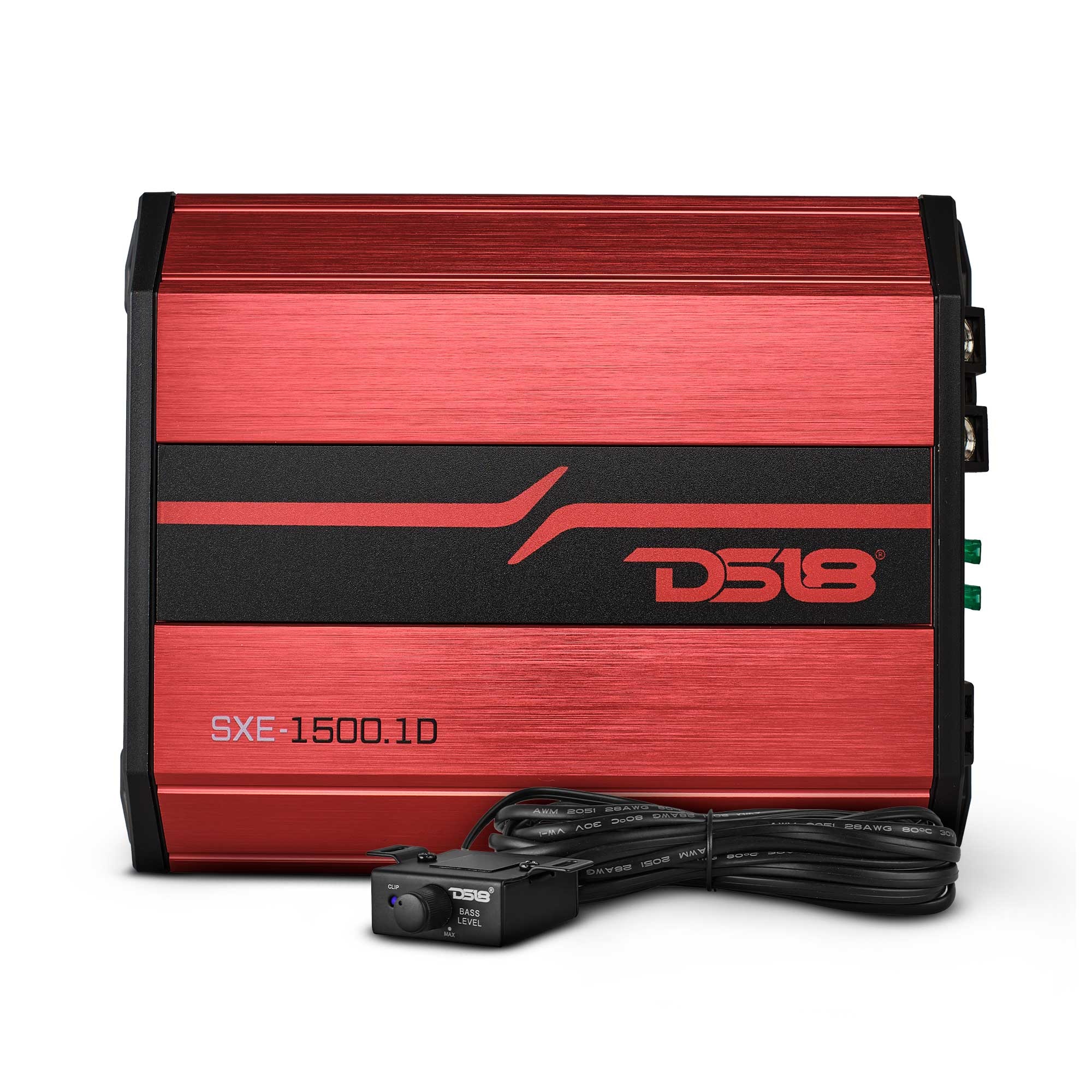

DS18 SXE-1500.1D/RD DS18 1500W 1CH AMP

Brand: DS18
|
In stock
Ordered before counting..., delivered tomorrow
Login for prices
Article code SXE1500.1
EAN 810097265240
Information

SXE Class D Monoblock Car Amplifier 1 x 500 Watts RMS @ 1 Ohm 1500 Watts

Key Features

  • Subwoofer Monoblock Amplifier
  • 1 Channel
  • Class D
  • 1 ~ 4 Ohm Stable
  • 1 x 500 Watts @ 1 Ohm
  • Compact Design



  DOWNLOAD THE USER MANUAL



SPECS

SKU
SXE-1500.1D
Total Watts (Peak)
1500W
RMS Power @ 4 ohm
200W
RMS Power @ 2 ohm
350W
RMS Power @ 1 ohm
500W



Audio

Frequency Response
10Hz-250Hz
Signal to Noise Ratio
90dB
Efficiency @ 4ohm
80%
Damping Factor
140
Input Impedance
20kΩ
Channel Separation
N/A
Total Harmonic Distortion (THD)
0.05%
Low Level Input Range
200mV-5V
High Level Input
No
Selectable X-Over
Fixed LPF
X-Over Filter Range
50-250Hz
Bass Boost Range
0-12dB
Bass Boost Frequency
45Hz
Infrasonic Filter
10-55Hz
Phase Selector
0-180°



Features

Amplifier Class
Digital (D)
Amplifier Type
Monoblock Subwoofer
Number of Channels
1
Minimum Impedance
1 Ohm
Led Indicator
Power/Protect/Clip
Power Input Terminal Size
4Ga
Fuse Size
2 x 30A (60A)
Remote Level Control
Yes
Cooling Fan
No
Voltmeter
No
Thermal Protection
Yes (70°)
Over-Load Protection
Yes
DC Output Protection
Yes
Short Circuit Output Protection
Yes
Voltage Input Protection
Yes (16.5v)
Clipping Protection
Yes
Body Color / Finish
Red / Black Brushed Aluminum



Measurement

Overall Length
7.68" / 195mm
Overall Width
5.5" / 140mm
Overall Height
1.8" / 48mm
Heatsink Length
6.18" / 157mm
Gross Single Unit Weight
1.4KG



Extra Features

Compact Size to easy Installation for Any Applications
Yes
Stable/Reliable Two or Four Layers Traces PCB Design
Yes
Surface Mount Component Technology
Yes
Quality Control Verification using Audio Precision Instruments
Yes
Remote Level Control with Clip Indicator
Yes
