X317-STG5 RF CAN-AM 17-UP KIT

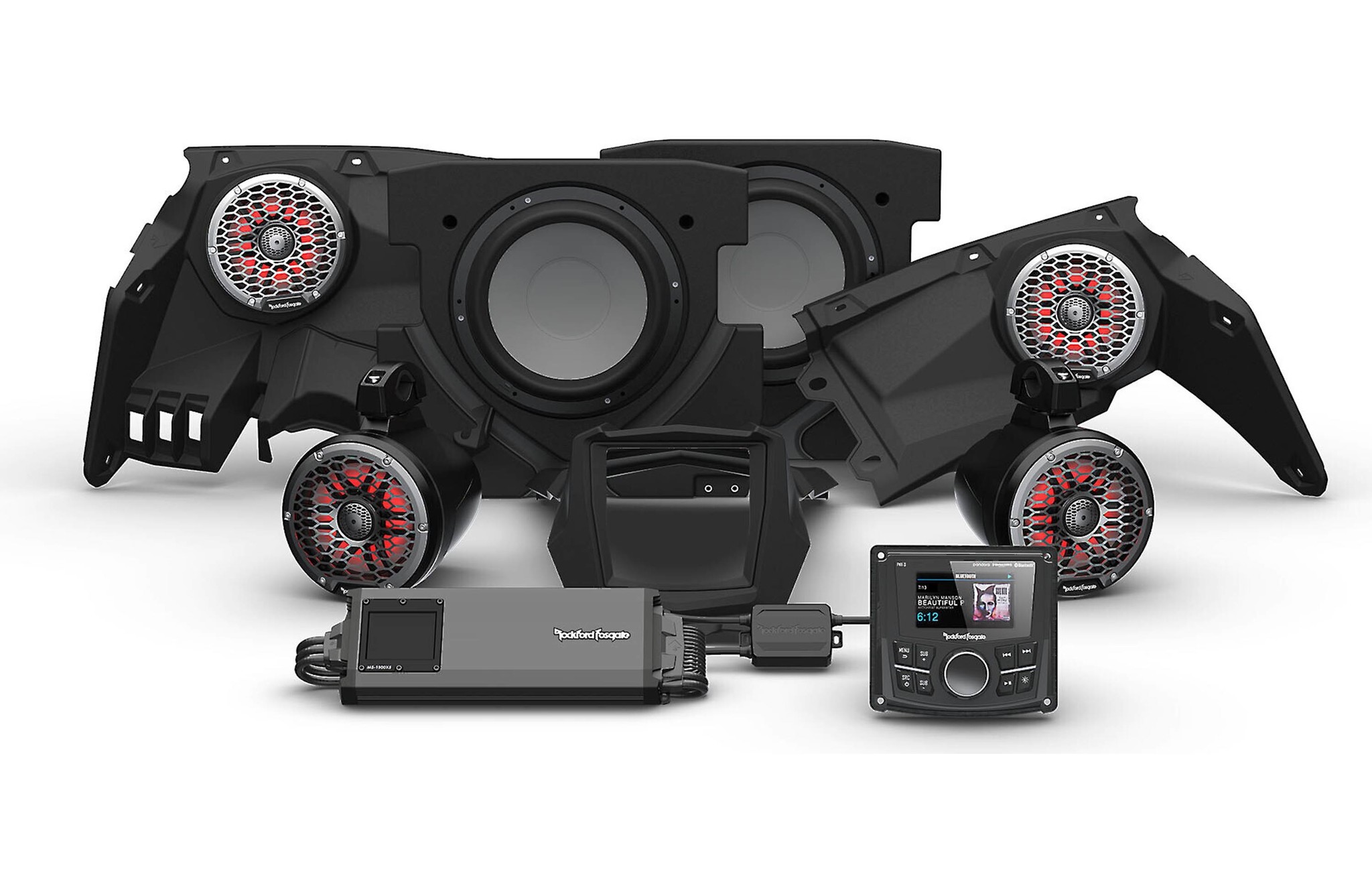

Stage 5 audio upgrade kit for select 2017-up Can-Am Maverick X3s: includes receiver, four 6-1/2" speakers, 5-channel amp, and two 10" subwoofers

Product highlights:

• Element Ready UTV system includes digital media receiver, two sets of 6-1/2" speakers, a 5-channel amp, and two 10" subwoofers
• also includes front and rear speaker pods, sub enclosures, a Color Optix controller, wiring, amp kit and mounting plate

Rockford Fosgate PMX-3 digital media receiver

• marine digital media receiver with camera input (does not play CDs)
• built-in amplifier (25 watts RMS CEA2006/50 peak x 4 channels)
• built-in Bluetooth for music streaming (will not make calls)
• USB port and aux input
• works with SiriusXM satellite radio tuner (sold separately)
• works with Apple and Android smartphones
• warranty: 2 years

Rockford Fosgate M2-65B 6-1/2" 2-way marine speakers

• power handling up to 150 watts RMS (600 watts max)
• injection-molded mineral-filled parabolic polypropylene cone
• 1" bridge-mounted tweeter
• warranty: 2 years

Rockford Fosgate M2WL-65MB 6-1/2" roll bar speakers

• power handling: 150 watts RMS (600 watts peak power)
• 360° rotational mounting capability for unlimited flexibility
• high-density sealed polyethylene enclosures with stainless steel grilles
• warranty: 2 years

Rockford Fosgate M1D2-10IB 10" marine subwoofer (pair)

• power handling: 400 watts RMS/1600 watts peak
• sensitivity: 90.3 dB
• selectable impedance: 1 or 4 ohms
• IP67 certification
• warranty: 1 year

Rockford Fosgate M5-1500X5 5-channel amp

• 100 watts RMS x 4 + 600 watts x 1 at 2 ohms
• 100 watts RMS x 4 + 400 watts x 1 at 4 ohms
• conformal-coated circuit board — suitable for power sports and marine applications
• top-mounted control panel with waterproof smoked lens
• warranty: 2 years

• Compatibility

  Vehicle Compatibility: The Rockford Fosgate X317-STG5 can be used with the following Can-Am Maverick vehicles:

  Make	Model	Year
  Can-Am	Maverick X3 Turbo	2017-2021
  	Maverick X3 Turbo R	2017-2021
  	Maverick X3 DS Turbo	2018-2021
  	Maverick X3 DS Turbo R	2018-2021
  	Maverick X3 X DS Turbo	2017-2020
  	Maverick X3 X DS Turbo RR	2018-2021
  	Maverick X3 RS Turbo R	2017-2021
  	Maverick X3 X RS Turbo	2017-2020
  	Maverick X3 X RS Turbo RR	2017-2021
  	Maverick X3 X MR Turbo²	2018-2021
  	Maverick X3 MR Turbo RR²	2018-2021
  	Maverick X3 X RC Turbo	2018-2021
  	Maverick X3 X RC Turbo RR¹	2018-2021
  	Maverick X3 MAX Turbo	2017-2020
  	Maverick X3 MAX Turbo R	2017-2020
  	Maverick X3 MAX DS Turbo	2018-2021
  	Maverick X3 MAX DS Turbo R	2017-2021
  	Maverick X3 MAX DS Turbo RR	2018-2021
  	Maverick X3 MAX RS Turbo R	2017-2021
  	Maverick X3 MAX X RS Turbo RR	2018-2021
  	Maverick X3 MAX X MR Turbo RR²	2018-2021

  ¹Front speakers require removal and reinstallation of Intrusion Bar.
  ²Snorkel obstruction (if applicable) prevents rear speakers from being mounted inside the roll-cage. If mounting on the outside, use caution as the speakers can be damaged by trees and other trail obstacles.
