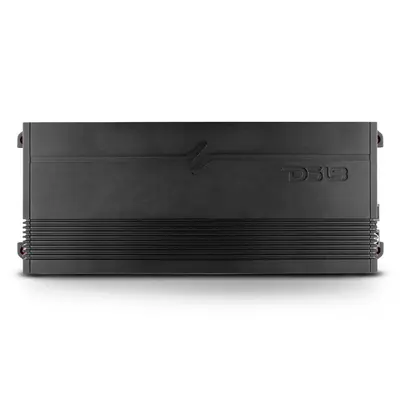

DS18 G3600.4D DS18 3600W 4CH MICRO AMP

Brand: DS18
|
In stock
Ordered before counting..., delivered tomorrow
Login for prices
Article code G3600.4D
EAN 810005189972
Information

GEN-X Full-Range Class D 4-Channel Amplifier | 4 x 300W RMS @ 4-Ohm

Key Features

  • 4 Channel Full Range
  • Class D
  • 2 ~ 4 Ohm Stable
  • 4 x 300 Watts @ 4 Ohm
  • Power/Protection/Clip Indicator
  • Built in Crossover

Technical Data - Manual

  DOWNLOAD THE USER MANUAL



SPECS

SKU
G3600.4D
Class
Digital (D)
Amplifier Type
4 CH Full Range
Channels
4 CH
Peak Power
3600W
RMS Power @ 4 Ohm/14.4V
4 x 300W
RMS Power @ 2 Ohm/14.4V
4 x 420W
RMS Power @ 4 Ohm/14.4V Bridged
2 x 740W
Minimum Impedance
2 Ohm St / 4 Ohm Bridge
Operation Voltage
9 - 15V



SPECS

Frequency Response
20Hz-20KHz
Signal/Noise Ratio
>90dB
Low Pass Filter
50Hz - 250Hz
High Pass Filter
50Hz - 250Hz
Subsonic
NO
Subsonic Frequency
N/A
Efficiency @ 4 Ohm
80%
Damping Factor
78
THD %
0.01
Input Sensitivity
0.25V - 6V
X-Over Filter Range
50 - 250Hz
Bass Boost Range
N/A
Bass Boost Frequency
N/A
Phase Selector
NO



SPECS

High Level Input
NO
Selectable X-Over
LPF/FLAT/HPF
Led Indicator
Power / Protection / Clip
Voltage Input Protection
Yes
Clipping Protection
Yes
Thermal Protection
Yes
Cooling Fan
No
Speaker Output Size
12GA
Power Input Size
4GA
Fuse Rating
120A
Remote Level Control
No
Body Color / Finish
Matte black



MEASUREMENTS

Product Weight (lb)
4.5
Product Dimensions L x W x H (Inches)
13.75 x 6.25 x 3.25
M/C Weight (lb)
29.5
M/C Dimensions L x W x H (Inches)
14 x 13 x 10.5
M/C Qty
6
Sold In
Single
