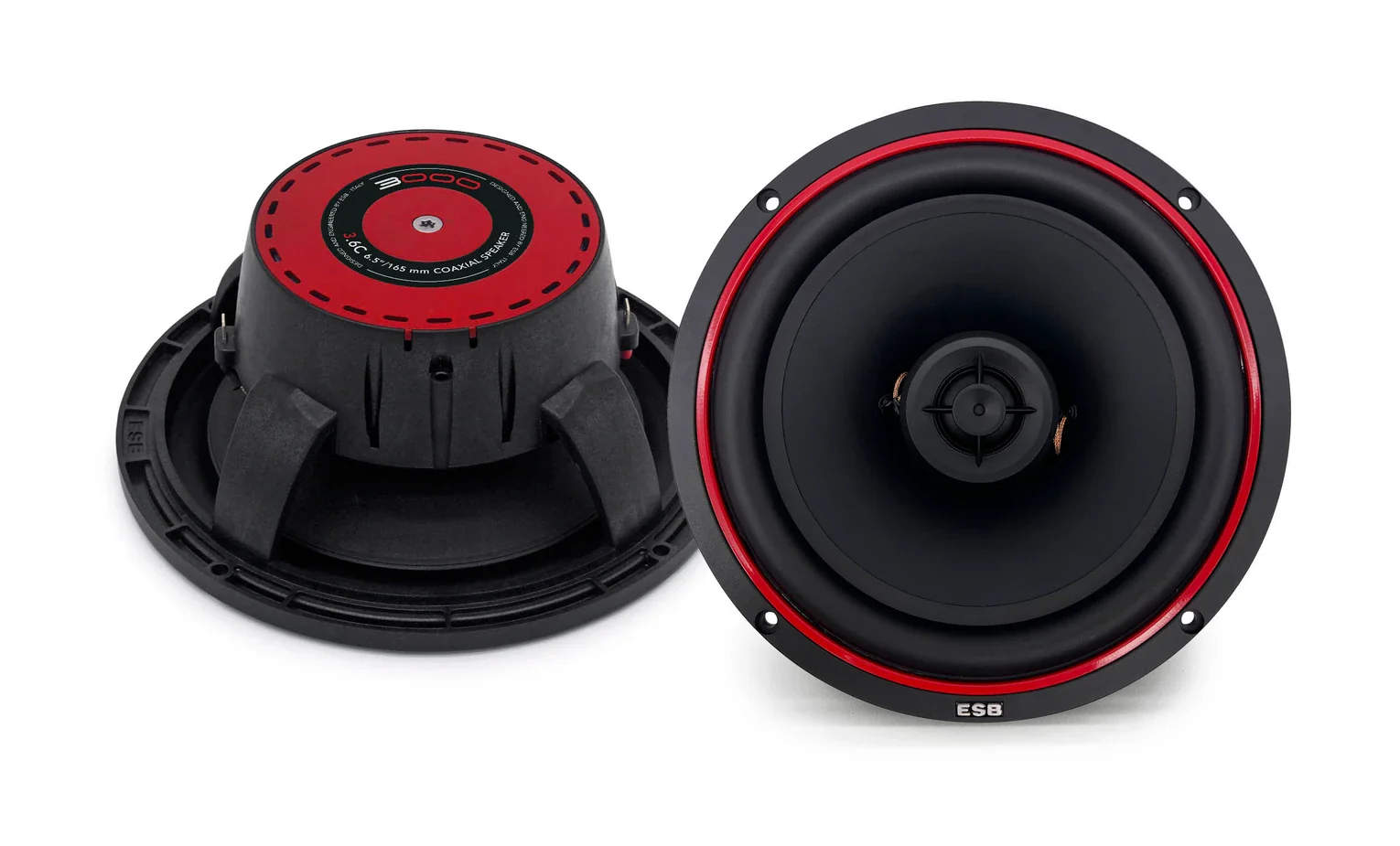

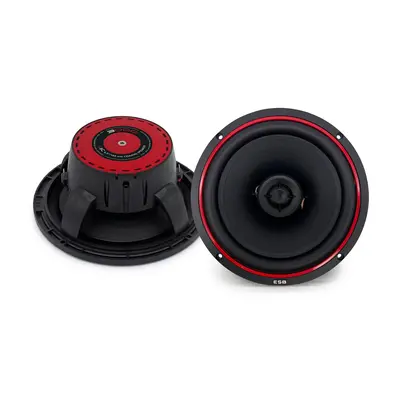

ESB Audio - 3.6C 6.5”/165 mm Coaxial

Speaker Type: Component Coaxial
Nominal Diameter: 6.5”/165 mm
Nominal Impedance (Znom): 4 Ohms
Continuous Power Handling: 80 W
Peak Power Handling: 160 W
Sensitivity: 88.5 dB @ 1W/1m
91.5 dB @ 2.83V/1m
Rec. Amplifier Power: 20 - 140W (RMS)
TWEETER PARAMETERS
Voice Coil Resistance (Re): 3.62 Ohms
Free Air Resonance (Fs): 1900 Hz
Electrical “Q” (Qes): 3.805
Mechanical “Q” (Qms): 2.219
Total Speaker “Q” (Qts): 1.402
WOOFER PARAMETERS
Voice Coil Resistance (Re): 3.11 Ohms
Free Air Resonance (Fs): 64.98 Hz
Reference Efficiency (no): 0,446 %
Electrical “Q” (Qes): 0.766
Mechanical “Q” (Qms): 3.026
Total Speaker “Q” (Qts): 0.611
Equivalent Compliance (Vas): 13.93 lt
Moving Mass (Mms): 11.63 g
Mech. Compliance (Cms): 0.516 mm/N
Magnetic Strength (BL): 4.39 N/A
Effective Piston Area (Sd): 132.7 sq. cm
One-Way Linear Excursion (Xmax): 3.25 mm
