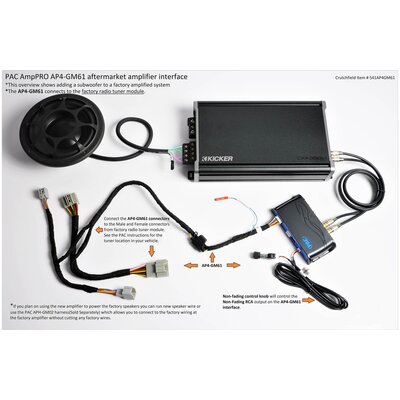

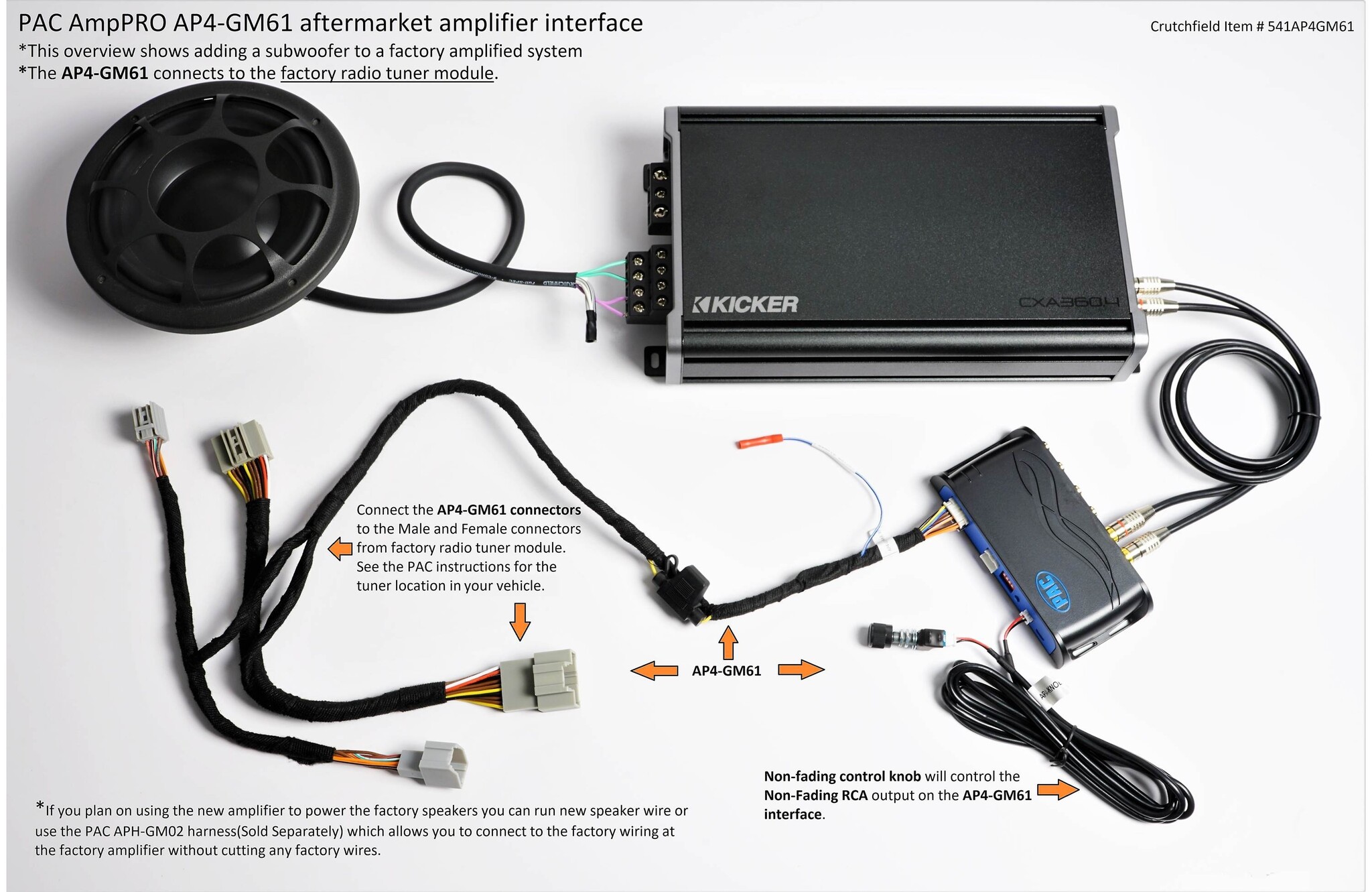

PAC AmpPRO AP4-GM61 Aftermarket Amplifier Interface

Product info:

• amplifier integration module and T-harness
  • add an aftermarket amplifier without removing factory amp
• works with select 2014-up GM vehicles with Bose sound system
• 6-channel RCA outputs (front, rear, subs)
• switchable 5- or 4-volt RMS output
• retains factory radio controls and audio features
• wired remote level control for sub channels
• remote turn-on lead for amplifiers
• AmpPRO PC App, available from PAC, lets you adjust minimum and chime volumes and 3-band EQ via your Windows-run PC
• optical digital output for high-end digital processors and amplifiers

• PAC AmpPRO AP4-GM61 Aftermarket Amplifier Interface owner's manual

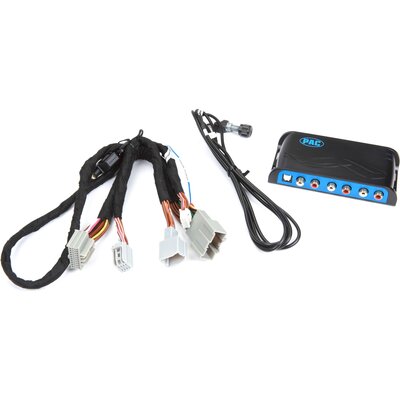

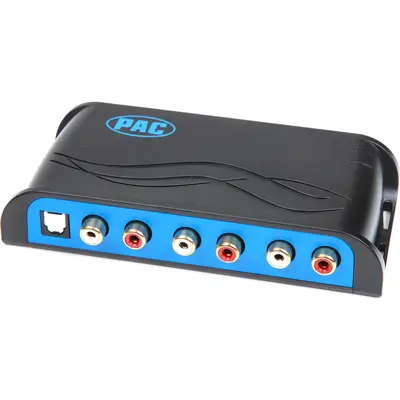

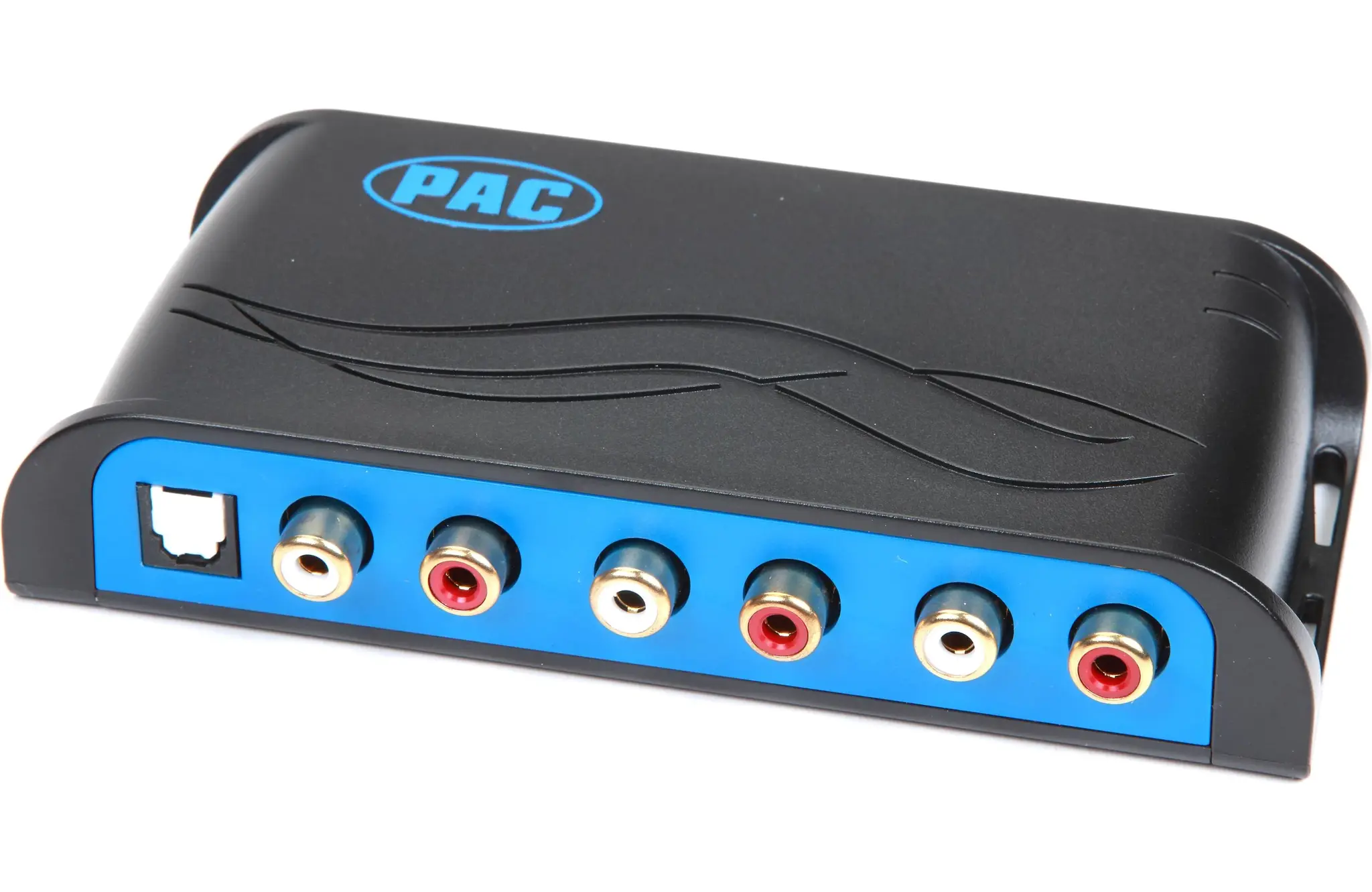

• Amplifier integration interface module
• T-harness
• 6' Rotary-knob cable
• Rotary-knob
• Installation Instructions

Today's modern vehicle audio systems are becoming increasingly more sophisticated and complex. PAC engineered AmpPRO to dramatically simplify the installation of upgraded amplifiers in data-bus-controlled amplified sound systems.



• Upgrade solution for factory, fixed level, data-bus controlled sound systems
• The time-saving design prevents the need for summing and audio correction devices.
• Variable volume, fade, balance, bass, mid, and treble audio settings
• Retains OnStar, Bluetooth, navigation, safety systems, and all warning chimes
• Front, rear, sub, and center channel preamp outputs (5 volt RMS)
• Provides full range, flat audio output for a solid audio foundation
• Customized OE bass, mid, and treble center frequency selection
• Plug-n-play installation
• Remote sub level controller INCLUDED
• Optional TOSLINK optical output INCLUDED

AP4-GM61 Manual

Firmware

NET WEIGHT (KG): 0.292

GROSS WEIGHT (KG): 0.365

• Must have BOSE factory sound system.
• Must have Infotainment system RPO code IO5 or IO6 to be compatible.
• To verify the "IO" RPO code on your vehicle, check the glove compartment or spare tire well for a silver sticker with these codes. If this sticker is not present, you must scan the QR code on the GM label found in the driver's door jamb. The RPO codes will be listed in alphabetical order in either scenario.
