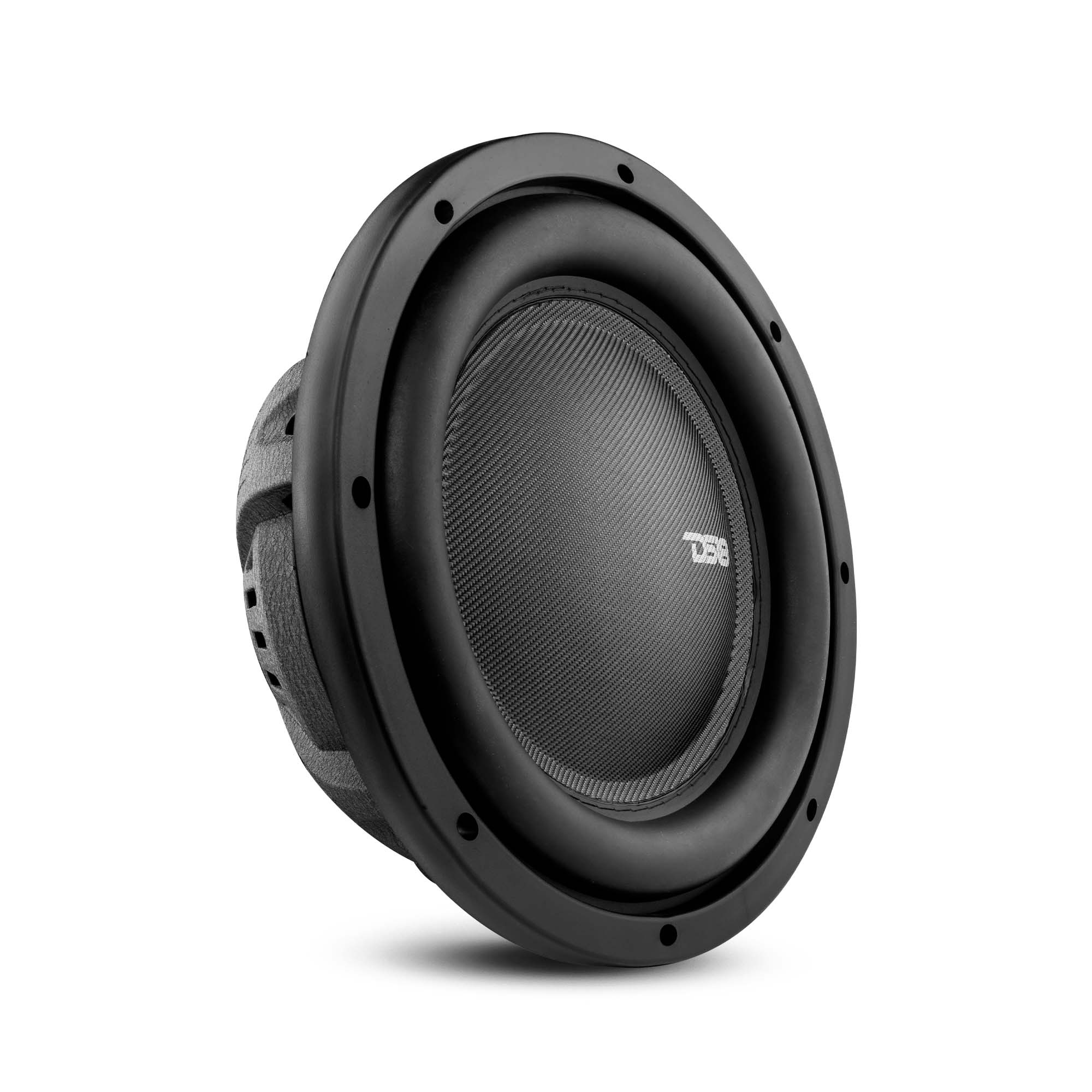

DS18 DS18 SHALLOW 12" 800W DVC SUB

Brand: DS18
|
In stock
Ordered before counting..., delivered tomorrow
Login for prices
Article code IXS12.4D
EAN 810005184281
Information

IXS Shallow-Mount 12" Fiber Glass Subwoofer 800 Watts Rms DVC 4-Ohm/ 2-Ohm

Key Features

  • 12" Shallow Subwoofer
  • MAX Power: 1600 Watts
  • RMS Power: 800 Watts
  • Impedance: 4-Ohm/2-Ohm 2.5" DVC
  • Ferrite Magnet
  • 85dB

SPECS

SKU
IXS12.4D
Nominal Diameter
12" / 304.8mm
Nominal Impedance
4+4 ohms
RMS Power Handling
800W
Maximum Power Handling
1600W
Sensitivity (1w/1m)
85 dB
Frequency Response
20 - 600 Hz
Recommended Lo Pass Crossover
80 Hz



MOTOR

Voice Coil Diameter
2.5" / 63.5mm
Voice Coil Former Material
Aluminum
Winding Material
Copper
Cone Material
Paper
Dust Cap Material
Fiberglass
Surround Material
Stitched rubber
Basket Material
Aluminum
Basket Color/Finish
Corrugated Black
Magnet Material
Ferrite
Magnet Weight
62 Oz
Displacement Volume
0.93L / 0.033ft3



THIELE & SMALL PARAMETERS

Equivalent Volume Vas
37.3L / 1.31ft3
Free Air Resonance Fs
33 Hz
Mechanical Factor Qms
4.034
Electrical Factor Qes
0.861
Total Factor Qts
0.71
Moving Mass Mms
184 g
Compliance Cms
104 mm/N
Bl Factor BI
18.75
Voice Coil Inductance Le
7.07 mH
Diaphragm Area Sd
494.81 cm2
DC Resistance Re
3.6+3.6 ohms
Efficiency Bandwidth Product EBP
40.6



RECOMMENDED ENCLOSURES

Sealed Internal Volume (minimum)
28L / 1ft3
Sealed Box Output Response F3
40Hz



MEASUREMENT

Overall Diameter
12.6" / 320 mm
Overall Depth
5" / 129 mm
Front Mount Baffle Cutout
10.79" / 274 mm
Mounting Depth
4.33" / 110 mm
Motor Diameter
6.3" / 160 mm
Gross Single Unit Weight (lb)
16.5
Single Unit Box Dimensions W x L x H (Inches)
13.25 x 13.5 x 6.5
Quantity of Units in Master Carton
2
Gross Master Carton Weight (lb)
34
Master Carton Dimensions W x L x H (Inches)
14 x 14 x 14
