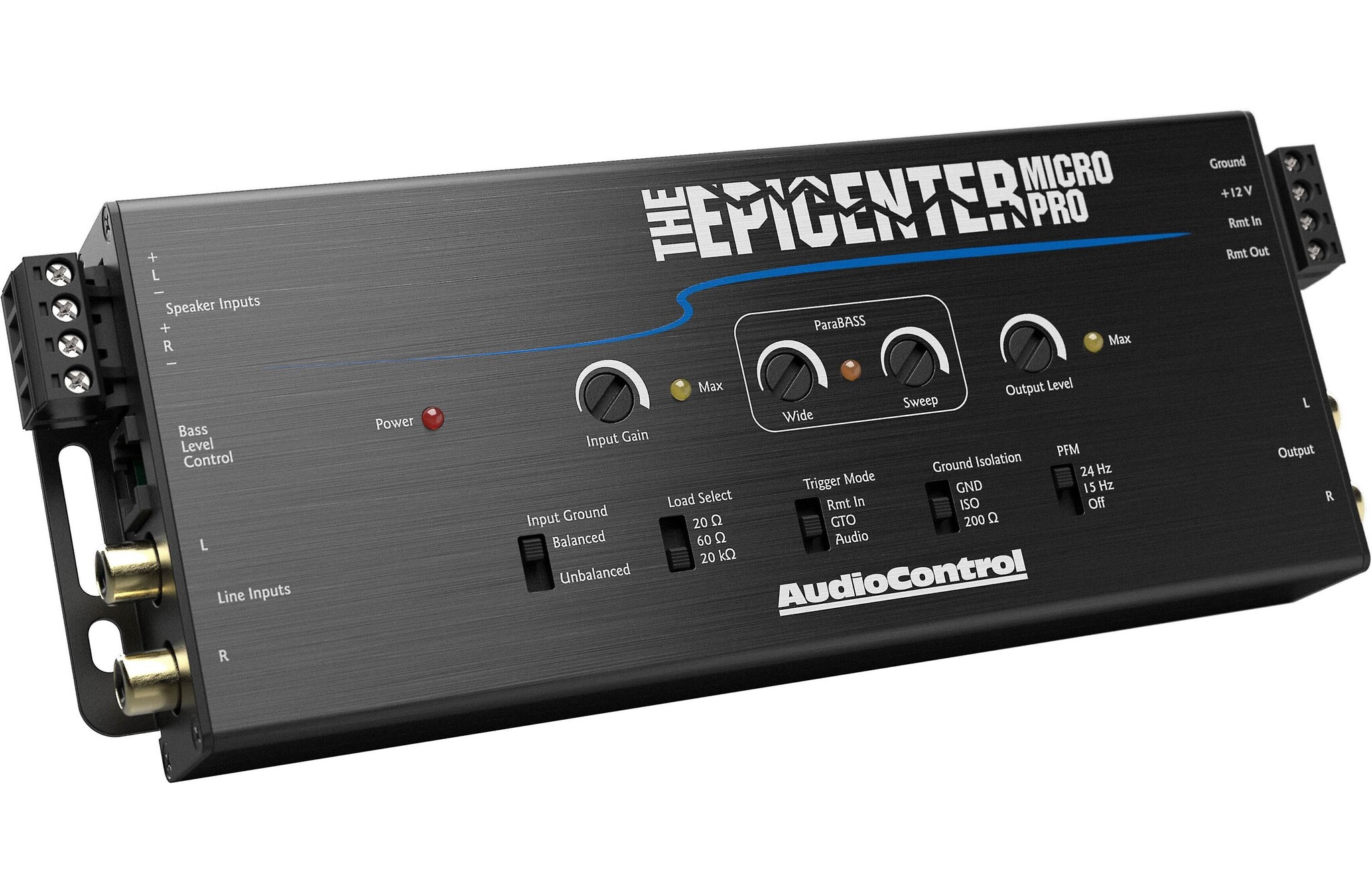

AudioControl The Epicenter® Micro PRO

Bass restoration processor and line output converter

Product highlights:

• 2-channel line driver/output converter with bass restoration
• works with factory and aftermarket systems
  • selectable ground isolation modes: GND, ISO, 200-ohm
• preamp and speaker-level inputs
  • selectable input signal grounding: balanced, unbalanced
  • variable input gain control with Max indicator light
  • speaker-level inputs handle up to 40V (400 watts RMS)
  • selectable speaker input impedance loads: 20, 60, or 20k ohms
• Epicenter bass restoration
  • recreates missing low-frequency signal content
  • Para-Bass controls adjust center-frequency and width of bass processing
  • selectable Programmable Frequency Match (PFM) 12 dB/octave subsonic filter: off, 15 Hz, 24 Hz
• variable output gain control with Max indicator light
  • outputs up to 9.5 Vrms
• selectable maximum output peak voltage limiter: 5V, 7.5V, 10V

More info:

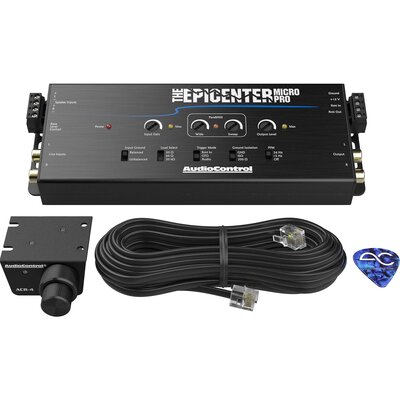

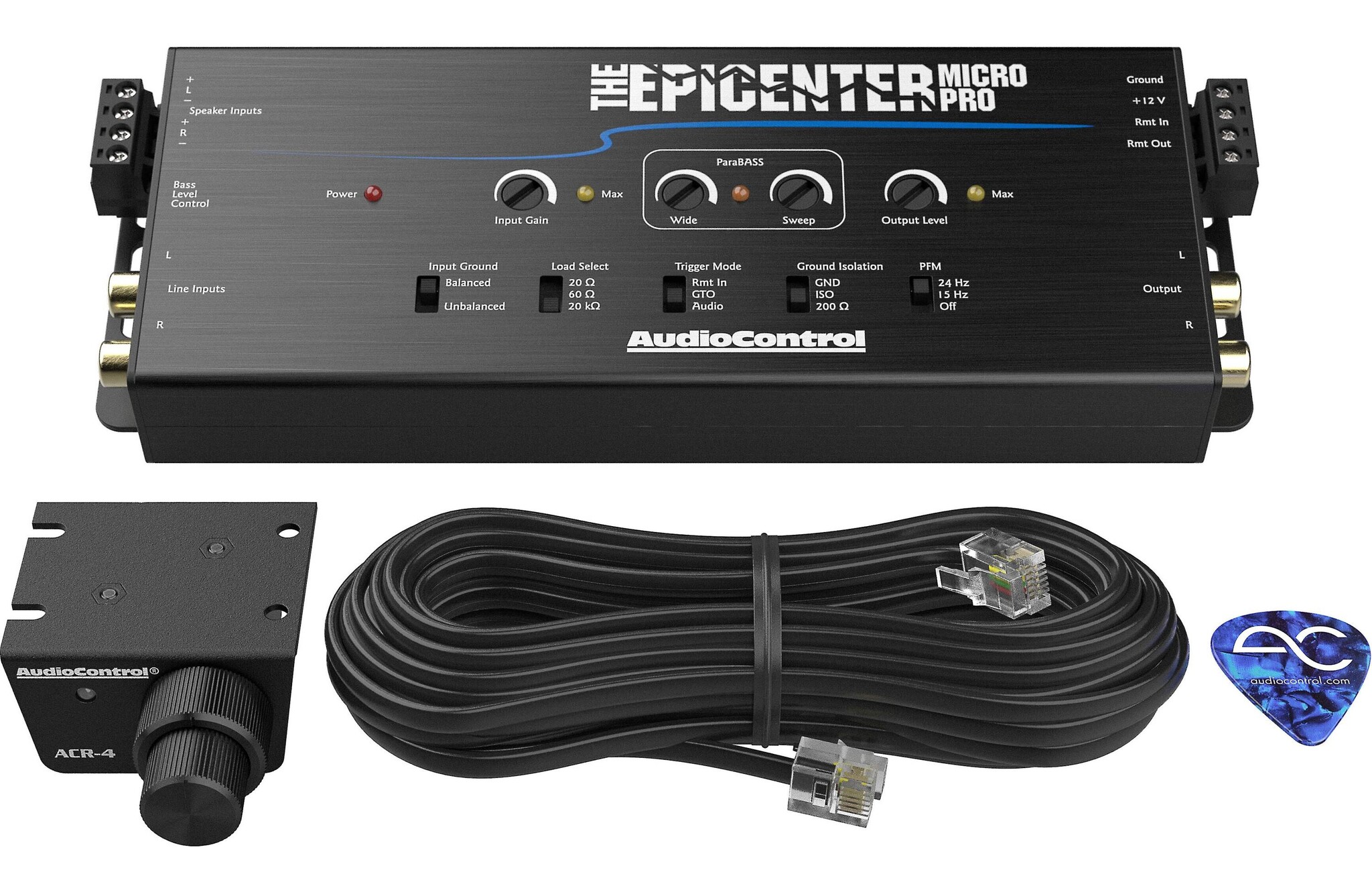

• ACR-4 wired remote included
• selectable turn-on trigger modes: 12V remote, DC offset (GTO), audio signal detect
  • remote 12V trigger output
• wiring, fuse, and hardware not included with device
  • 18-gauge power and ground leads and a 1-amp fuse recommended
• dimensions: 8" W x 1" H x 3" D
