EPICENTER PRO AUDIOCONTROL BASS PROCESSOR
| Article code | EPICENTER PRO |
| EAN | 810194210112 |

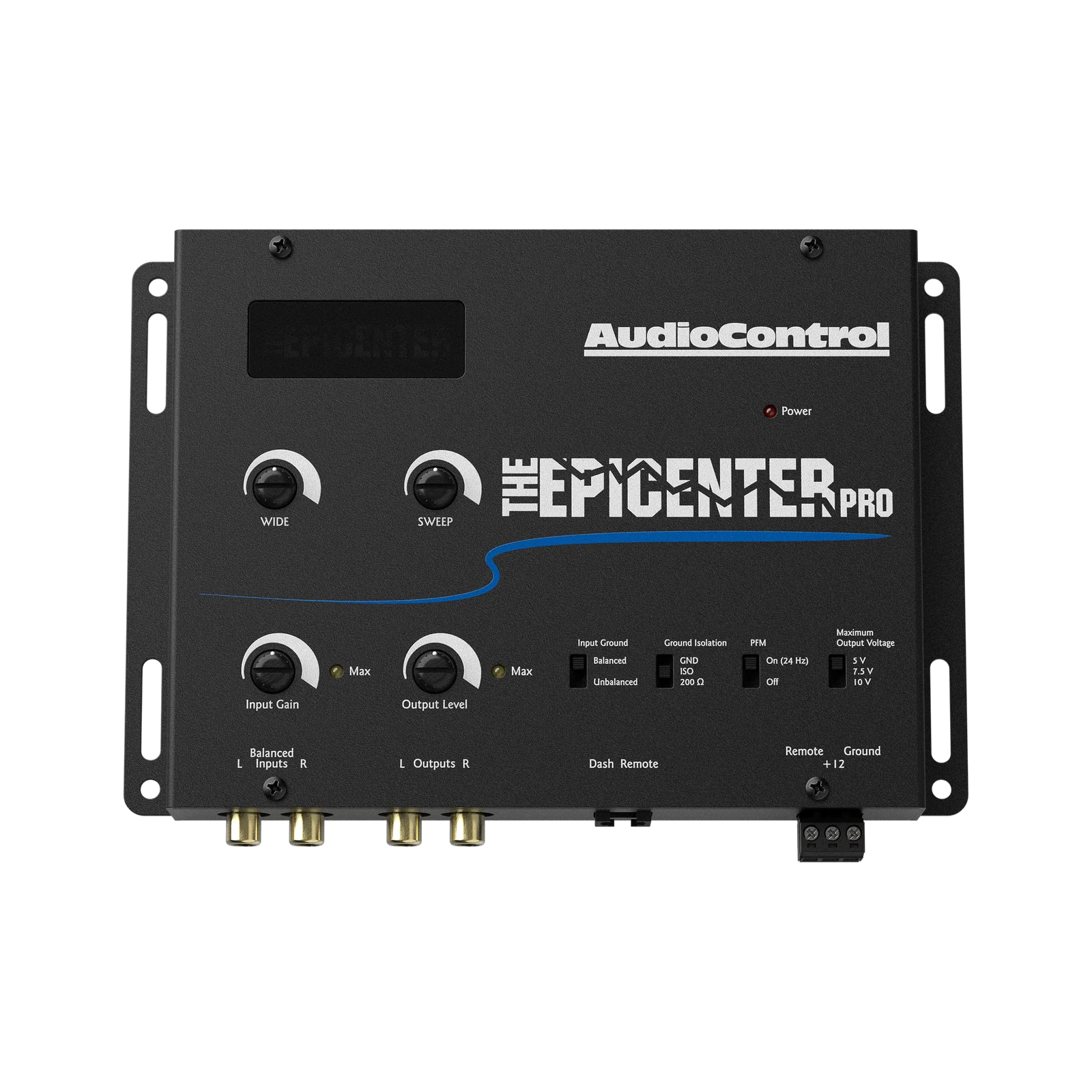

The EPICENTER PRO Bass Restoration Processor & Line Driver
FEATURES
• AudioControl’s Original Digital Bass Restoration Circuit: Restore missing low notes and transform flat audio into rich, powerful bass you can truly feel.
• Powerful Line Driver: Provides an ultra-clean, high-voltage signal, eliminating noise and maximizing the performance potential of your aftermarket amplifiers.
• Selectable Output Voltage: Precisely match the signal output to your amplifier's input stage to achieve maximum clean power and optimal gain structure.
• ParaBASS Controls: Gain surgical control over your bass by adjusting the center frequency, width, and level of the bass boost, perfectly tailoring the low-end to your vehicle's acoustics.
• Selectable Subsonic Filter: Protect your subwoofers from damaging, inaudible ultra-low frequencies while focusing amplifier power on the bass you can actually hear and feel.
• Balanced Inputs: Helps eliminate electrical interference and hum, delivering crystal-clear sound even in noisy car environments.
• Dynamic LED Display: A responsive, eye-catching visual indicator that shows exactly how much bass restoration is happening in real-time.
• ACR-4 Dash Remote Included: Gives you instant, fingertip control over the bass level from your dashboard, allowing you to dial the thump up or down safely while driving.
SPECIFICATIONS
INPUTS
- Maximum Line Level Input: 10Vrms
- Line Level Input Impedance: 7kΩ
OUTPUTS
- Maximum Output Level (THD<1%): 9Vrms, 13V peak
- Output Impedance: 150Ω
PERFORMANCE
- Total Harmonic Distortion: 0.03%
- Signal to Noise: >105 dB
- Frequency Response: 10 Hz – 22 kHz ±1 dB
- PFM Filter (High Pass): Selectable 24 Hz or Bypass
GENERAL
- Power Supply: High Headroom PWM Switching
- Current Draw: 300 mA
- Recommended Fuse Rating: 1 A
WEIGHTS & DIMENSIONS
- Dimensions: 8″L x 5.5″D x 1.2″H
- Weight: 1.7 lbs

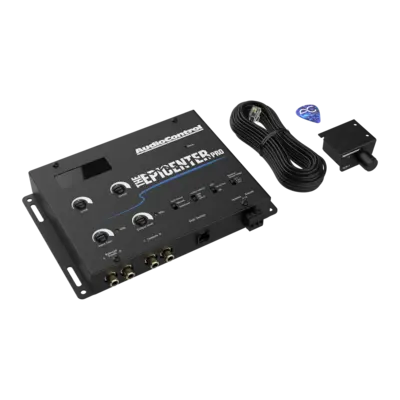

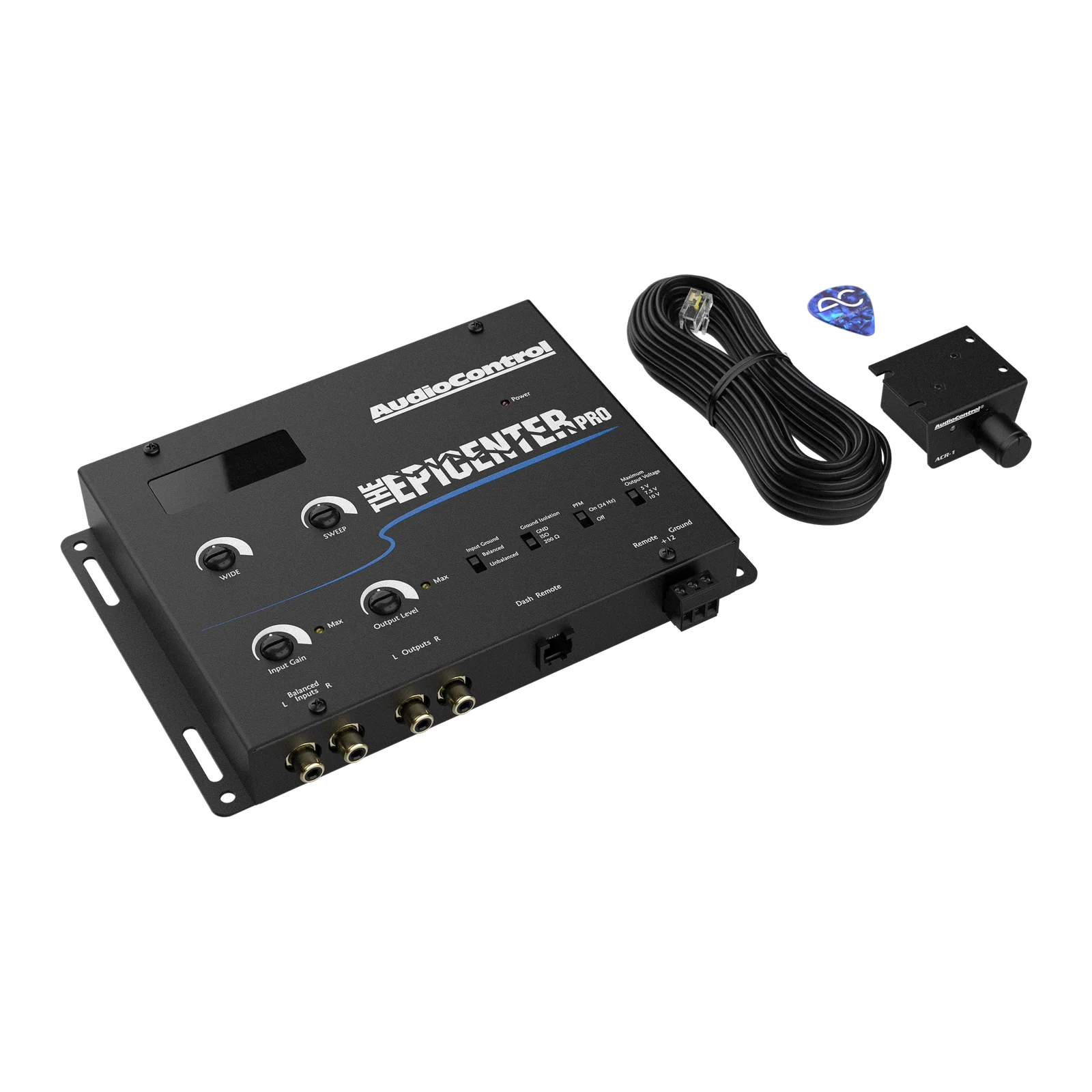

IN THE BOX: The EPICENTER PRO, ACR-4, Remote Cable, User Manual
