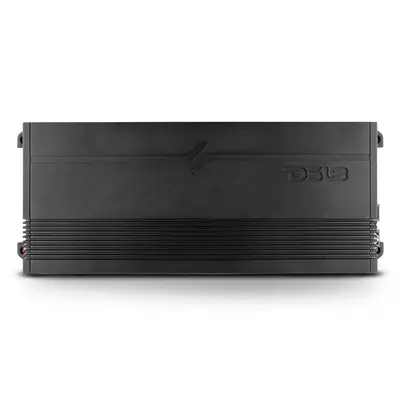

DS18 G3600.6D DS18 1200W 6CH AMP

Brand: DS18
|
In stock
Ordered before counting..., delivered tomorrow
Login for prices
Article code G3600.6D
EAN
Information

GEN-X 6-Channel Class D Full Range Amplifier | 6 x 200W @ 4-Ohm

Key Features

  • 6 x 200W  @ 4-Ohm / 6 x 250Ws @ 2-Ohm / 3 x 500W @ 4-Ohm Bridge
  • Full Range Class D
  • Variable Crossover
  • 2 St- 4-Ohm Bridge
  • Power/Protection/Clip Indicator/Remote Level Control

Technical Data - Manual

  DOWNLOAD THE USER MANUAL



Power

Total Watts (Peak)
3600W
RMS Power @ 4 ohm
6 x 200W
RMS Power @ 2 ohm
6 x 250W
RMS Power @ 1 ohm
-
RMS Power @ 4 ohm Bridge
3 x 500W



Audio

Frequency Response
20Hz-20KHz
Signal to Noise Ratio
>90dB
Efficiency @ 4ohm
75%
Damping Factor
75
Input Impedance
22K
Channel Separation
57dB
Total Harmonic Distortion (THD)
0.01%
Low Level Input Range
0.25-6V
High Level Input
No
Selectable X-Over
Variable HPF / HPF-BPF-FULL (5/6CH)
X-Over Filter Range
HPF:10-250Hz / LPF:50-250Hz
Bass Boost Range
0-12dB
Bass Boost Frequency
Fixed @ 45Hz
Infrasonic Filter
N/A
Phase Selector
No



Features

Amplifier Class
Digital (D)
Amplifier Type
Full Range
Number of Channels
6CH
Minimum Impedance
2ohm St / 4ohm Bridge
Led Indicator
Power / Protection / Clip
Power Input Terminal Size
4ga
Fuse Size
3 x 40A
Remote Level Control
Yes
Cooling Fan
No
Voltmeter
No
Thermal Protection
Yes
Over-Load Protection
Yes
DC Output Protection
Yes
Short Circuit Output Protection
Yes
Voltage Input Protection
Yes
Clipping Protection
Yes
Body Color / Finish
Matte black



Measurement

Overall Length
12.8" / 325mm
Overall Wide
4.72" / 120mm
Overall Height
1.96" / 50mm
Heatsink Length
10.9" / 278mm
Gross Single Unit Weight
2.2KG



Extra Features

Input Selector
Yes (2ch/4ch/6ch)
Compact Size for Easy Installation
Yes
Stable/Reliable Two or Four Layers Traces PCB Design
Yes
Surface Mount Component Technology
Yes
Quality Control Verification using Audio Precision Instruments
Yes
