Back to Home | GTX2/BK DS18 NEO 3" 120W PRO BULLET TWEETER

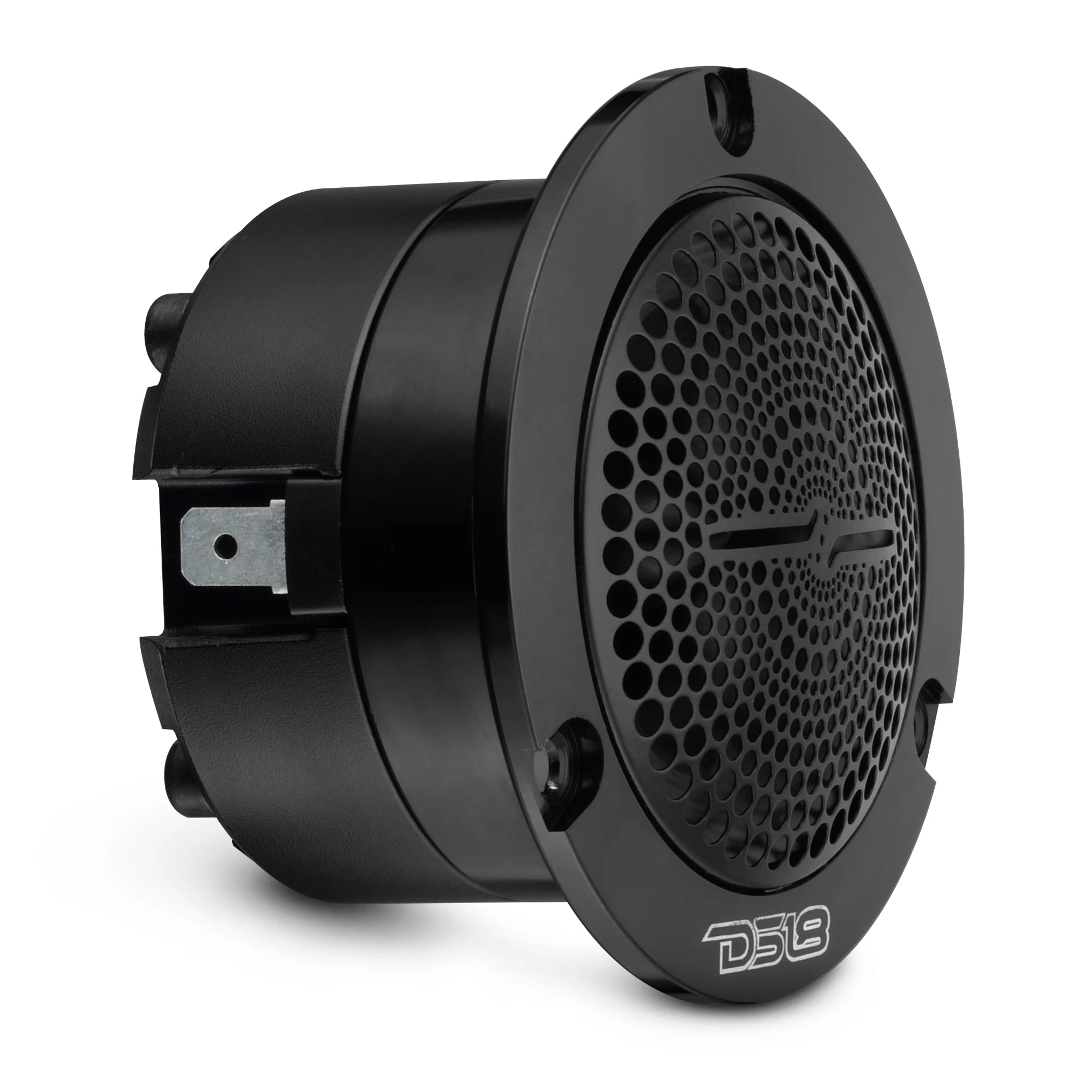

DS18 GTX2/BK DS18 NEO 3" 120W PRO BULLET TWEETER

Brand: DS18
|
In stock
Ordered before counting..., delivered tomorrow
Login for prices
Add to favorites
Article code GTX2
EAN 810097268302
Information

3” Super Bullet Tweeter with 1” Titanium Voice Coil and Neodymium Magnet | 120W RMS 4-Ohm

Key Features

  • 1" Titanium Voice Coil for ultra-clean, high-volume treble
  • Compact 3" Super Bullet Tweeter with lightweight neodymium magnet
  • High Power Handling: 60W AES, 120W program, 240W peak
  • Ultra-Slim Fit: 1.46" mounting depth for versatile custom installs
  • Wide Frequency Range from 650Hz–20kHz for crisp mid-high and high-frequency coverage

Technical Data - Manual

  DOWNLOAD THE USER MANUAL



Specifications

Nominal Diameter
3" / 76mm
Nominal Impedance
4 Ohms
AES Power Handling
60W
Program Power Handling
120W
Peak Power Handling
240W
Sensitivity (1w/1m)
100dB
Frequency Response
650Hz-20KHz
Recommended Hi Pass Crossover
2KHz
Pair or Single
Single



Motor

Voice Coil Diameter
1" / 25.4mm
Voice Coil Former Material
KSV
Winding Material
CCAW
Diaphragm Material
Titanium
Magnet Material
Neodymium
Magnet Size
38x14mm
Body Material
Aluminum
Body Color / Finish
Black

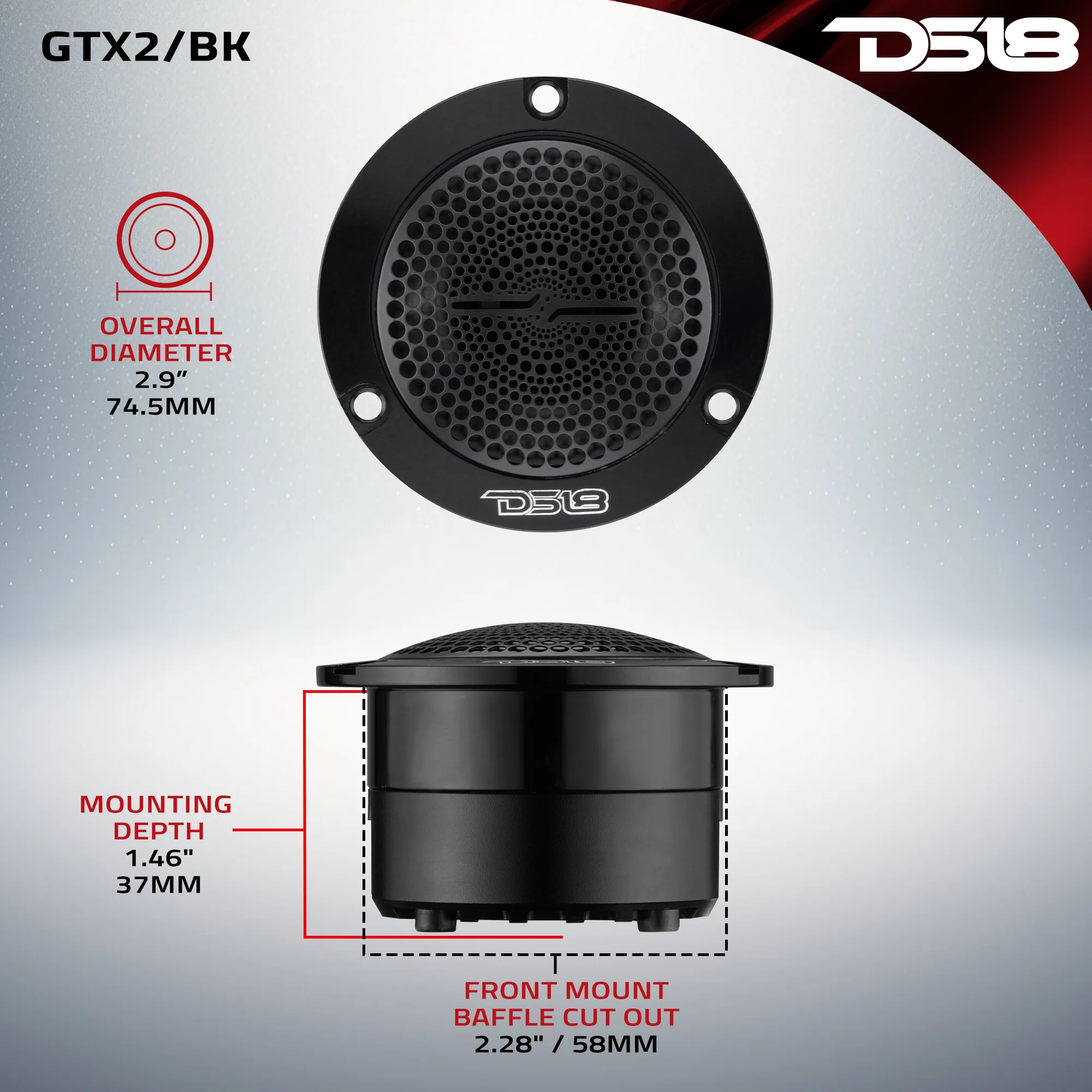

Measurement

Overall Diameter
2.9" / 74.5mm
Overall Depth
1.8" / 48mm
Front Mount Baffle Cutout
2.28" / 58mm
Mounting Depth
1.46" / 37mm
