Made to work together

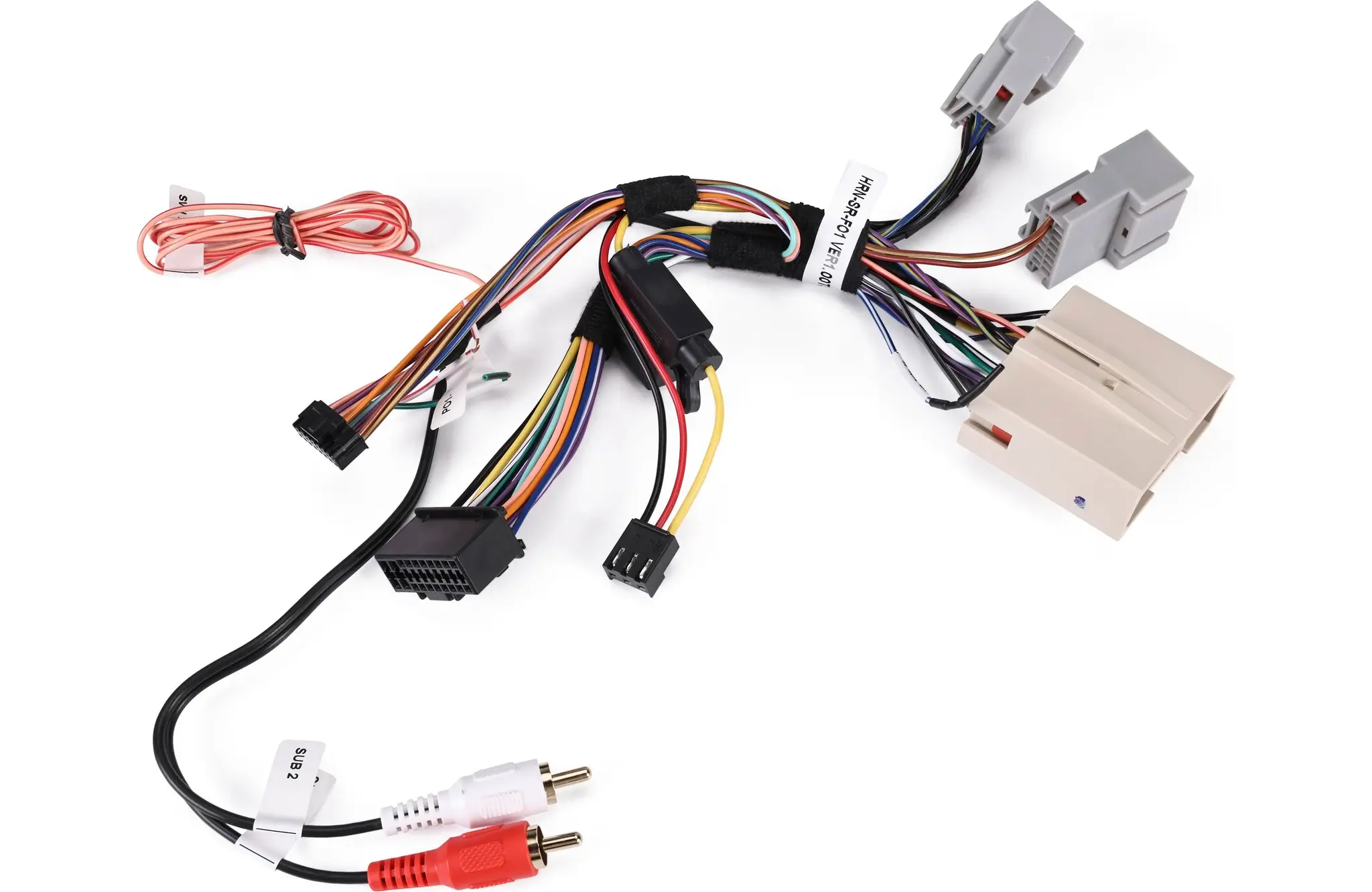

iDatalink's HRN-SR-FO1 wiring adapter works in conjunction with iDatalink's Maestro ADS-MSR module, allowing you to connect a new car stereo in select 2006-16 Ford, Lincoln, Mercury, and Mazda vehicles. Once connected, you'll retain your vehicle's steering wheel audio controls, factory amplifier, and retained accessory power (RAP). The adapter also provides 12V accessory power and an illumination output, along with the parking brake, reverse, Vehicle Speed Sense (VSS) outputs required for navigation receivers.

If you're buying a compatible iDatalink-ready car stereo, you'll also gain the ability to add front and backup cameras and enable automatic switching between the two views.

The package includes connectors that plug in between the Maestro module and your factory radio's wiring plugs.

This harness features an in-line head-unit connector harness, which will plug into iDatalink's new "Head-unit direct" harnesses for select radio brands. If you're installing a radio that doesn't work with a "Head-unit direct" harness, you simply cut off the plug and connect the wires to the harness included with your new radio.

Installation Note: The HRN-SR-FO1 adapter must be used with the iDatalink Maestro ADS-MSR module to connect any new car stereo to your 2006-16 Ford, Lincoln, Mercury, or Mazda vehicle.
