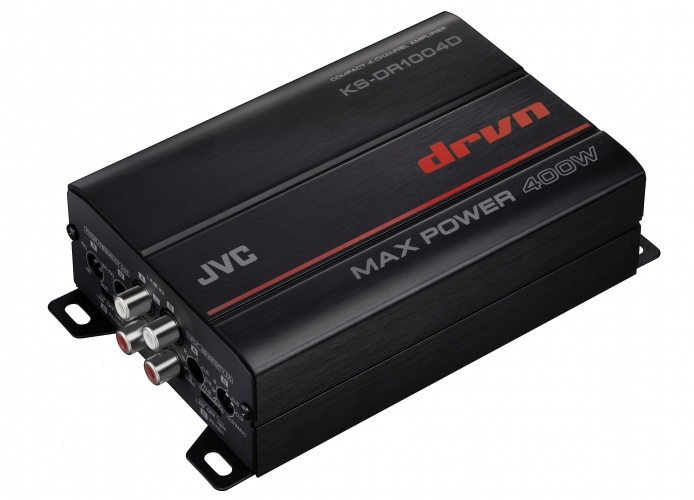

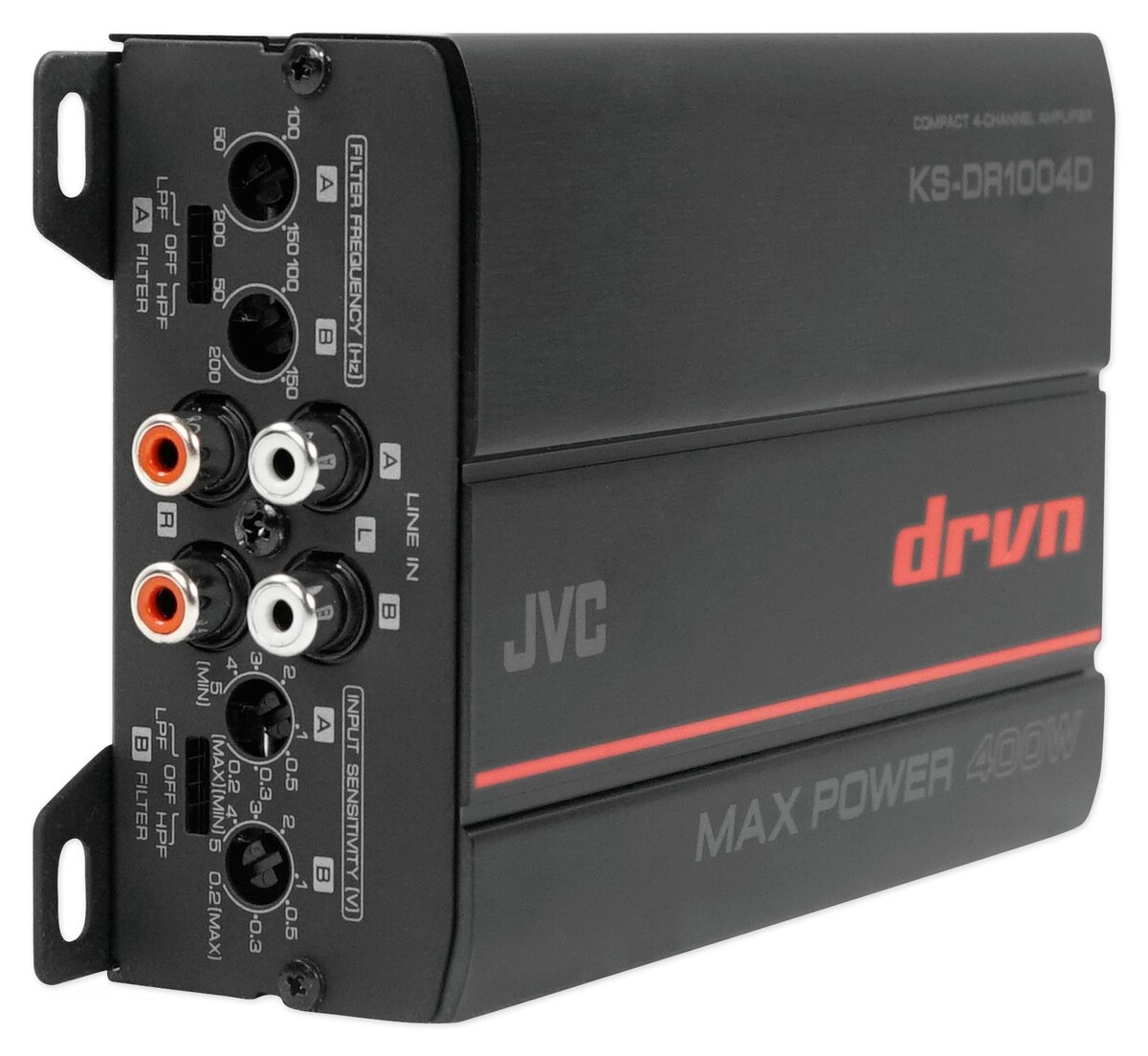

KS-DR1004D JVC MARINE 4 CH AMP

Specifications:

Amplifier

• Maximum Power Output 400W
• RMS Power Output (4 ohm) [ 1% THD 14.4V] 45W x 4 (20 - 20,000Hz)
• RMS Power Output (2 ohm) [ 1% THD 14.4V] 45W x 4 (1,000Hz)
• RMS Power Output (Bridged 4 ohm) [ 1% THD 14.4V] 90W x 2 (1,000Hz)
• Class Class-D
• Signal-to-Noise Ratio (reference: 1W into 4 ohms), CEA-2006 Compliant > 82dB

Load Impedance

• Load Impedance Allowance 2 - 8 ohms
• HPF 50Hz - 200Hz (-12dB/oct)
• LPF 50Hz - 200Hz (-12dB/oct)
• RCA Input Ach L/R, Bch L/R
• High Level Input (Speaker Level Input) Yes
• High Level Input Auto Power Control (Signal Sensing Turn On) Yes
• Input Sensitivity 0.2 - 5V
• Dimensions (W x H x D) 145 x 45 x 99 mm (5-11/16" x 1-3/4" x 3-7/8")
• Weight 0.7kg (1.5lbs)
