Power RMS @ 13.4 V (≤1% THD+N)
Watt @ 4 Ohm 4 x 80
Watt @ 2 Ohm 4 x 135
Watt @ 4 Ohm bridged 2 x 270
Power RMS (DHR)*
Watts @ 2 Ohms per channel 170
Frequency Range 10 - 40000 Hz @ -1 dB
Signal-to-noise Ratio > 99 dB
THD+N @ 5 W < 0.02 %
Input Sensitivity 425 mV - 8.0 V

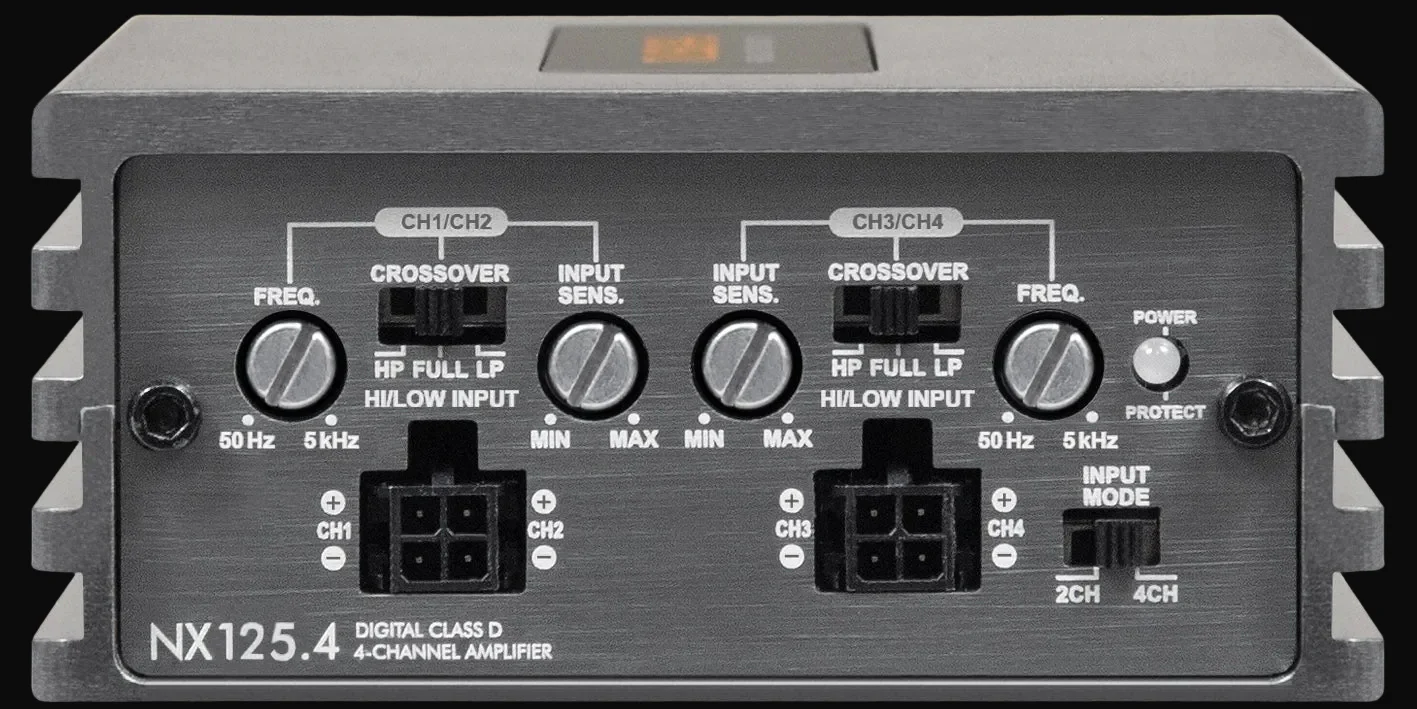

Filter Section CH1/CH2
Low Pass Filter or High Pass Filter 50 - 5000 Hz
Filter Section CH3/CH4
Low Pass Filter or High Pass Filter 50 - 5000 Hz
Operating Voltage 8.5 - 16.5 V (max. 5 sec. down to 7 V)
Start-stop Capability: Yes
High Level Input with EPS: Type D
Auto Turn-on: Yes
Bass Level Remote Controller CH3/CH4: NA
Fuse (external): 50 A
Dimensions
Width 89 mm
Height 41 mm
Length 148 mm
