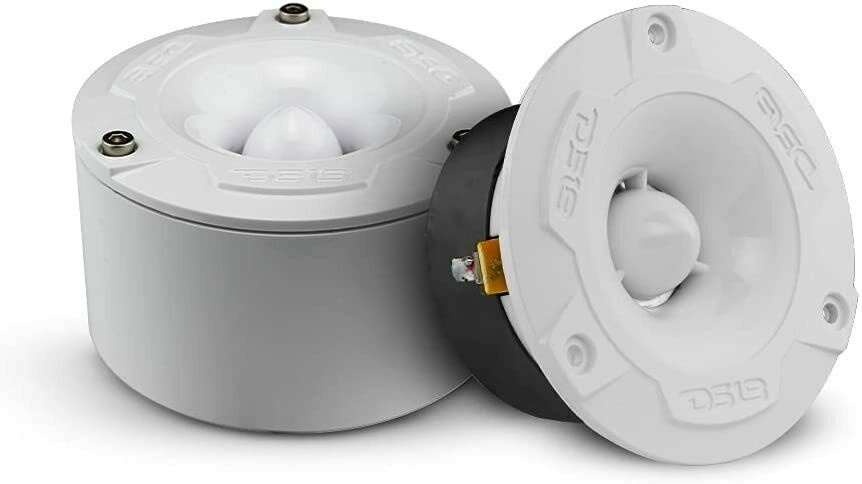

NXL-T1 DS18 1" WATER RESISTANT TWEETER
Brand:
DS18
|
| Article code | NXL-T1 |
| EAN | 810005188814 |
Information
DS18 HYDRO NXL-T1 Marine Water Resistant 3.8" Super Bullet Tweeter 240 Watts 1" Aluminum 4-Ohm
| Nominal Diameter | 3.75” / 95.2 mm |
| Nominal Impedance | 4 Ohms |
| AES Power Handling | 60W |
| Program Power Handling | 120W |
| Peak Power Handling | 240W |
| Sensitivity (1w/1m) | 103dB |
| Frequency Response | 3KHz-20 KHz |
| Recommended Hi Pass Crossover | 2 KHz |
| Pair or Single | Single |
| Marine Grade Type | IP36 |
| UV & Salt Protection | Yes |
| MOTOR | |
| Voice Coil Diameter | 1”/25.4 mm |
| Voice Coil Former Material | Kapton |
| Winding Material | CCAW |
| Diaphragm Material | Aluminum |
| Magnet Material | Ferrite |
| Magnet Weight | 8 Oz |
| Body Material | ASA |
| MEASUREMENTS MODE 1 | |
| Overall Diameter | 3.78" / 96 mm |
| Overall Depth | 1.78” / 45 mm |
| Front Mount Baffle Cutout | 2.72" / 70 mm |
| Mounting Depth | 1.57” / 40 mm |
| MEASUREMENTS MODE 2 (WITH ENCLOSURE) | |
| Overall Diameter | 3.78" / 96 mm |
| Overall Depth | 2.26" / 57.4 mm |
