SPECS

SKU
NXL-X1500.1FR
Total Watts (Peak)
3000W
RMS Power @ 4 ohm
1 X 700W
RMS Power @ 2 ohm
1 X 1000W
RMS Power @ 1 ohm
1 X 1500W

AUDIO

Frequency Response
10Hz-250Hz
Signal to Noise Ratio 1W @ 4?
>81dB
Efficiency @ 4 ohm
92%
Input Impedance
20K OHM
Total Harmonic Distortion (THD)
<0.05%
Low Level Input Range
200mV-5V
Selectable X-Over
Band-Pass
X-Over Filter Range
LPF: 50Hz-20KHz / HPF: 10Hz-500Hz
Bass Boost Range
0-18dB
Bass Boost Frequency
42Hz
Phase Selector
0-180

FEATURES

Amplifier Class
Digital
Amplifier Type
Full Range
Number of Channels
1
Minimum Impedance
1 Ohm
Led Indicator
Power | Protection | Clip
Power Input Size
4GA Tinned OFC
Fuse Size
150A
Thermal Protection
Yes (75C)
Over-Load Protection
Yes
Short Circuit Output Protection
Yes
Voltage Input Protection
Yes (7-16V)
Body Color | Finish
Black Brushed Aluminum

EXTRA FEATURES

Waterproof Rating
IP67
UV / Salt Fog Protection
Yes
Direct Power Harness Design
Yes
Quick Connect Plug
Yes
Surface Mount Component Technology
Yes

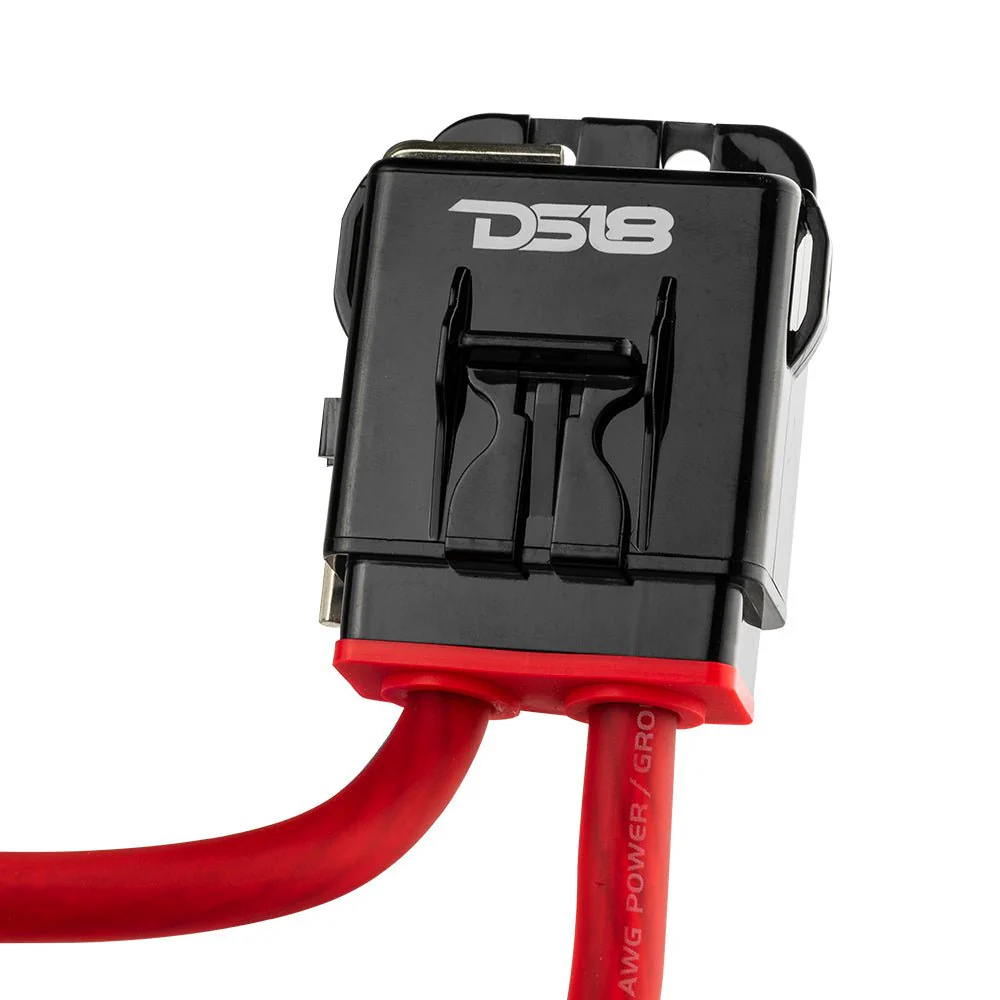

Marine Grade Fuse Holder
Yes

MEASUREMENTS

Overall Length
13.4" / 341mm
Overall Wide
4.4" / 112mm
Overall Height
1.77" / 45mm
Heatsink Length
11.8" / 301mm
Gross Single Unit Weight
2.7kg
