Engineered to Fit. Built to Perform.

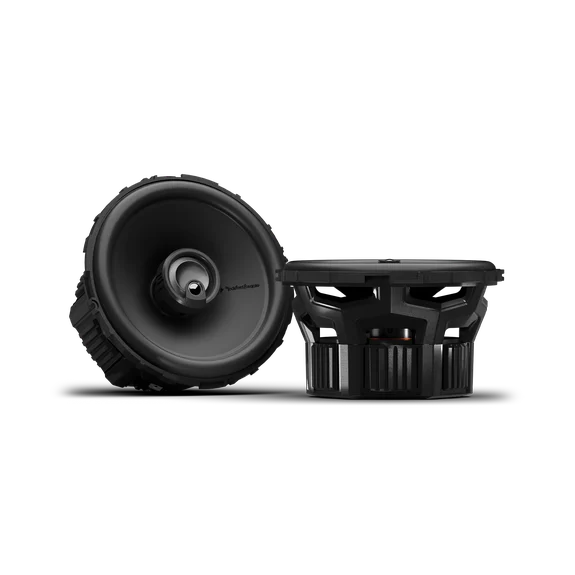

The P1 PUNCH speakers are simple, all-in-one upgrades for standard factory systems. The P1 are perfect for Basic OEM systems with single-speaker locations in doors or rear decks. Factory single cone drivers don’t have tweeters and replacing them with a 3-way coaxial will deliver a big leap in sound clarity and “punch”.

Kit Includes:
• (2) 5.25" Speakers
• (4) OEM Adaptors
• Installation Hardware

FEATURES AT A GLANCE

• Updated mounting flanges for direct fitment in new vehicles
• 3/4” (19 mm) Tetolon® inverted dome tweeter for reliable performance under stress
• 3/8” (9 mm) Polypropylene piezo super tweeter for enhanced high-frequency response
• 20-40% Mica reinforced Polypropylene curvilinear cone for enhanced rigidity and sonic quality
• Santoprene™ half-roll surround for low distortion and unmatched fatigue resistance
• Co-molded surround and cone body chemically bonded for high durability
• Fatigue and tear resistant linear Nomex® spider
• Ultra-flexible braded tinsel leads securely stitched to spider
• 15% glass-fiber reinforced PA66 injected molded composite basket
• Vented Kapton® voice coil former for excellent heat dissipation
• Overhung voice coil ensures consistent magnetic flux for less speaker distortion
• High strength Y35 ferrite motor structure (5mm larger over previous generation)

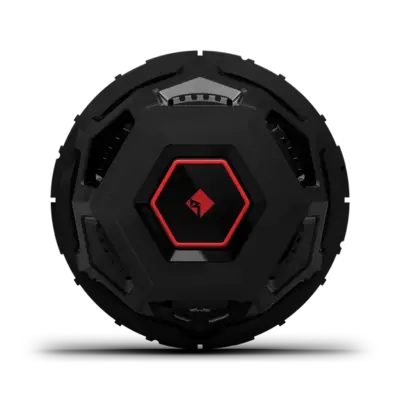

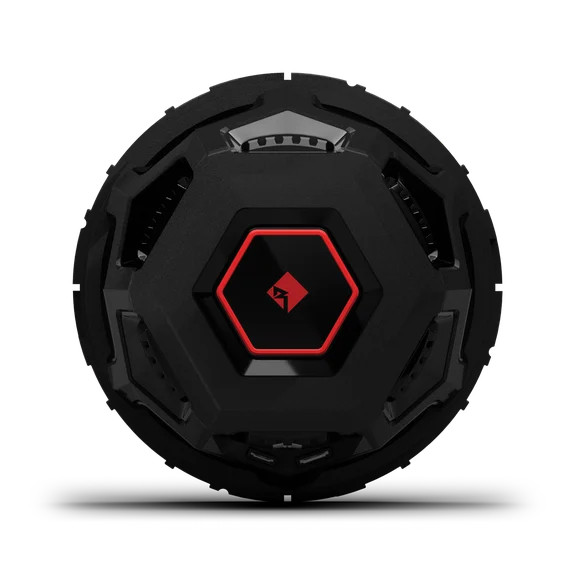

• Removable motor cover for fitment in tight applications
• Co-molded basket terminals for secure connectivity
• ICC+ internal concealed 6dB/octave crossover network
• Includes installation adaptor plate
• Includes mounting hardware
• Includes cut-out template
• Grilles sold separately
• Sold in pairs (2 each)
• 2-Year Warranty

CTA-2031 Compliant

Speaker Type

Coaxial

Midrange Size
(Nominal Diameter)

5.25"

Tweeter Size
(Nominal Diameter)

3/4” (19 mm)
Inverted Dome

Piezo Size
(Nominal Diameter)

3/8” (9 mm)
Co-Witnessed Convex

Nominal Impedance
(Ohms)

4Ω

Frequency Response
(Hz)

56Hz - 25kHz

Voice Coil Diameter
(in/mm)

1" (25.4 mm)

Crossover

Tweeter High-Pass: 9kHz @ 6 dB/Octave

Fs (Hz)

75 Hz

Power Handling
(Watts RMS)

75 Watts RMS
150 Watts Peak

Sensitivity
(dB @ 1W/1M)

86 dB

Sensitivity
(2.83V/1M)

89 dB

Cutout Diameter

4.37" (111 mm)

Rear-Loading Depth
(Twist-Lock Adaptor)

2.33" (59.2 mm)

Front-Loading Depth
(Twist-Lock Adaptor)

2.60" (66 mm)

Mounting Depth
(Standard Flange)

—

Min. Mounting Depth
(No Motor Cover)

2.31" (58.6 mm)

Front Side Clearance

0.44" (11.1 mm)

Removable Motor Cover

Yes

Grille/Trim Ring Included

No

Included in the Box

(2) 5.25” 4Ω 3-Way Coaxial Speakers
(1) 5.25” Speaker Cutout Template
(2) 5.25” 4-Tab Twist-Lock Adaptors
(2) 5.25” to 4x6” Adaptors
(2) 5.25” 3-Tab Wide Adaptors
(2) 5.25” 3-Tab Wide Adaptors
(8) Self-Tapping Phillips #8x32mm (Speaker)
(2) 18 AWG Red/Black Speaker Wire, 205 mm
(3) 18 AWG (–) Female Crimp Spade Conn. (.187”)
(3) 18 AWG (+) Female Crimp Spade Conn. (.250”)
(4) 18 AWG Crimp Butt Connectors

Mounting Hardware

Yes
