Engineered to Fit. Built to Perform.

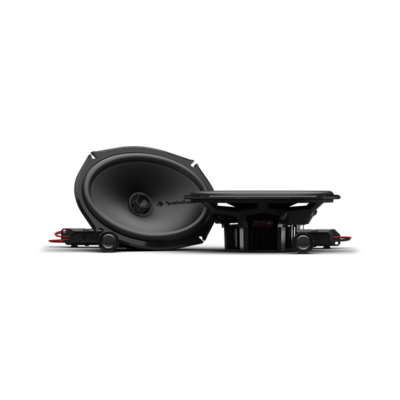

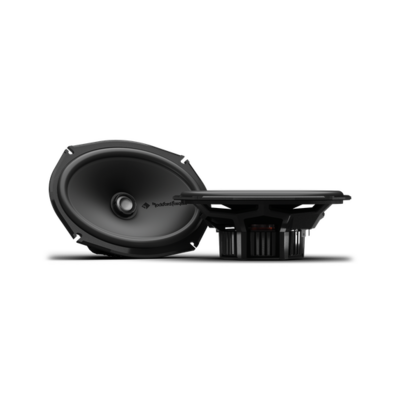

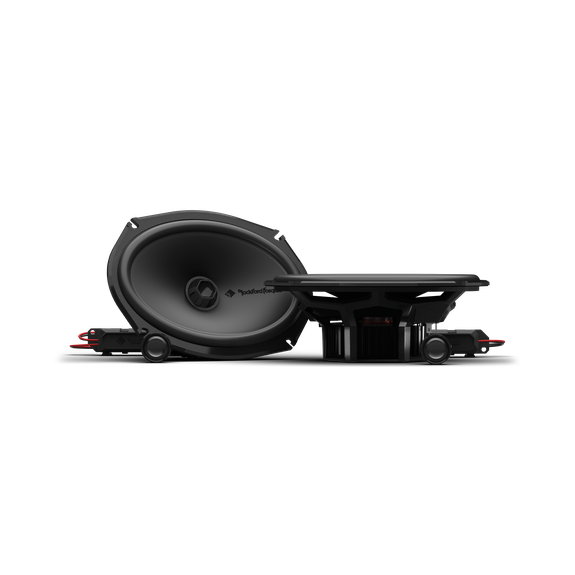

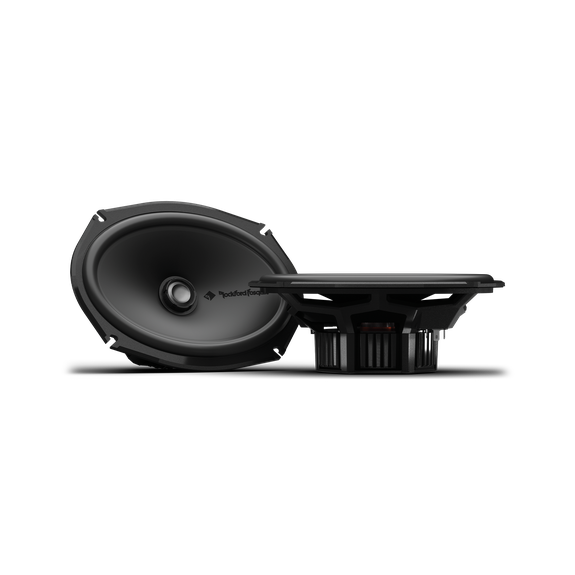

The P2 PUNCH speakers are flexible upgrades for OEM systems with optional tweeters or for custom upgrades. The P2 convertibles offer true versatility by using them as a coaxial on vehicles equipped with one speaker for a fast drop-in, or a 2-way component on vehicles equipped with a separate tweeter/midrange – like those found in an A-pillar or dash – for enhanced staging and imaging.

Kit Includes:
• (2) 6.5" Speakers
• (2) Crossovers
• (1) Tweete Removal Tool
• Installation Hardware

FEATURES AT A GLANCE

• I.L.M. (Interchangeable Locking Mechanism) allows configuration as a coaxial or component system
• 2Ω High Output (HO) version for direct OEM replacement
• 3/4” (19 mm) Tetolon® inverted dome tweeter for reliable performance under stress
• 15% glass-fiber reinforced PA66 injected molded composite basket
• Santoprene™ half-roll surround for low distortion and unmatched fatigue resistance
• 20-40% Mica reinforced Polypropylene curvilinear cone for enhanced rigidity and sonic quality
• Co-molded surround and cone body chemically bonded for high durability
• Fatigue and tear resistant linear Nomex® spider
• Updated mounting flanges for direct fitment in new vehicles
• Ultra-flexible braded tinsel leads securely stitched to spider

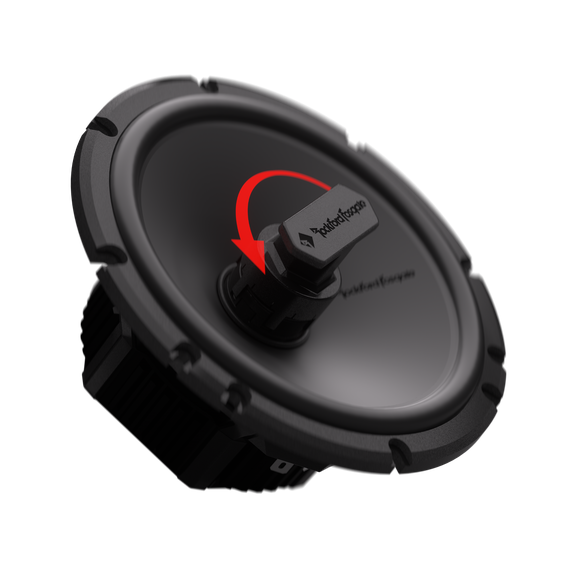

• Surface/flush tweeter cups use copper spring contacts for front-side servicing (tool included)
• Flush-mount threaded tweeter cup fits 3/8" thick panels using 1.5" hole-saw cutout
• Includes woofer phase plug when tweeter relocated to separate tweeter cup
• Co-molded basket terminals for secure connectivity
• Overhung voice coil ensures consistent magnetic flux for less speaker distortion
• Vented Kapton® voice coil former for excellent heat dissipation
• High strength Y35 ferrite motor structure (5mm larger over previous generation)
• 2-pin micro-Molex crossover connection that are secured using screws or zip ties
• Removable motor cover for fitment in tight applications
• ICC+ (internal concealed crossover) 6dB with 12dB external option and -3dB tweeter attenuation
• Includes mounting hardware
• Includes cut-out template
• Grilles sold separately
• Sold in pairs (2 each)
• 2-Year Warranty

CTA-2031 Compliant

Speaker Type

Convertible

Midrange Size
(Nominal Diameter)

6"x9"

Tweeter Size
(Nominal Diameter)

3/4" (19mm)

Piezo Size
(Nominal Diameter)

—

Nominal Impedance
(Ohms)

2Ω

Frequency Response
(Hz)

45Hz - 25kHz

Voice Coil Diameter
(in/mm)

1.25" (32.5 mm)

Crossover

Tweeter High-Pass: 9kHz @ 6dB/octave (internal)
Tweeter High-Pass: 9kHz @ 12dB/octave (external)
Tweeter Attenuation: 0dB or -3dB (external)

Power Handling
(Watts RMS)

75 Watts RMS
150 Watts Peak

Fs (Hz)

60 Hz

Sensitivity
(dB @ 1W/1M)

90 dB

Sensitivity
(2.83V/1M)

93 dB

Cutout Diameter

8.41" x 5.71" (213.5 x 145 mm)

Front-Loading Depth
(Twist-Lock Adaptor)

—

Rear-Loading Depth
(Twist-Lock Adaptor)

—

Mounting Depth
(Standard Flange)

3.13" (79.4 mm)

Min. Mounting Depth
(No Motor Cover)

2.55" (64.7 mm)

Front Side Clearance

0.42" (10.6 mm)

Removable Motor Cover

Yes

Grille/Trim Ring Included

No

Included in the Box

(2) 3/4" 2Ω Tweeters
(2) 6”x9” 2Ω Speakers
(1) 6”x9” Speaker Cut-Out Template
(4) Self-Tapping Phillips #4x16mm (Tweeter)
(8) Self-Tapping Phillips #8x32mm (Speaker)
(4) Self-Tapping Phillips #8x20mm (Crossover)
(2) Woofer Phase Plugs

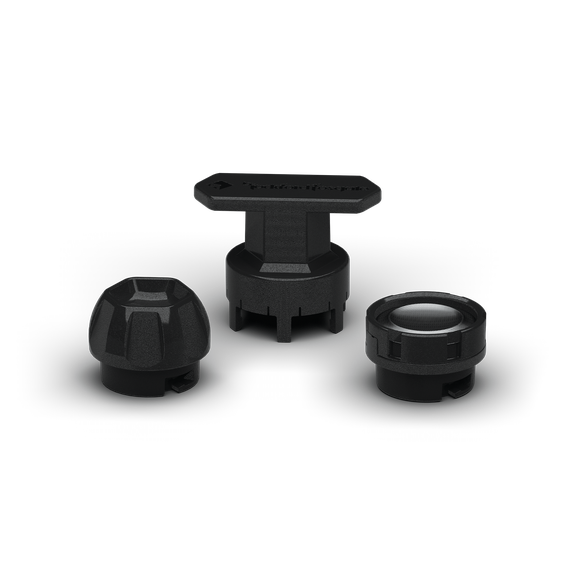

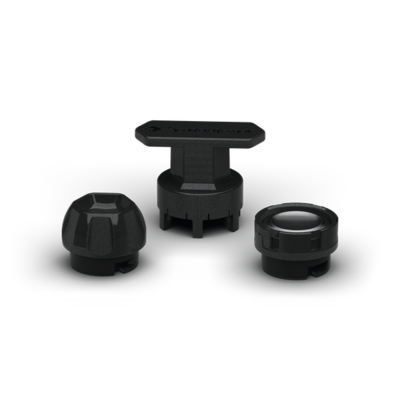

(2) Flush-Mount Tweeter Cups
(2) Surface-Mounting Tweeter Cups
(1) Tweeter Removal Tool
(2) HO Passive Crossover Network (Tweeter)
(2) 18” Crossover Wiring Extensions
(2) 18 AWG Red/Black Speaker Wire, 205 mm
(3) 18 AWG (–) Female Crimp Spade Conn. (.187”)
(3) 18 AWG (+) Female Crimp Spade Conn. (.250”)
(4) 18 AWG Crimp Butt Connectors
(6) Zip Ties 4.8 mm x 350 mm

Mounting Hardware

Yes

Shipping Weight
