Engineered to Fit. Built to Perform.

The P2 PUNCH speakers are flexible upgrades for OEM systems with optional tweeters or for custom upgrades. Use the P2V2-TS as a fast drop-in or a 2-way component on vehicles equipped with a separate tweeter/midrange – like those found in an A-pillar or dash – for enhanced staging and imaging.

Kit Includes:
• (2) 3/4" Tweeters
• (2) Flush Mount Cups
• (2) Surface Mount Cups
• (2) Crossovers

FEATURES AT A GLANCE

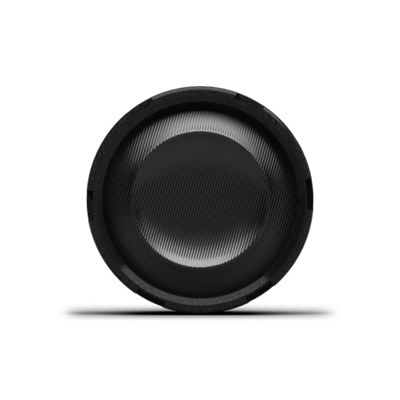

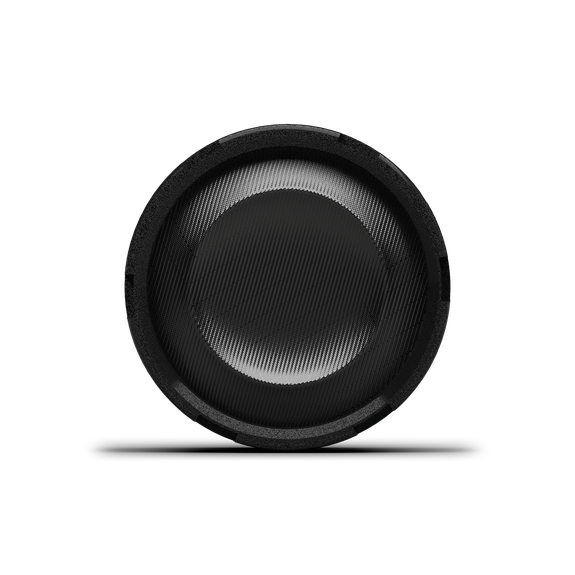

• 3/4” (19 mm) Tetolon® inverted dome tweeter for reliable performance under stress
• Surface/flush tweeter cups use copper spring contacts for front-side servicing (tool included)
• Flush-mount threaded tweeter cup fits 3/8" thick panels using 1.5" hole-saw cutout
• External 12dB/octave crossover
• 2-pin micro-Molex crossover connection that are secured using screws or zip ties
• Includes mounting hardware
• Includes cut-out template
• Sold in pairs (2 each)
• 2-Year Warranty

CTA-2031 Compliant

Speaker Type

Convertible

Midrange Size
(Nominal Diameter)

—

Tweeter Size
(Nominal Diameter)

3/4" (19mm)

Piezo Size
(Nominal Diameter)

—

Nominal Impedance
(Ohms)

4Ω

Frequency Response
(Hz)

3.5 - 25kHz

Voice Coil Diameter
(in/mm)

0.75" (19 mm)

Crossover

Tweeter High-Pass: 9kHz @ 12dB/octave
Tweeter Attenuation: 0dB or -3dB

Power Handling
(Watts RMS)

75 Watts RMS
150 Watts Peak

Fs (Hz)

3.5 kHz

Sensitivity
(dB @ 1W/1M)

90 dB

Sensitivity
(2.83V/1M)

93 dB

Mounting Diameter

Flush Mount: 1.54" (39 mm)
Surface Mount: 1.22" (31.1 mm)

Rear-Loading Depth
(Twist-Loc Adaptor)

—

Front-Loading Depth
(Twist-Loc Adaptor)

—

Mounting Depth
(Standard Flange)

Flush Mount: 0.78" (19.9 mm)
Surface Mount: 0.57" (14.4 mm)

Min. Mounting Depth
(No Motor Cover)

—

Front Side Clearance

Flush: 0.44" (11.2 mm)
Surface: 0.49" (12.4 mm)

Removable Motor Cover

No

Grille/Trim Ring Included

Yes

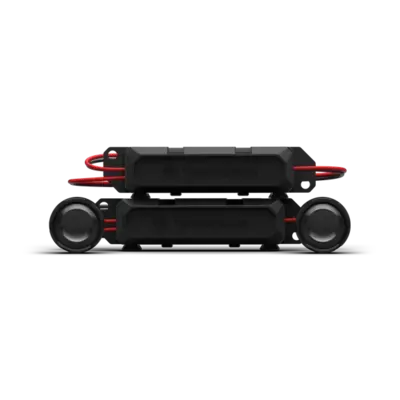

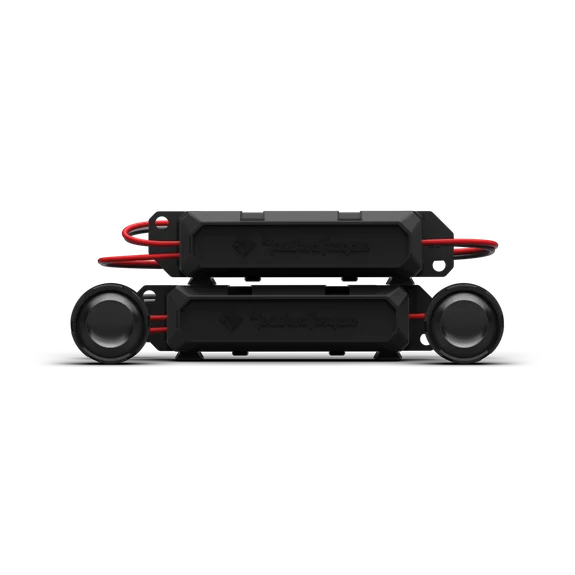

Included in the Box

(2) 3/4" 4Ω Tweeters
(2) Flush-Mount Tweeter Cups
(2) Surface-Mounting Tweeter Cups
(1) Tweeter Removal Tool
(2) Passive Crossover Network (Tweeter)
(4) Self-Tapping Phillips #4x16mm (Tweeter)
(4) Self-Tapping Phillips #8x20mm (Crossover)
(2) 18” Crossover Wiring Extensions
(4) 18 AWG Crimp Butt Connectors
(4) Zip Ties 4.8 mm x 350 mm

Mounting Hardware

No

Shipping Weight
