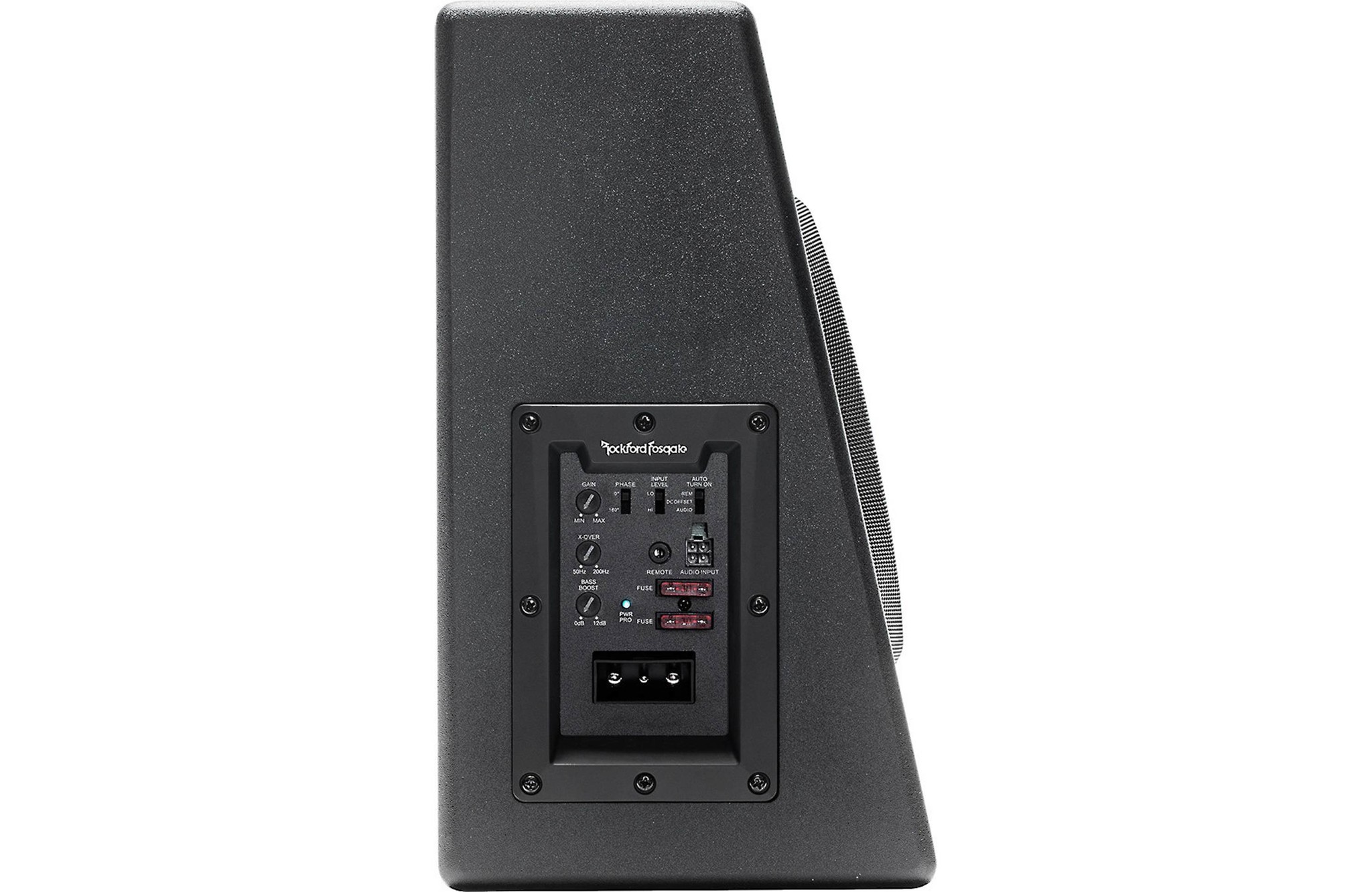

The Punch P300-10T is a universal "all in one" solution for dropping Bass in any factory or aftermarket system. This model features a 10" high output woofer with a 300-watt internal amplifier in a slim design enclosure that's great for universal truck applications. The enclosure features quick release input and power connectors for easy removal when extra space is required.

CEA-2031 Compliant

Frequency Response

25 Hz to 200 Hz

Woofer Quantity

1

Woofer Size

10"

Woofer Series

Proprietary

Nominal Impedance

—

Power Handling
(Watts RMS)

300 Watts RMS

Enclosure Type

Sealed

Enclosure Material

5/8" MDF (Medium Density Fiberboard

Speaker Connector

—

CEA-2006 Compliant

Integrated Amplifier

300 Watts RMS

Crossover Controls

Variable 50 Hz to 200 Hz
12dB/Octave Butterworth

Tone Controls

Bass Boost
0 dB to +12 dB;

Phase Control

0° to 180°

Remote Control

Punch Level Control (Included)
Replacement Part: 1130-59232-01

Auto Turn-On Selector

Remote Trigger
DC Offset Sense
Audio Sense

Input Switch

High-Level (Speaker Line)
Low-Level (RCA)

Signal Input

Low/High-Level: 1 RCA Pair (L/R Summed)
Replacement Part: 1130-59232-01

Input Sensitivity

Low-Level: 150 mV to 6 V
High-Level: 300 mV to 12 V

Input Impedance

20k Ohms

Power Input Connector

Quick Disconnect
Replacement Part: 1130-59232-01

Power Wire Gauge

B+/GND: 8 AWG
REM: 18 AWG

Circuit Topology Class

Class-D

Heatsink Type

Extruded Aluminum

Cooling

Convection

Visual Indicators

Power/Protect LED

Fuses

20 Amp (2 x 10 Amp ATO Fuse)

Dimensions
Box H x W x D
Wedge H x W x D1 x D2

13.3" x 21.7" x 4.8" x 7.9"
338 mm x 552 mm x 122 mm x 201 mm

Shipping Weight

25 lbs. (11.3 kg)
