Engineered to Fit. Built to Perform.

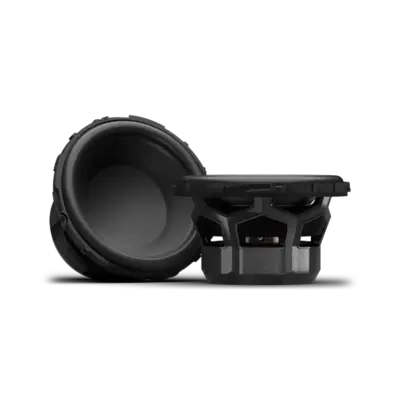

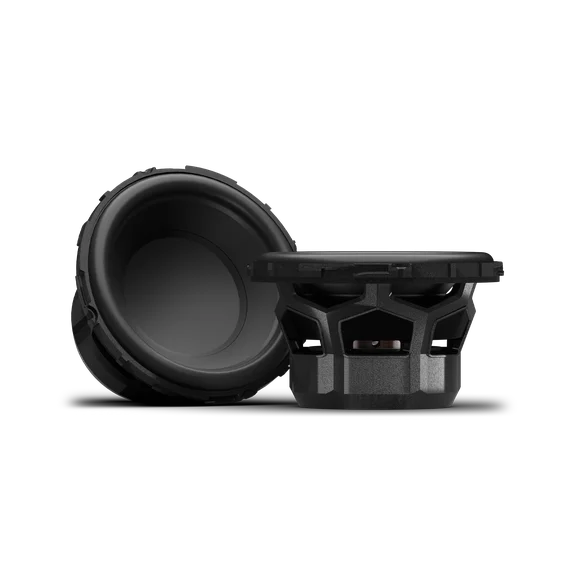

The P3 PUNCH offers high-fidelity performance in a premium OEM replacement. The P3V2-25 speakers are designed for vehicles equipped with a separate tweeter, midrange, and woofer. These are for drivers who want it all. Precision detail, powerful midrange, and accurate lows.

Kit Includes:
• (2) 2.5" Speakers
• (2) Crossovers
• (2) OEM Adaptors
• Installation Hardware

FEATURES AT A GLANCE

• Midrange driver for use in center channel or 3-way component systems

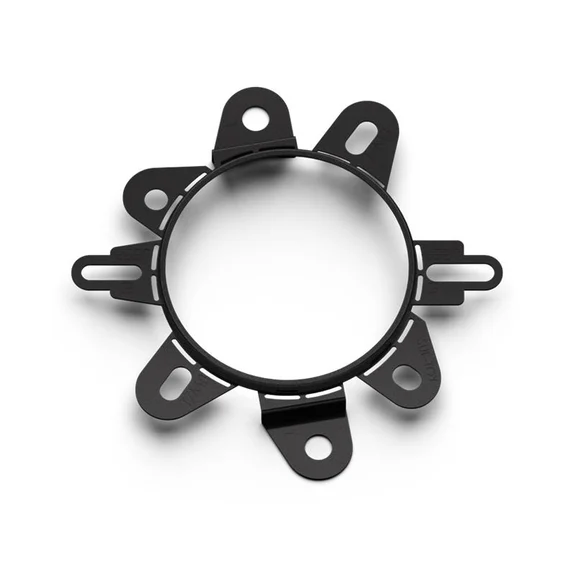

• Updated mounting flanges for direct fitment in new vehicles
• External 6dB/octave Band-Pass crossover
• 2-pin micro-Molex crossover connection that are secured using screws or zip ties
• Includes mounting hardware
• Grilles sold separately
• Includes cut-out template
• Sold in pairs (2 each)
• 2-Year Warranty

CTA-2031 Compliant

Speaker Type

Component System

Midrange Size
(Nominal Diameter)

2.5"

Tweeter Size
(Nominal Diameter)

—

Piezo Size
(Nominal Diameter)

—

Nominal Impedance
(Ohms)

4Ω

Frequency Response
(Hz)

135Hz - 15kHz

Voice Coil Diameter
(in/mm)

1.25" (32.5 mm)

Crossover

MIDRANGE
BP 600Hz - 6kHz @ 6dB/octave (external)

MIDRANGE BASS BLOCKER
LP 1,200Hz @ 6 dB/Octave (33µF)

Sensitivity
(dB @ 1W/1M)

82 dB

Sensitivity
(2.83V/1M)

85 dB

Fs (Hz)

180 Hz
