FEATURES AT A GLANCE

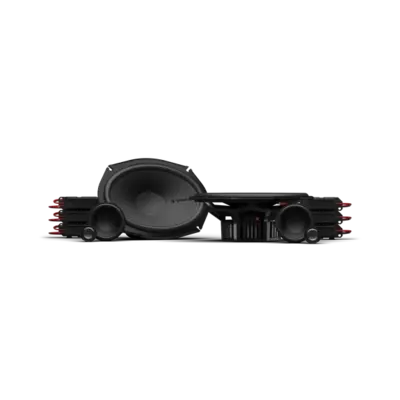

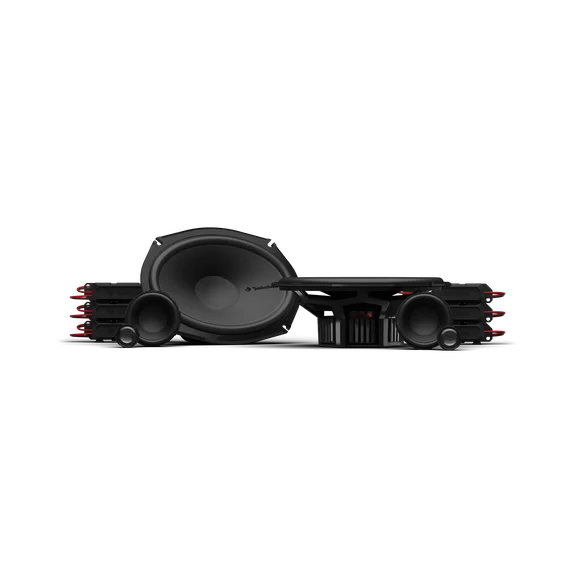

• 3-way component system with discrete woofer, midrange, and tweeter

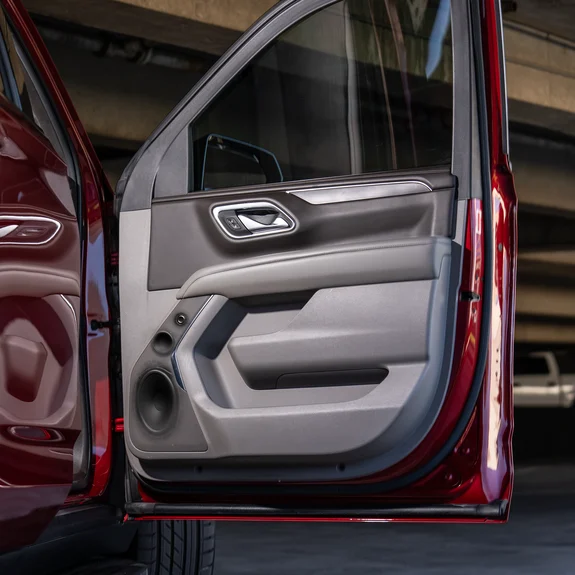

• Updated mounting flanges for direct fitment in new vehicles
• 3/4” (19 mm) Tetolon® inverted dome tweeter for reliable performance under stress
• P3V2-25 Punch P3 2.5” 3-Way Component Midrange
• Santoprene™ half-roll surround for low distortion and unmatched fatigue resistance
• 20-40% Mica reinforced Polypropylene curvilinear cone for enhanced rigidity and sonic quality
• Co-molded surround and cone body chemically bonded for high durability
• Surface/flush tweeter cups use copper spring contacts for front-side servicing (tool included)
• Flush-mount threaded tweeter cup fits 3/8" thick panels using 1.5" hole-saw cutout
• Ultra-flexible braded tinsel leads securely stitched to spider
• Fatigue and tear resistant linear Nomex® spider

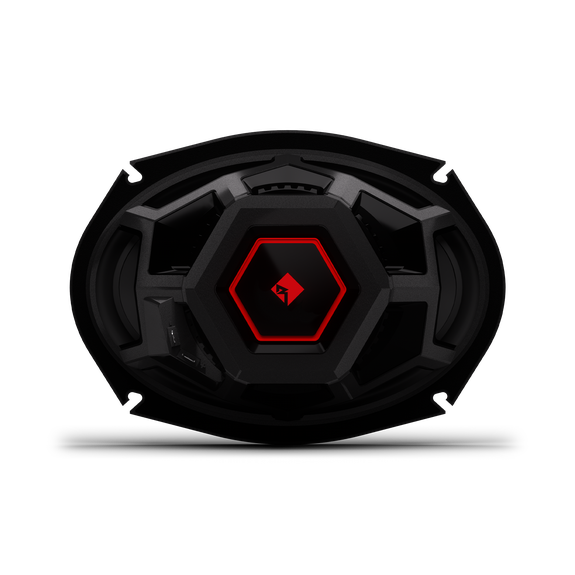

• 15% glass-fiber reinforced PA66 injected molded composite basket
• Vented Kapton® voice coil former for excellent heat dissipation
• Overhung voice coil ensures consistent magnetic flux for less speaker distortion
• High strength Y35 ferrite motor structure (5mm larger over previous generation)
• Co-molded basket terminals for secure connectivity
• Removable motor cover for fitment in tight applications
• External 12dB/octave High-Pass crossover with -3dB tweeter attenuation
• External 6dB/octave Band-Pass crossover
• External 6dB/octave Low-Pass crossover
• 2-pin micro-Molex crossover connection that are secured using screws or zip ties
• Includes mounting hardware
• Includes cut-out template
• Grilles sold separately
• Sold in pairs (2 each)
• 2-Year Warranty

CTA-2031 Compliant

Speaker Type

Component System

Midrange Size
(Nominal Diameter)

6"x9" + 2.5"

Tweeter Size
(Nominal Diameter)

3/4" (19mm)

Piezo Size
(Nominal Diameter)

—

Nominal Impedance
(Ohms)

4Ω

Frequency Response
(Hz)

49Hz - 25kHz

Voice Coil Diameter
(in/mm)

1.25" (32.5 mm)

Crossover

TWEETER
HP 9kHz @ 12dB/octave (external)
Attenuation: 0dB or -3dB (external)

MIDRANGE
BP 600Hz - 6kHz @ 6dB/octave (external)

MIDRANGE BASS BLOCKER
—

WOOFER
LP 1.2kHz @ 6dB/octave (external)

Sensitivity
(dB @ 1W/1M)

89 dB

Sensitivity
(2.83V/1M)

92 dB

Fs (Hz)

65 Hz

Power Handling
(Watts RMS)

75 Watts RMS
150 Watts Peak

Woofer Cutout Diameter

8.41" x 5.71" (213.5 mm x 145 mm)

Woofer Mounting Depth
(Standard Flange)

3.13" (79.4 mm)

Woofer Mounting Depth
(No Motor Cover)

2.76" (70 mm)

Midrange Rear-Loading Depth
(Twist-Lock Adaptor)

1.47" (37.3 mm)

Midrange Front-Loading Depth
(Twist-Lock Adaptor)

1.60" (40.6 mm)

Woofer Front Side Clearance

0.42" (10.6 mm)

Removable Motor Cover

Yes

Grille/Trim Ring Included

No

Included in the Box

(2) 3/4” 4Ω Tweeter
(2) 2.5” 4Ω Speakers
(2) 6”x9” 4Ω Speakers

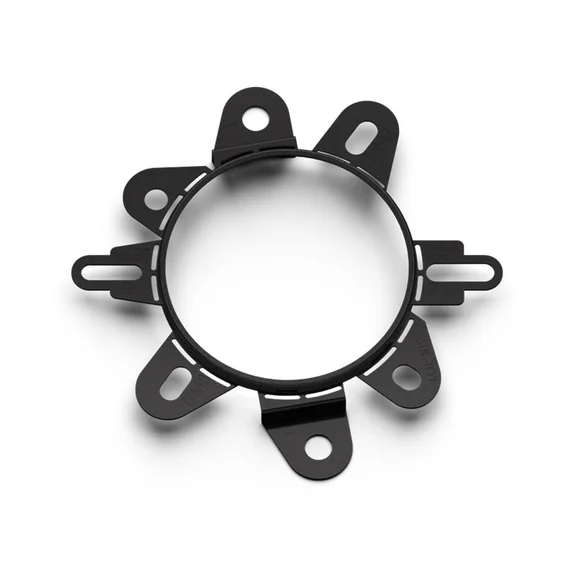

(2) Twist-Lock Adaptors
(1) 2.5” Speaker Cutout Template
(1) 6”x9” Speaker Cutout Template
(2) Flush-Mount Tweeter Cups
(2) Surface-Mounting Tweeter Cups
(1) Tweeter Removal Tool
(2) Passive Crossover (Tweeter)
(2) Passive Crossover (Midrange)
(2) Passive Crossover (Woofer)
(12) Self-Tapping Phillips #4x16mm (Tweeter)
(10) 18” Crossover Wiring Extensions
(4) Self-Tapping Phillips #8x20mm (Crossover)
(12) Self-Tapping Phillips #8x32mm (Speaker)
(6) Zip Ties 4.8 mm x 350 mm
(4) 18 AWG Red/Black Speaker Wire, 205 mm
(6) 18 AWG (–) Female Crimp Spade Conn. (.187”)
(6) 18 AWG (+) Female Crimp Spade Conn. (.250”)
(12) 18 AWG Crimp Butt Connectors

Mounting Hardware

Yes

Shipping Weight
