Engineered to Fit. Built to Perform.

The P3 PUNCH offers high-fidelity performance in a premium OEM replacement. The P3 speakers are 3-way component systems for vehicles equipped with a separate tweeter, midrange, and woofer. These are for drivers who want it all. Precision detail, powerful midrange, and accurate lows.

Kit Includes:

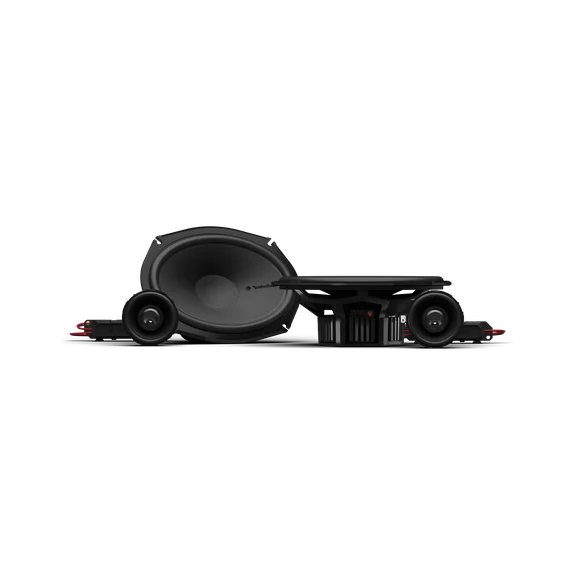

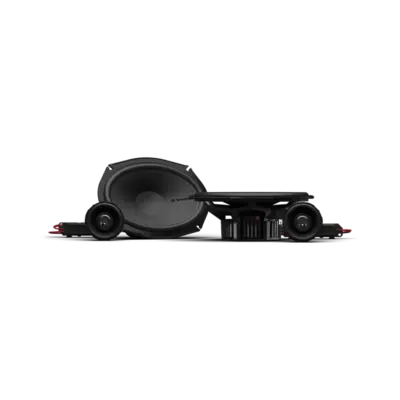

• (2) 6x9" Speakers

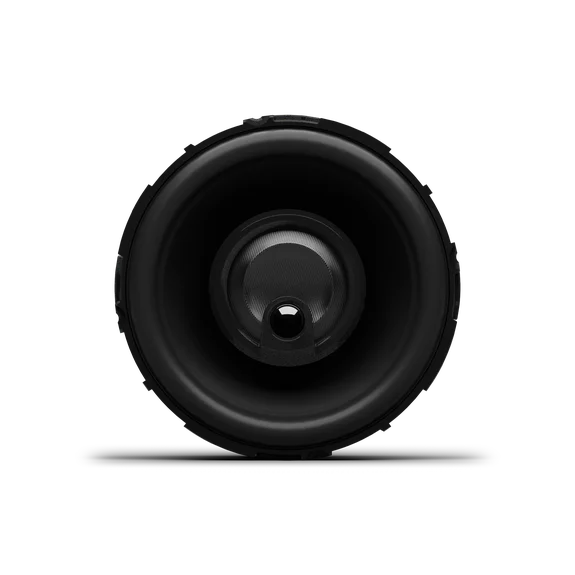

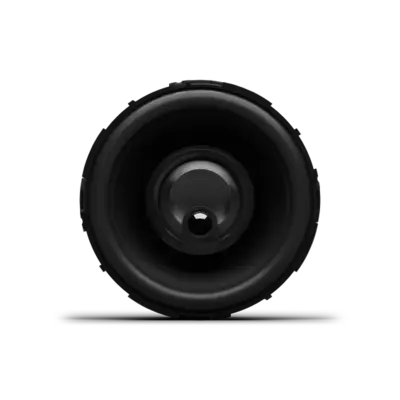

• (2) 2.5" Coaxial Speakers
• (2) Crossovers
• (2) OEM Adaptors
• Installation Hardware

FEATURES AT A GLANCE

• 3-way configuration with component woofer and coaxial midrange/tweeter
• Updated mounting flanges for direct fitment in new vehicles
• 3/4” (19 mm) Tetolon® inverted dome tweeter for reliable performance under stress
• P1V2-25 Punch P1 2.5” 3-Way Coaxial Speaker
• Santoprene™ half-roll surround for low distortion and unmatched fatigue resistance
• 20-40% Mica reinforced Polypropylene curvilinear cone for enhanced rigidity and sonic quality
• Co-molded surround and cone body chemically bonded for high durability
• Ultra-flexible braded tinsel leads securely stitched to spider
• Fatigue and tear resistant linear Nomex® spider
• 15% glass-fiber reinforced PA66 injected molded composite basket
• Vented Kapton® voice coil former for excellent heat dissipation
• Overhung voice coil ensures consistent magnetic flux for less speaker distortion
• High strength Y35 ferrite motor structure (5mm larger over previous generation)
• Removable motor cover for fitment in tight applications
• Co-molded basket terminals for secure connectivity
• ICC+ (internal concealed crossover) 6dB for coaxial
• External 6dB/octave Low-Pass crossover
• 2-pin micro-Molex crossover connection that are secured using screws or zip ties
• Includes mounting hardware
• Includes cut-out template
• Grilles sold separately
• Sold in pairs (2 each)
• 2-Year Warranty

CTA-2031 Compliant

Speaker Type

Component System

Midrange Size
(Nominal Diameter)

6"x9" + 2.5"

Tweeter Size
(Nominal Diameter)

3/4" (19mm)

Piezo Size
(Nominal Diameter)

—

Nominal Impedance
(Ohms)

4Ω

Frequency Response
(Hz)

49Hz - 25kHz

Voice Coil Diameter
(in/mm)

1.25" (32.5 mm)

Crossover

TWEETER
HP 9kHz @ 6dB/octave (internal)

MIDRANGE BASS BLOCKER
HP 1,200Hz @ 6 dB/Octave (33µF)

WOOFER
LP 1.2kHz @ 6dB/octave (external)

Sensitivity
(dB @ 1W/1M)

89 dB

Sensitivity
(2.83V/1M)

92 dB

Fs (Hz)

65 Hz
