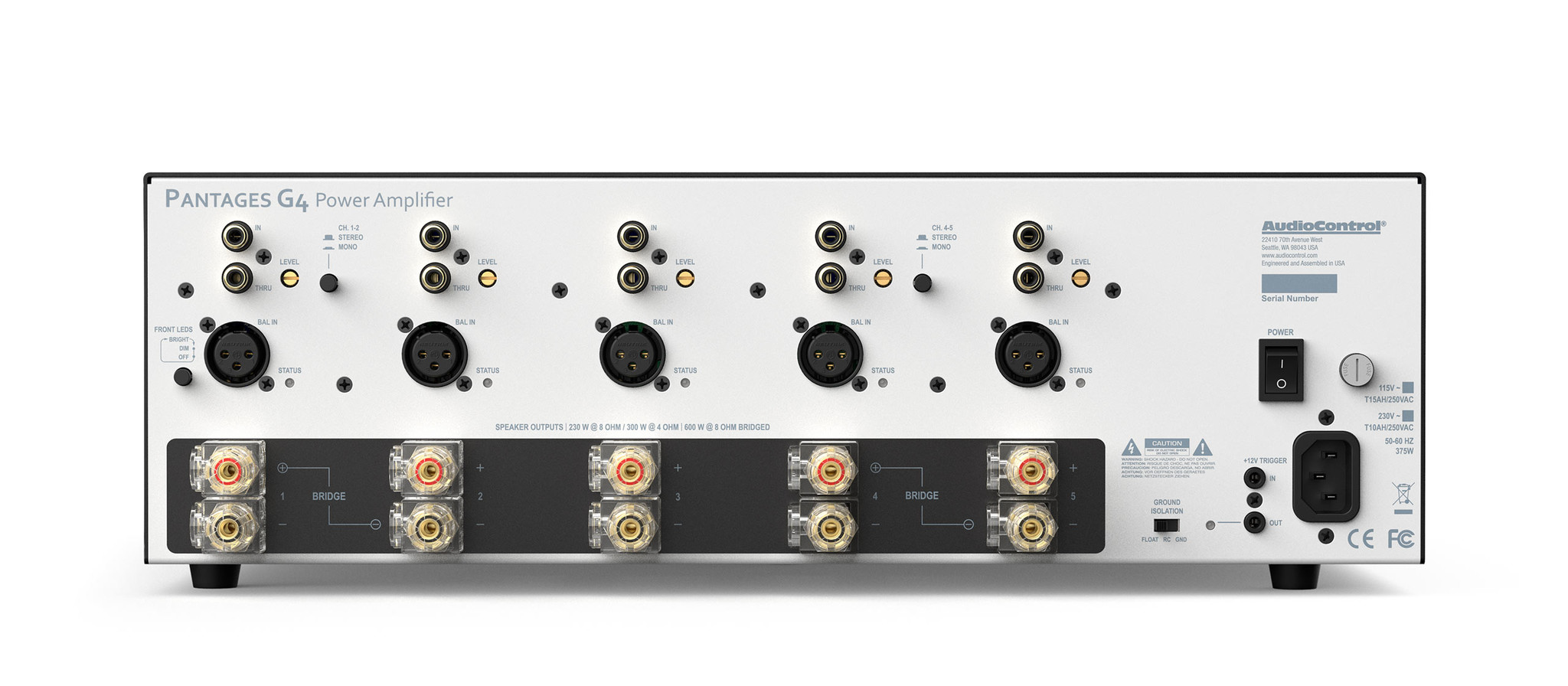

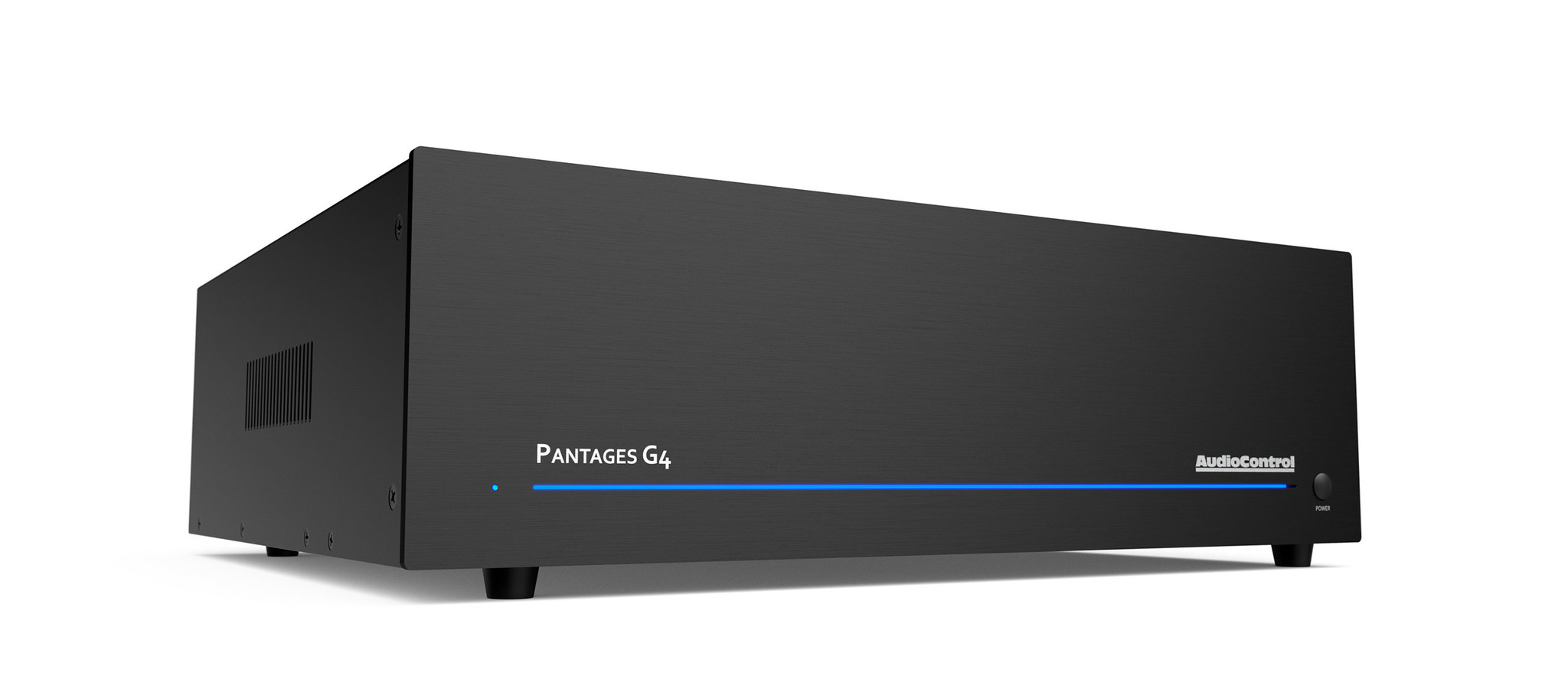

PANTAGES G4 5 CHANNEL POWER AMPLIFIER

Brand: AUDIO CONTROL
|
In stock
Ordered before counting..., delivered tomorrow
Login for prices
Add to favorites
Article code PANTAGES G4
EAN
Information

FEATURES

  • Award winning theater amplifier technologies
  • Five channel home theater amplifier
  • Multi-mode operation: 5 channel, 3.1 channel, 3 channel
  • 230 watts per channel at 8 ohms; 300 watts per channel at 4 ohms
  • 600 watts at 8 ohms bridged on select channels
  • Stable into low impedances
  • Stereo/mono operation
  • Unparalleled Energy Efficiency
  • High Definition BiMOS Outputs
  • Cool Running Class H Operation
  • LightDrive Anti-Clipping Protection Circuitry
  • 5-way Binding Posts
  • Unbalanced RCA inputs with pass through
  • Balanced XLR Inputs
  • Bullet-Proof Reliability
  • Remote 12 volt Trigger
  • Perfect paired with AudioControl’s home theater preamplifiers

SPECIFICATIONS

INPUTS

  • Inputs: 5 RCA Unbalanced, 5 XLR Balanced
  • Input Sensitivity: 1.42 Vrms for full output
  • Maximum Input Voltage: 2.7 Vrms
  • Input Impedance: 100 kΩ

OUTPUTS

  • Amplifier Channels: 5
  • Power Output (8Ω): 230 watts per channel
  • Power Output (4Ω): 300 watts per channel
  • Power Ouput (8Ω Bridged Mono): 600 watts
  • Minimum Speaker Load: 4Ω

PERFORMANCE

  • Damping Factor: >450
  • Total Harmonic Distortion: 0.04% (230 watts @ 8 ohms 20 Hz-20 kHz)
  • Signal to Noise: >102dB, A-wtd ref Full Output
  • Frequency Response: 10 Hz -20 kHz, ±1 dB

CONTROL

  • Remote Power Trigger: +12 VDC or Dry Contact Closure

GENERAL

  • Power Consumption (Standby): < 2W
  • Power Consumption (Idle): 38W
  • Power Consumption (loud listening level): 263W
  • Power Consumption (maximum): 1500W
  • BTU/Hour Output (Standby): 5.6 BTU/hr
  • BTU/Hour Output (Idle): 129 BTU/hr
  • BTU/Hour Output (1/8th power, loud listening level): 313 BTU/hr
  • BTU/Hour Output (maximum): 1791 BTU/hr
  • Protection: clipping, short circuit, thermal, DC offset

WEIGHTS & DIMENSIONS

  • Dimensions: 17”W x 16.5”D x 5.25”H (3U)
  • Weight: 41.0 lbs (18.6 kg)
  • IN THE BOX: Pantages G4, Power Cord, Manual, Warranty
