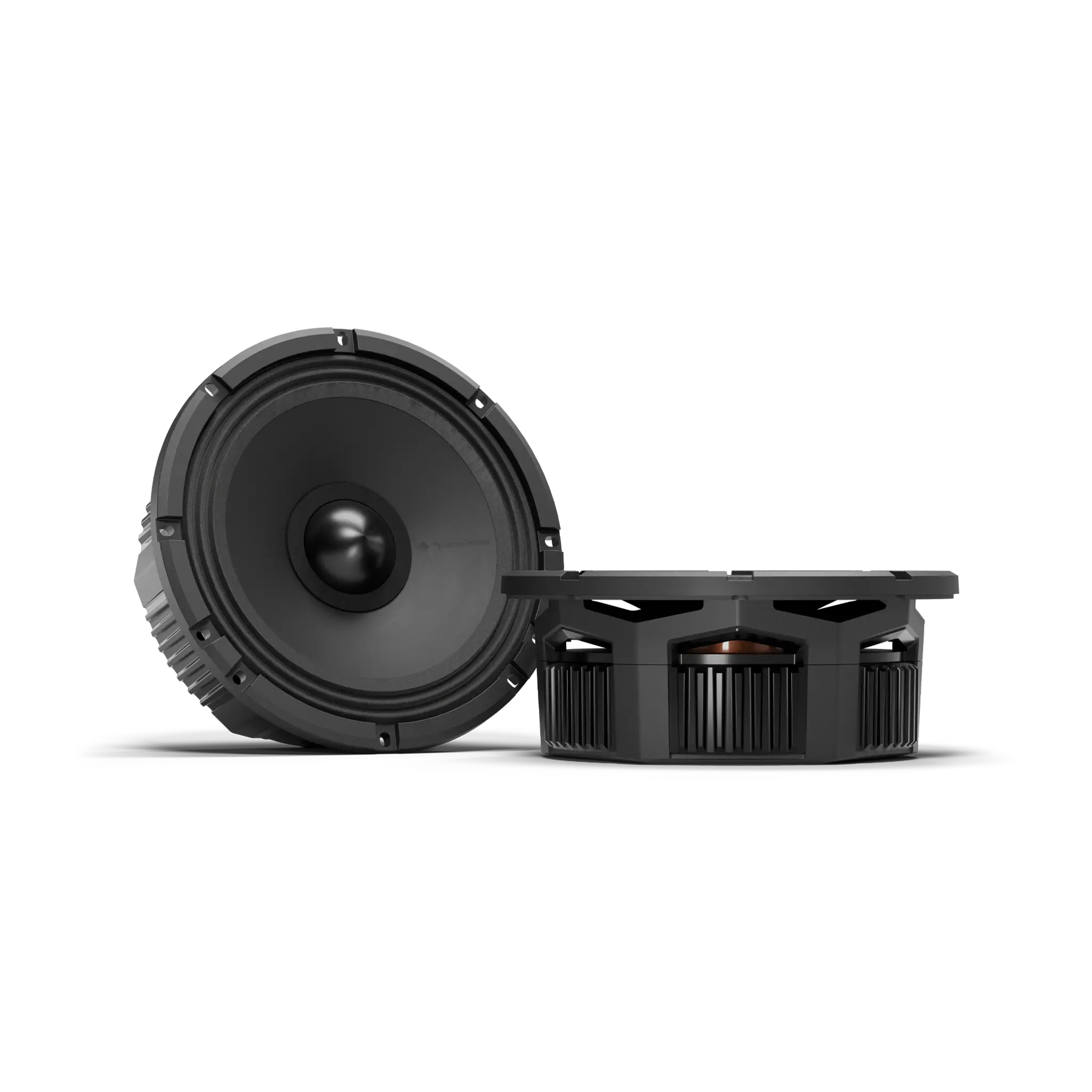

ROCKFORD FOSGATE PPROV2-65 RF PUNCH PRO 6.5" MIDRANGE SPEAKER
Brand:
ROCKFORD FOSGATE
|
| Article code | PPROV2-65 |
| EAN | 780687366940 |
Information
Punch Pro 6.5” 4-Ohm Midrange Speaker PPROV2-65
Performance Range
Amp Power (Watts)Minimum
Optimum
Danger
Warranty Void
Frequency Response
CTA-2031 Compliant
Speaker Type
Midrange
Speaker Size
(Nominal Diameter)
(Nominal Diameter)
6.5" (165.1 mm)
Nominal Impedance
(Ohms)
(Ohms)
4Ω
Frequency Response
(Hz)
(Hz)
64Hz - 7.3kHz
Fs
(Hz)
(Hz)
85 Hz
Qts
0.42
Vas
(cu.ft./liters)
(cu.ft./liters)
0.20 ft3 (5.7 liters)
XMax
(in.mm)
(in.mm)
0.04” (1.0 mm)
XMax10
(in.mm)
(in.mm)
0.10" (2.5 mm)
Sensitivity
(dB @ 1W/1M)
(dB @ 1W/1M)
92.5 dB
Sensitivity
(dB @ 2.83V/1M)
(dB @ 2.83V/1M)
95.5 dB
Voice Coil Diameter
(in/mm)
(in/mm)
1.5" (38 mm)
Power Handling
(Watts RMS)
(Watts RMS)
75 Watts RMS
150 Watts Peak
150 Watts Peak
Crossover Frequency
(Hz)
(Hz)
—
Crossover Slope
(dB)
(dB)
—
Crossover Attenuation
(dB)
(dB)
—
Mounting Depth
(With Motor Cover)
(With Motor Cover)
2.33" (59.1 mm)
Mounting Depth
(No Motor Cover)
(No Motor Cover)
1.2" (54.15 mm)
Mounting Flange
6.5" (165.25 mm)
Cutout Diameter
5.67" (144 mm)
Front Clearance
0.32" (8.2 mm)
Grille/Trim Ring Included
No
Removable Motor Cover
Yes
Mounting Hardware
Yes
Included in the Box
(2) 4Ω 6.5" Speakers
(8) #8 Phillips Screws, 25 mm long
(3) 1/4” (0.25”) Quick Disconnect Terminals
(3) 3/16” (0.187”) Quick Disconnect Terminals
(1) Midrange Cutout Template
(8) #8 Phillips Screws, 25 mm long
(3) 1/4” (0.25”) Quick Disconnect Terminals
(3) 3/16” (0.187”) Quick Disconnect Terminals
(1) Midrange Cutout Template
Shipping Weight
11.4 Lbs. (5.17 Kg.)
