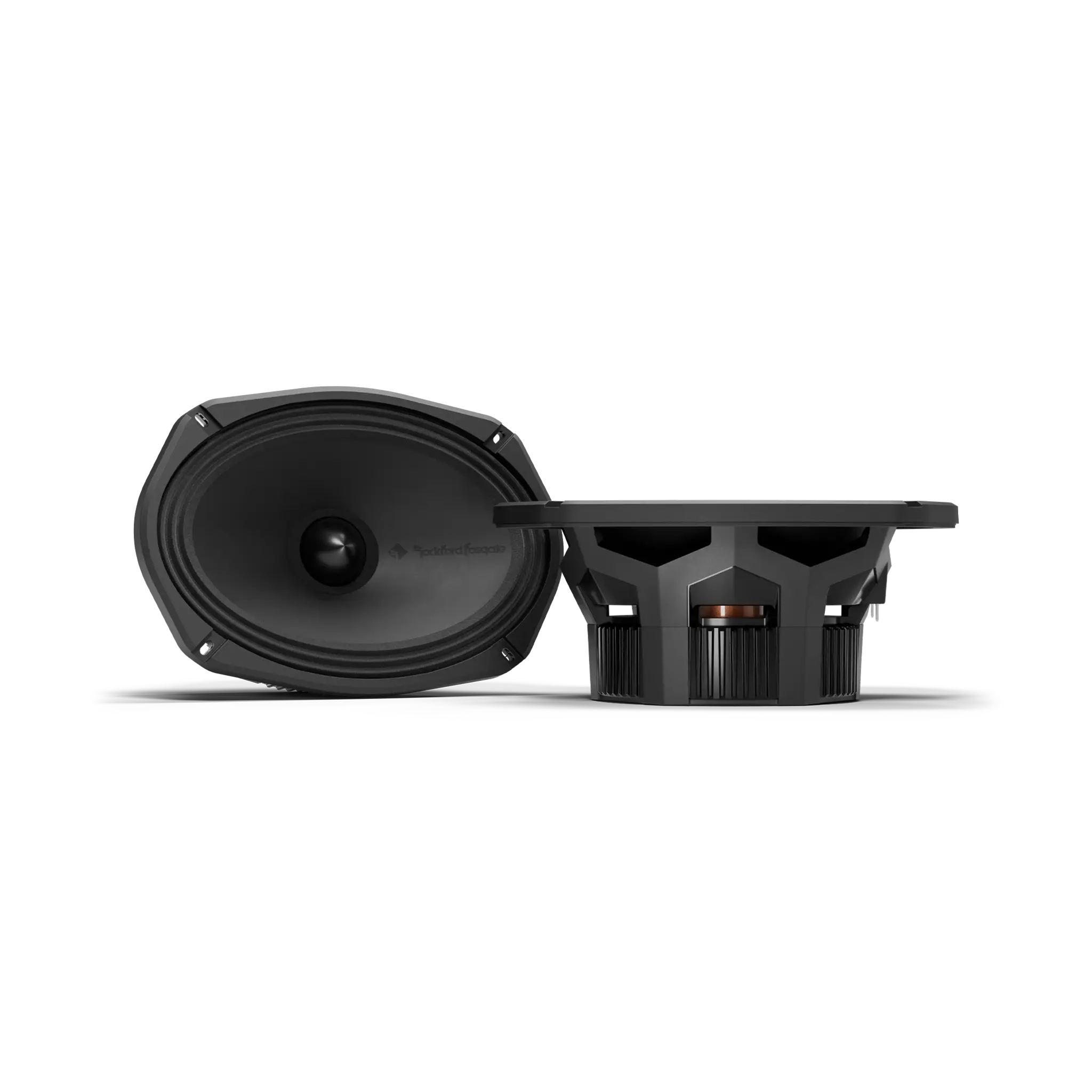

ROCKFORD FOSGATE PPROV2-69 RF PUNCH PRO 6X9" MIDRANGE SPEAKER
Brand:
ROCKFORD FOSGATE
|
| Article code | PPROV2-69 |
| EAN | 780687366964 |
Information
Punch Pro 6x9” 4-Ohm Midrange Speaker PPROV2-69
Performance Range
Amp Power (Watts)Minimum
Optimum
Danger
Warranty Void
Frequency Response
CTA-2031 Compliant
Speaker Type
Midrange
Midrange Size
(Nominal Diameter)
(Nominal Diameter)
6x9" (152.4 x 228.6 mm)
Nominal Impedance
(Ohms)
(Ohms)
4Ω
Frequency Response
(Hz)
(Hz)
60Hz - 8.5kHz
Fs
(Hz)
(Hz)
80 Hz
Qts
0.43
Vas
(cu.ft./liters)
(cu.ft./liters)
0.37 ft3 (10.6 liters)
XMax
(in./mm)
(in./mm)
0.04” (1.0 mm)
XMax10
(in.mm)
(in.mm)
0.10" (2.5 mm)
Sensitivity
(dB @ 1W/1M)
(dB @ 1W/1M)
93.5 dB
Sensitivity
(dB @ 2.83V/1M)
(dB @ 2.83V/1M)
96.5 dB
Voice Coil Diameter
(in/mm)
(in/mm)
1.5" (38 mm)
Power Handling
(Watts RMS)
(Watts RMS)
75 Watts RMS
150 Watts Peak
150 Watts Peak
Crossover Frequency
(Hz)
(Hz)
—
Crossover Slope
(dB)
(dB)
—
Crossover Attenuation
(dB)
(dB)
—
Mounting Depth
(With Motor Cover)
(With Motor Cover)
3.51" (89.2 mm)
Mounting Depth
(No Motor Cover)
(No Motor Cover)
3.29” (83.46 mm)
Mounting Flange
6.4 x 9.3" (162.6 x 236.4 mm)
Cutout Diameter
5.53 x 8.3" (140.5 x 210.6 mm)
Front Clearance
0.43" (11 mm)
Grille/Trim Ring Included
No
Removable Motor Cover
Yes
Mounting Hardware
Yes
Included in the Box
(2) 4Ω 6x9" Speakers
(8) #8 Phillips Screws, 25 mm long
(3) 1/4” (0.25”) Quick Disconnect Terminals
(3) 3/16” (0.187”) Quick Disconnect Terminals
(1) Midrange Cutout Template
(8) #8 Phillips Screws, 25 mm long
(3) 1/4” (0.25”) Quick Disconnect Terminals
(3) 3/16” (0.187”) Quick Disconnect Terminals
(1) Midrange Cutout Template
Shipping Weight
12.2 Lbs. (5.53 Kg.)
