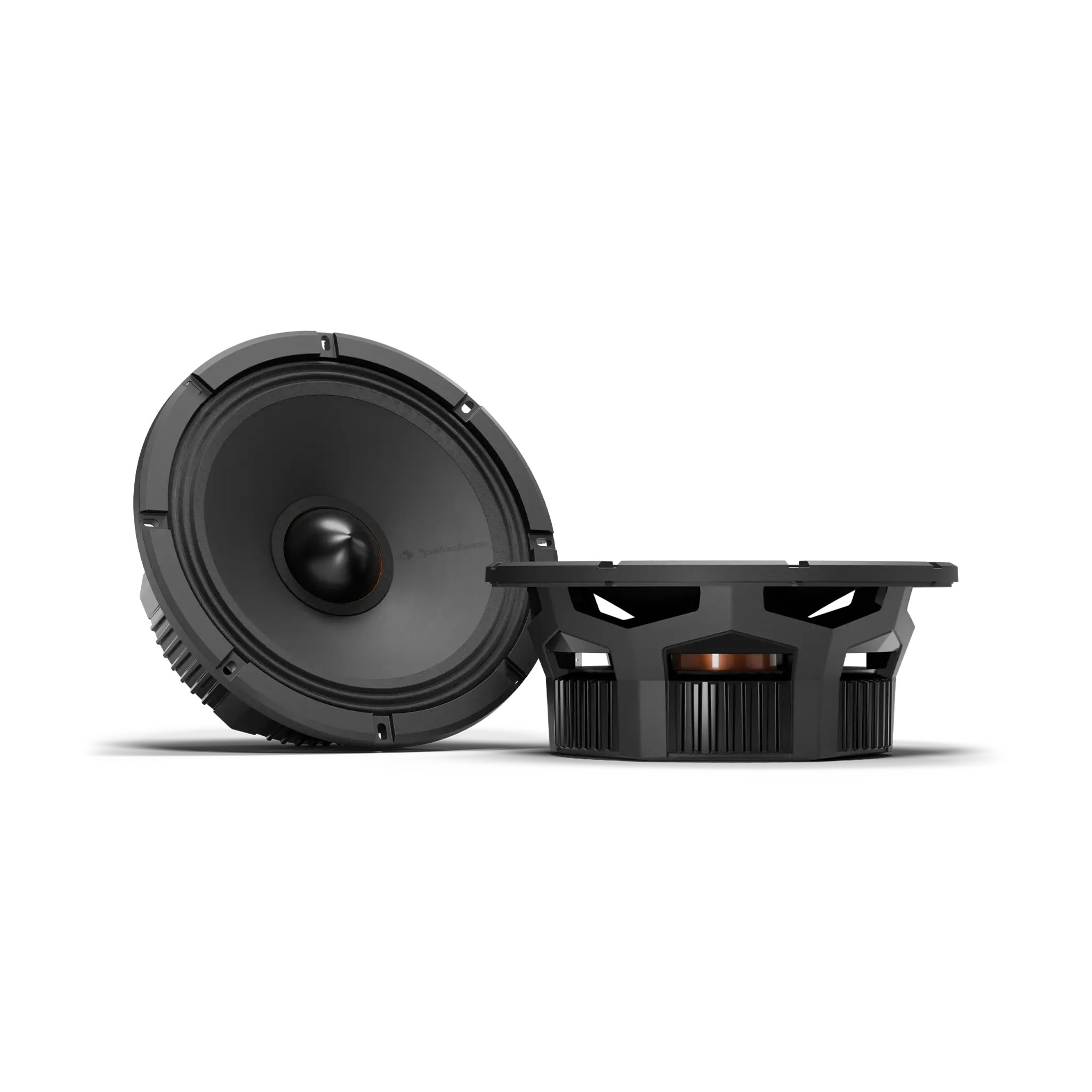

Punch Pro 8” 4-Ohm Midrange Speaker PPROV2-8

The PUNCH PRO series are engineered to be the loudest speakers in the line up for SPL, purpose built for competition vehicles where maximum output matters most. Featuring ultra durable materials, they deliver relentless volume with uncompromising reliability. With multiple size and configuration options, PUNCH PRO delivers aggressive output, rugged durability, and the unmistakable PUNCH sound for performance focused builds. Sold in pairs (2 each)

Performance Range



Amp Power (Watts)

Minimum

Optimum

Danger

Warranty Void

0255010012515075

Frequency Response

CTA-2031 Compliant

Speaker Type

Midrange/Midbass

Midrange Size
(Nominal Diameter)

8" (203.2 mm)

Nominal Impedance
(Ohms)

4Ω

Frequency Response
(Hz)

60Hz - 7kHz

Fs
(Hz)

80 Hz

Qts

0.40

Vas
(cu.ft./liters)

0.37 ft3 (10.5 liters)

XMax
(in./mm)

0.04” (1.0 mm)

XMax₁₀
(in.mm)

0.10" (2.5 mm)

Sensitivity
(dB @ 1W/1M)

94.5 dB

Sensitivity
(dB @ 2.83V/1M)

97.5 dB

Voice Coil Diameter
(in/mm)

2.0" (51 mm)

Power Handling
(Watts RMS)

75 Watts RMS
150 Watts Peak

Crossover Frequency
(Hz)

—

Crossover Slope
(dB)

—

Crossover Attenuation
(dB)

—

Mounting Depth
(With Motor Cover)

3" (76.3 mm)

Mounting Depth
(No Motor Cover)

2.8" (71.7 mm)

Mounting Flange

8.27" (210 mm)

Cutout Diameter

7.03" (178.5 mm)

Front Clearance

0.36" (9.2 mm)

Grille/Trim Ring Included

No

Removable Motor Cover

Yes

Mounting Hardware

Yes

Included in the Box

(2) 4Ω 8" Speakers
(8) #8 Phillips Screws, 25 mm long
(3) 1/4” (0.25”) Quick Disconnect Terminals
(3) 3/16” (0.187”) Quick Disconnect Terminals
(1) Midrange Cutout Template

Shipping Weight

14.8 Lbs. (6.71 Kg.)
