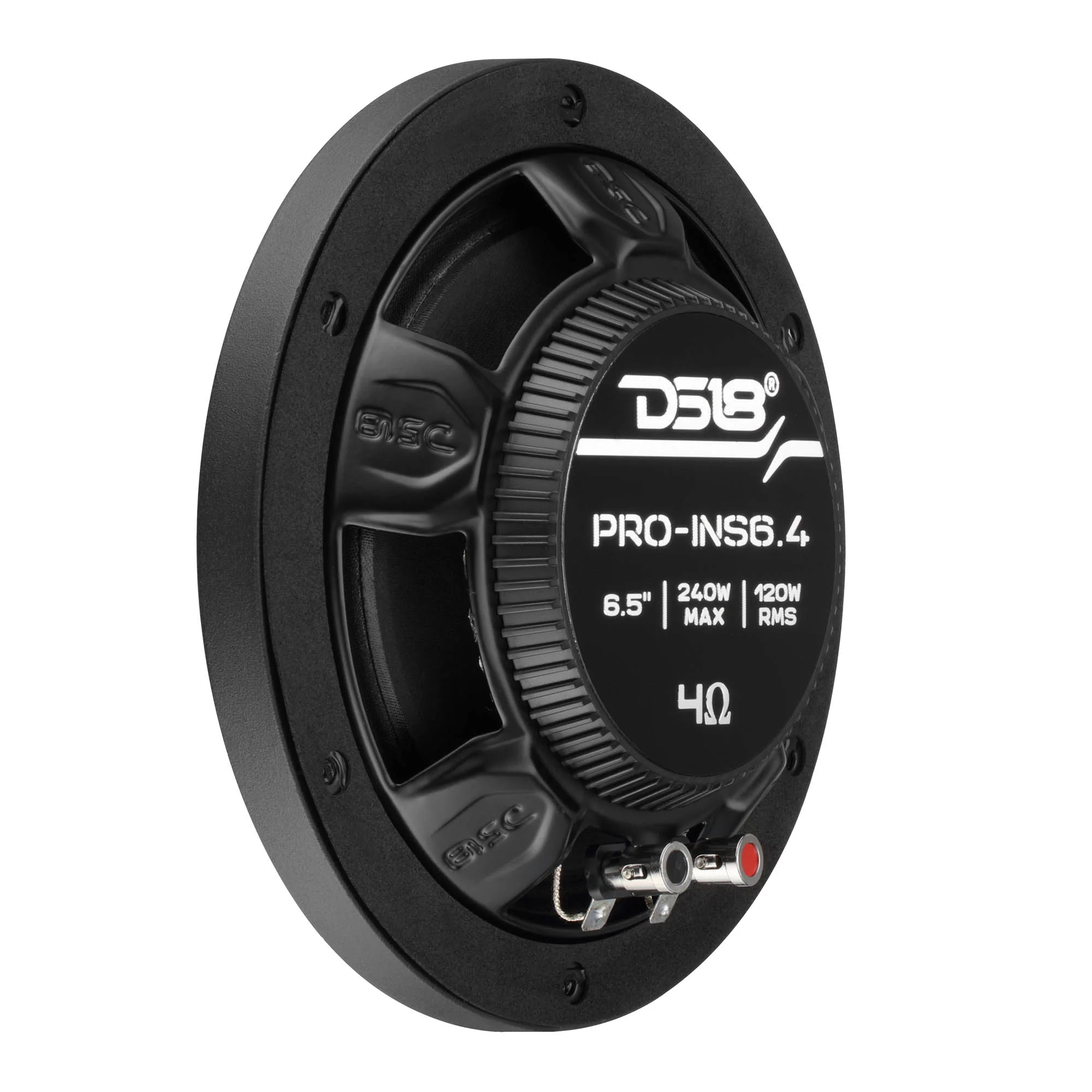

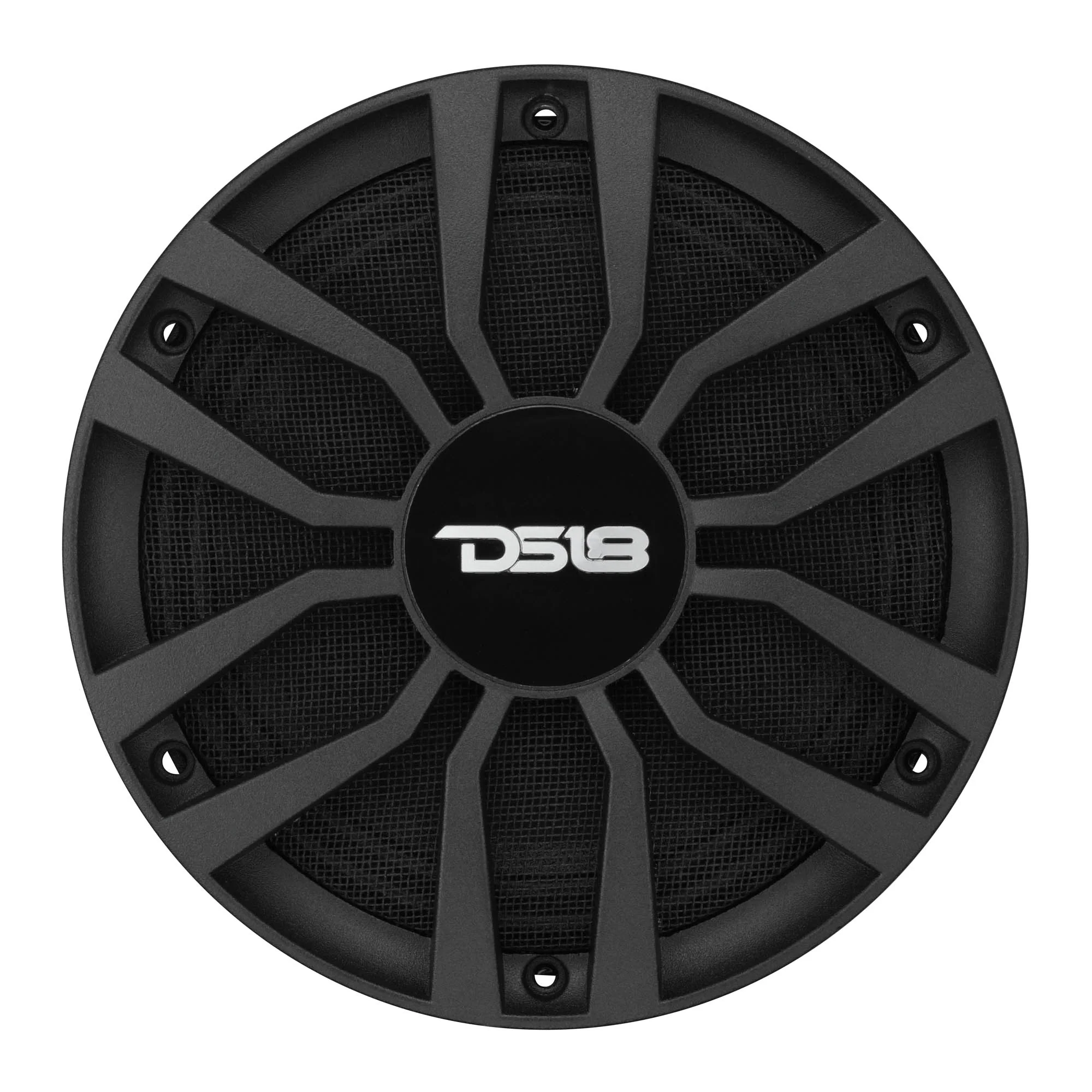

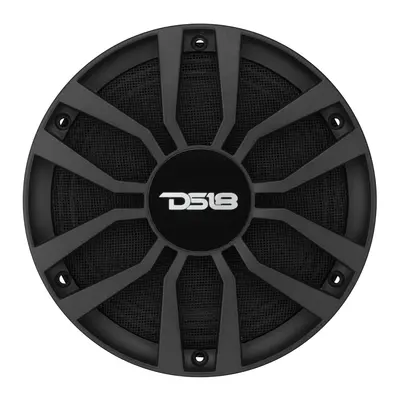

DS18 PRO-INS6.4 DS18 SLIM 6.5" MIDRANGE 120W SPEAKER

Brand: DS18
|
In stock
Ordered before counting..., delivered tomorrow
Login for prices
Article code PRO-INS6.4
EAN
Information

6.5” Ultra Slim Mid-Range Loudspeaker with Neodymium Magnet | 120W RMS 4-Ohm

Key Features

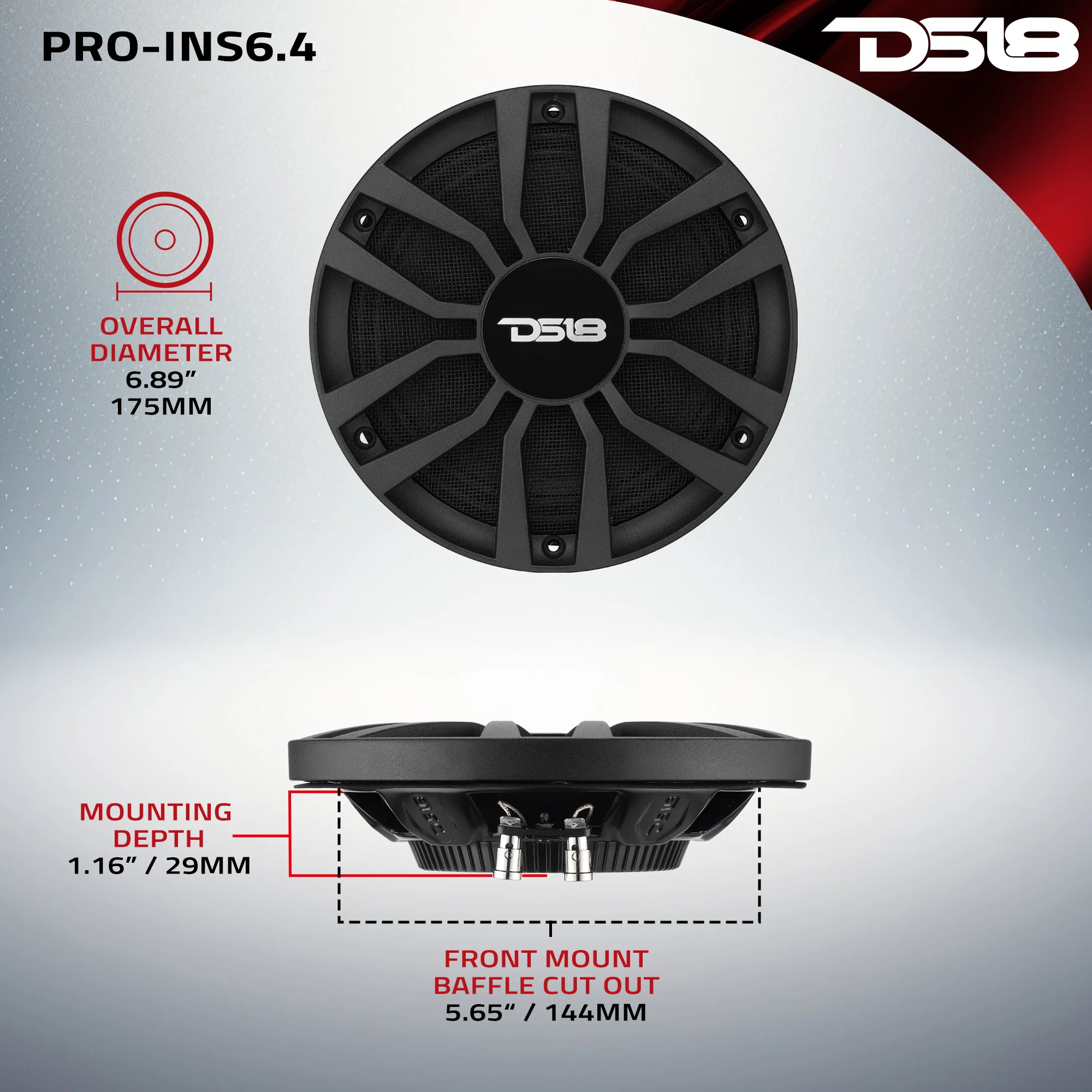

  • Ultra-Slim 1.16” mounting depth for shallow installs
  • 95dB sensitivity for high output with less power
  • 120W RMS / 240W MAX handling
  • Neodymium Motor for fast, accurate response
  • Unique steel mesh grille

Specifications

Nominal Diameter
6.5" / 167mm
Nominal Impedance
4 Ohms
RMS Power Handling
120W
MAX Power Handling
240W
Sensitivity (1w/1m)
95dB
Frequency Response
80Hz-6KHz
Recommended HI Pass Crossover
120Hz
Pair or Single
Single
Grill Included
Yes with Cloth Protection



Motor

Voice Coil Diameter
1.5" / 38.6mm
Voice Coil Former Material
KSV
Winding Material
CCAW
Cone Material
Paper
Surround Material
Cloth
Basket Material
Steel
Basket Color / Finish
Matte Black
Magnet Material
Neodymium
Magnet Weight
1.89 Oz



Thiele & Small Parameters

Equivalent Volume
7.961L / 0.281ft3
Excursion (one way)
2mm
Free Air Resonance
140Hz
Mechanical Factor
5.336
Electrical Factor
1.408
Total Factor
1.114
Mechanical Mass
8.868g
Mechanical Compliance
0.312mm/N
BL Factor
3
Voice Coil Inductance
0.119mH
Cone Area
132.73Cm2
DC Resistance
3.5 Ohms
Mechanical Mass w/o air
7.988g
