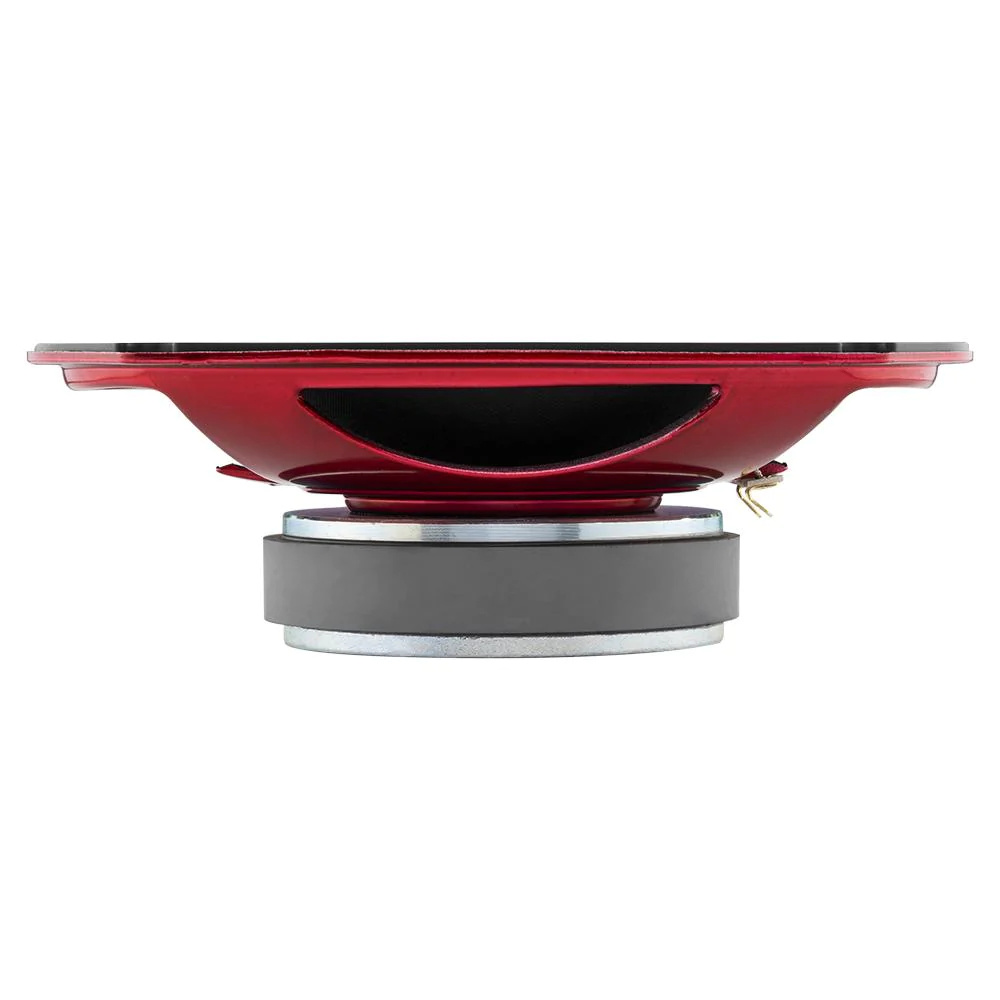

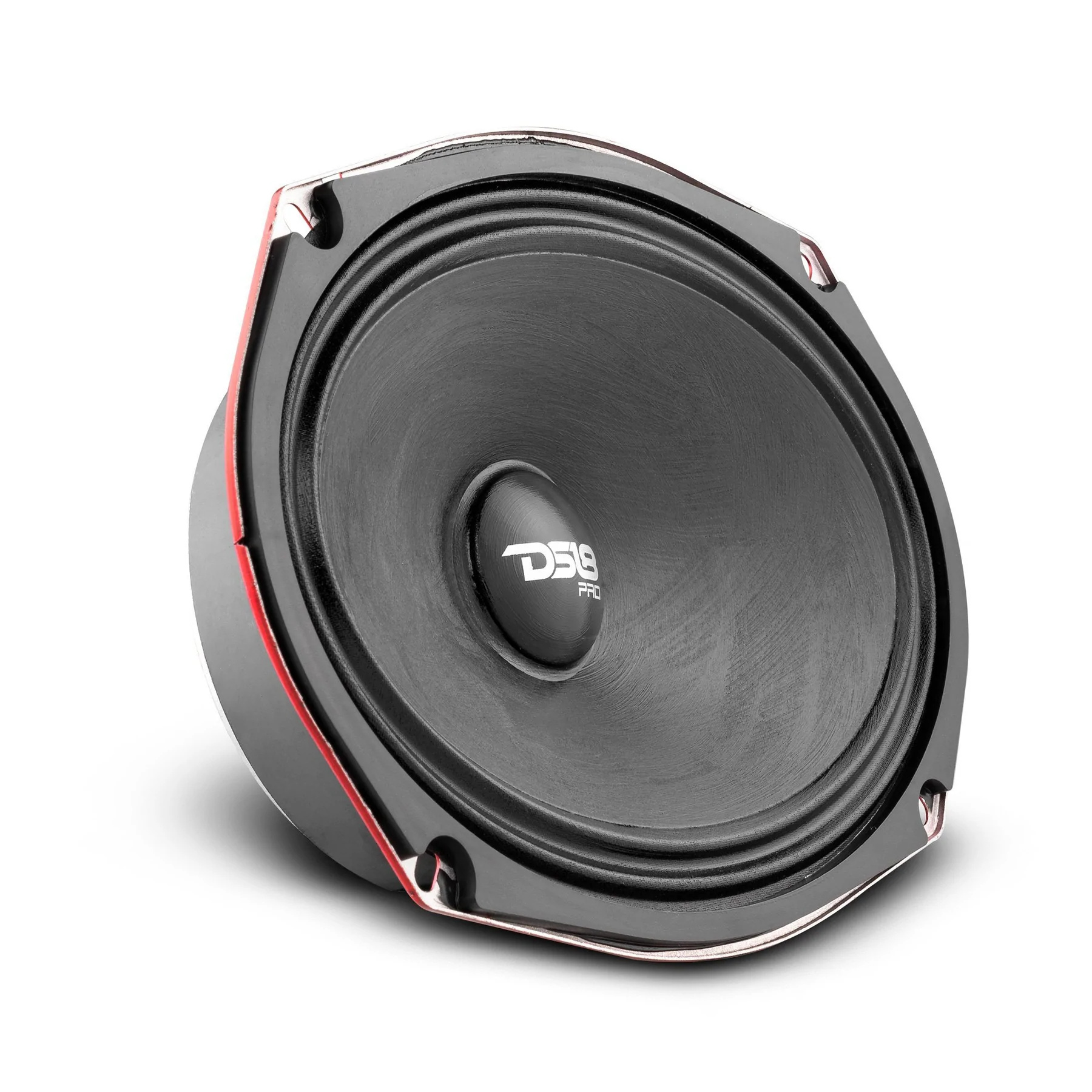

PRO-SM69.2 DS18 500W 6X9" PRO MIDRANGE SPK
Brand:
DS18
|
| Article code | PRO-SM69.2 |
| EAN | 810005186919 |
Information
DS18 PRO-SM69.2 6x9" Shallow Water Resistant Mid-Range Loudspeaker 550 Watts 2-Ohm
| Nominal Diameter | 6x9 |
| Nominal Impedance | 2 Ohms |
| RMS Power Handling | 250w |
| MAX Power Handling | 500w |
| Sensitivity (1w/1m) | 96dB |
| Frequency Response | 60Hz-5KHz |
| Recommended HI Pass Crossover | 120Hz |
| Motor | |
| Voice Coil Diameter | 1.5" |
| Voice Coil Former Material | Kapton |
| Winding Material | CCAW |
| Cone Material | Water Resistant Paper |
| Dust Cap Material | Water Resistant Paper |
| Surround Material | Coated Cloth |
| Basket Material | Steel |
| Magnet Material | Ferrite |
| Magnet Weight | 33 Oz |
| Displacement Volume | 0.0524L |
| Measurements | |
| Overall Diameter | 9.25x6.57"/ 235x167mm |
| Overall Depth | 2.91"/ 74mm |
| Front Mount Baffle Cutout | 8.6x6"/ 220x152mm |
| Mounting Depth | 2.68"/68mm |
| Motor Diameter | 4.72"/120mm |
