SPECS

SKU
PRO-TW920
Nominal Diameter
2.7" / 68.5mm
Nominal Impedance
4 Ohm
AES Power Handling
80W
Program Power Handling
160W
Peak Power Handling
320W
Sensitivity (1w/1m)
106dB
Frequency Response
2KHz-20KHz
Recommended Hi Pass Crossover
3KHz
Sold In Pair or Single
Single

BODY/FEATURES

Filter (Bass Blocker)
4.7uf/50v (included)
Body Material
Aluminum
Body Color / Finish
Anodized Black
Bullet Material
CNC Aluminum

MOTOR

Voice Coil Diameter
1.4" / 35.5mm
Voice Coil Former Material
KSV
Winding Material
CCAR
Diaphragm Material
Titanium
Magnet Material
Neodymium
Magnet Size
1.38" x 0.27"

MEASUREMENT

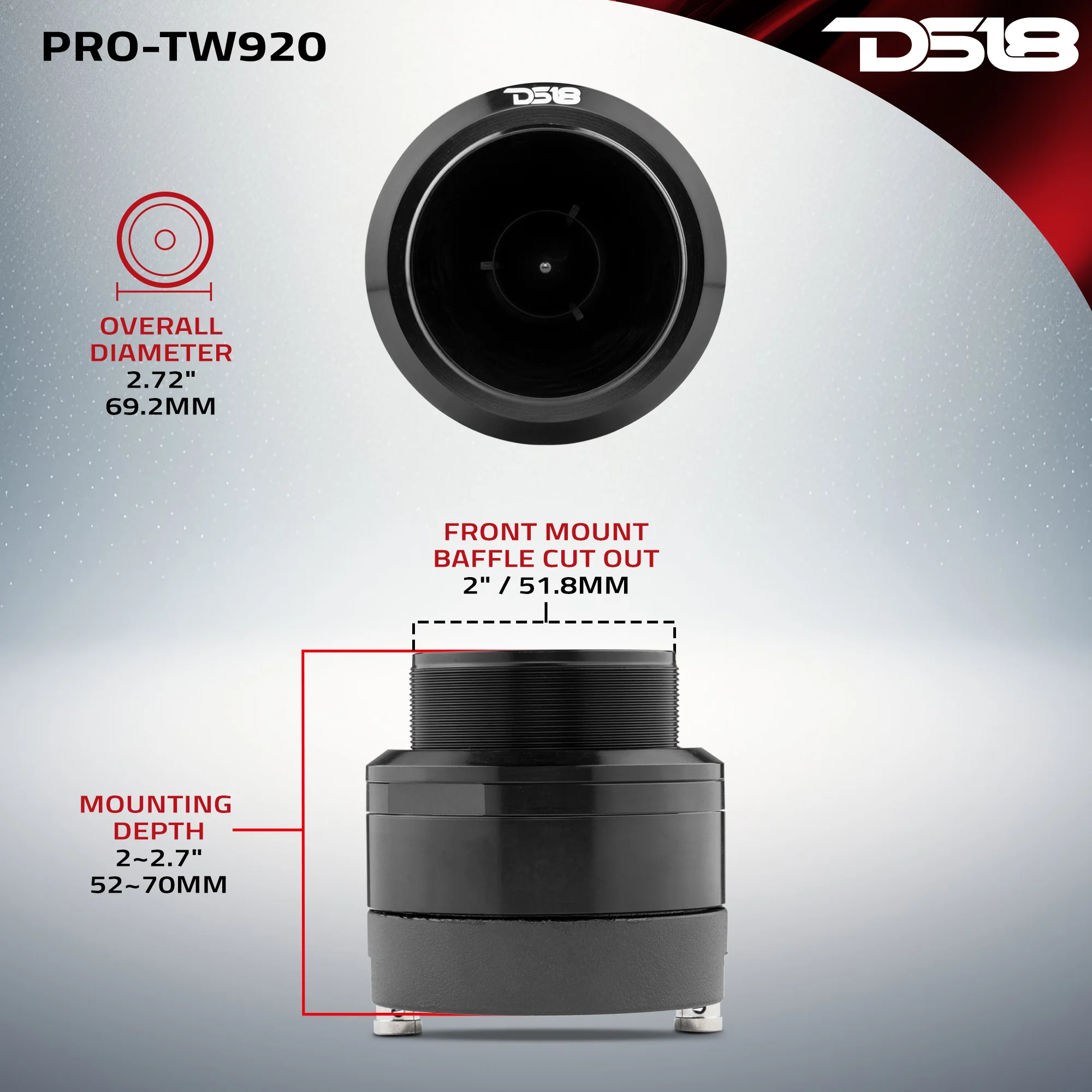

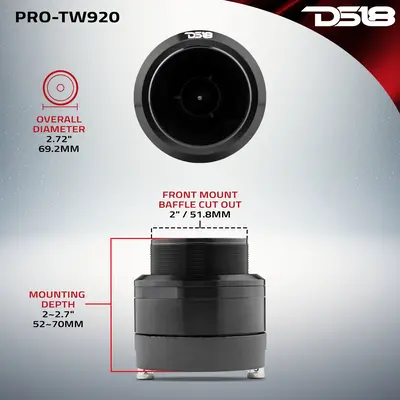

Overall Diameter
2.72" / 69.2mm
Overall Depth
3.01" / 76.6mm
Front Mount Baffle Cutout
2" / 51.8mm
Mounting Depth
2~2.7" / 52~70mm
Gross Single Unit Weight (lb)
2
Single Unit Box Dimensions W x L x H (Inches)
3.5 x 3 x 3.25
Quantity of Units in Master Carton
20
Gross Master Carton Weight (lb)
38
Master Carton Dimensions W x L x H (Inches)
15.75 x 7.75 x 7.25
