SPECS

SKU
PRO-TWN2
Nominal Diameter
3"
Nominal Impedance
4 Ohms
AES Power Handling
50W
Program Power Handling
100W
Peak Power Handling
200W
Sensitivity (1w/1m)
108 dB
Frequency Response
1KHz-20KHz
Recommended Hi Pass Crossover
2KHz
Pair or Single
Single

MOTOR

Voice Coil Diameter
1" / 25.4mm
Voice Coil Former Material
Kapton
Winding Material
CCAW
Diaphragm Material
Composite Polyimide
Magnet Material
Neodymium
Magnet Size
2.2x0.15" / 56x4mm
Magnet Weight
1.86 Oz
Body Material
Aluminum

MEASUREMENTS

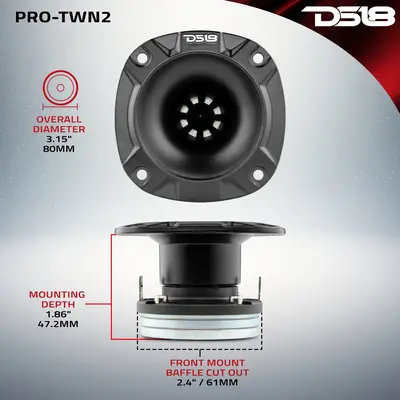

Overall Diameter
3.15" /80mm
Overall Depth
2.06" /52.2mm
Front Mount Baffle Cutout
2.4" /61mm
Mounting Depth
2.4" /47.2mm
Product Weight
1 lbs
Product Dimensions
3.25 x 3.25 x 2.5
M/C Weight
10.5 lbs
M/C Dimensions
10.75 x 7.25 x 6
M/C QTY
12
Sold In
Piece
