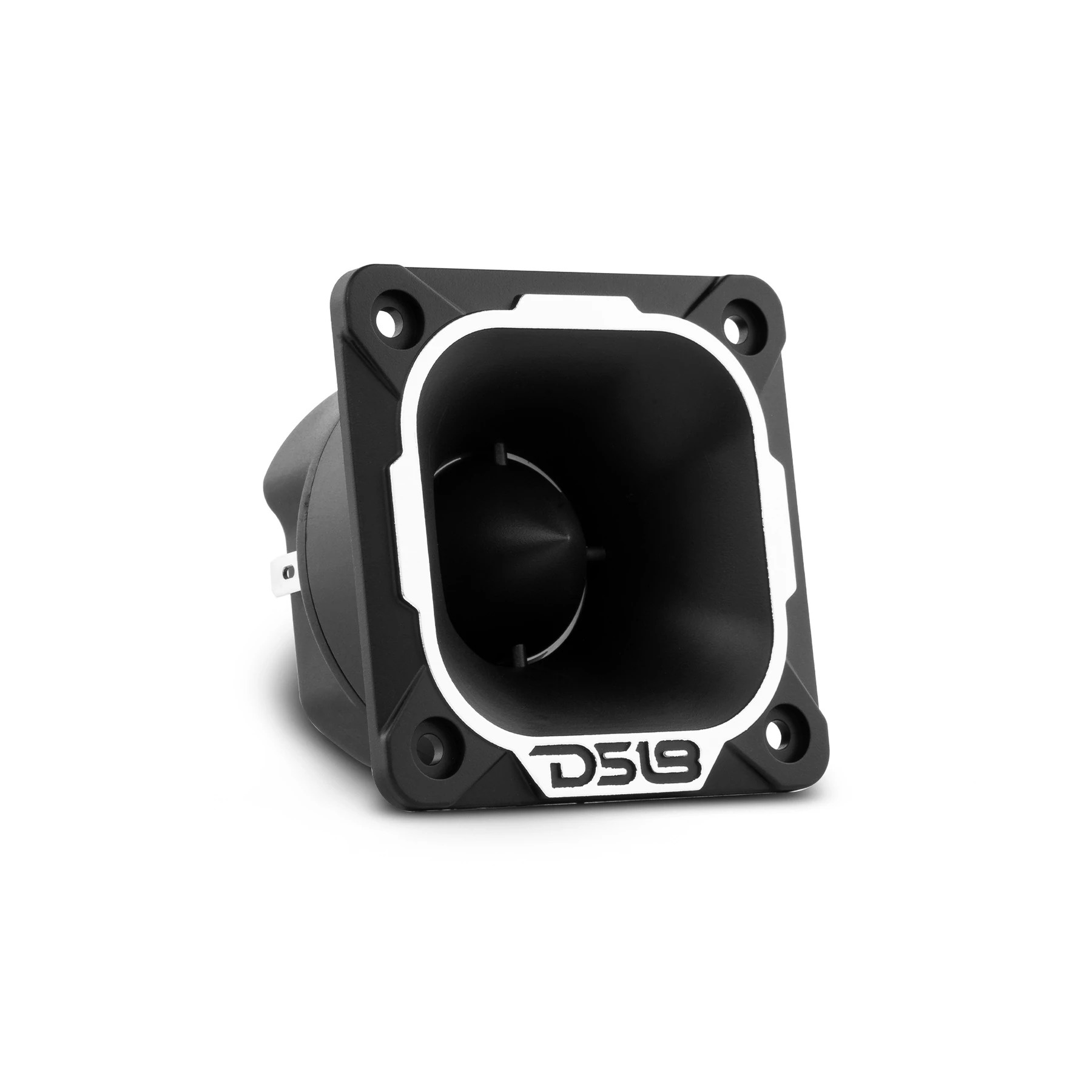

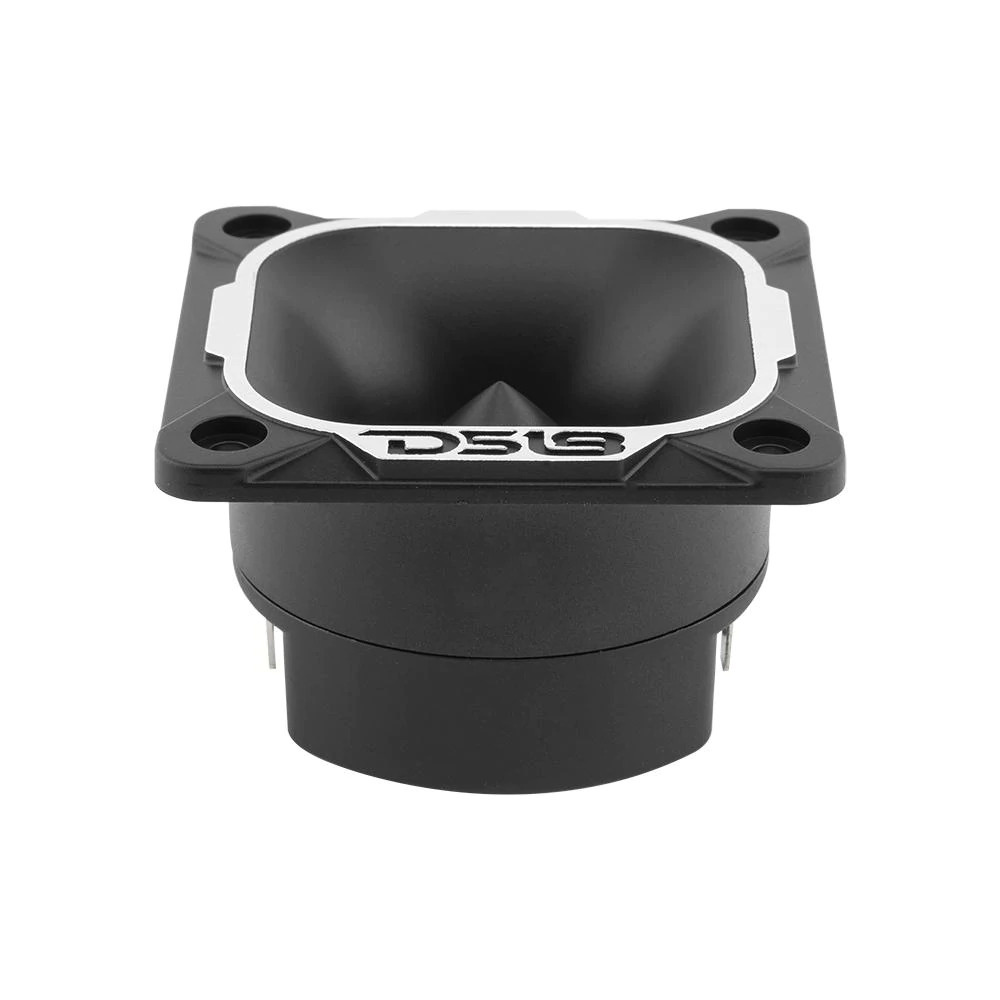

PRO-TWN3 DS18 200W 2.5" PRO NEO TWEETER
Brand:
DS18
|
| Article code | PRO-TWN3 |
| EAN | 810005188913 |
Information
DS18 PRO-TWN3 2.5"High Compression Neodymium Tweeter 250 Watts 1" Vc
| Nominal Diameter | 2.5” / 63 mm |
| Nominal Impedance | 4 Ohms |
| AES Power Handling | 50W |
| Program Power Handling | 100W |
| Peak Program Handling | 200W |
| Sensitivity (1w/1m) | 107dB |
| Frequency Response | 1.6KHz-20KHz |
| Recommended Hi Pass Crossover | 2 KHz |
| Pair or Single | Single |
| Filter Included | Yes, 2.2 uf |
| MOTOR | |
| Voice Coil Diameter | 1” / 25.4 mm |
| Voice Coil Former Material | Kapton |
| Winding Material | CCAW |
| Diaphragm Material | PEN |
| Magnet Material | Neodymium |
| Magnet Weight | 0.57 |
| Body Material | PC |
| MEASUREMENTS | |
| Overall Diameter | 2.48x2.48" / 63x63 mm |
| Overall Depth | 1.49" / 37.8 mm |
| Front Mount Baffle Cutout | 2.12" / 54 mm |
| Mounting Depth | 1.32" / 33.5 mm |
