Back to Home | PRO-X6.4BM DS18 PRO 500W 6.5" MIDRANGE

DS18 PRO-X6.4BM DS18 PRO 500W 6.5" MIDRANGE

Brand: DS18
|
In stock
Ordered before counting..., delivered tomorrow
Login for prices
Add to favorites
Article code PRO-X6.4BM
EAN 663593058232
Information

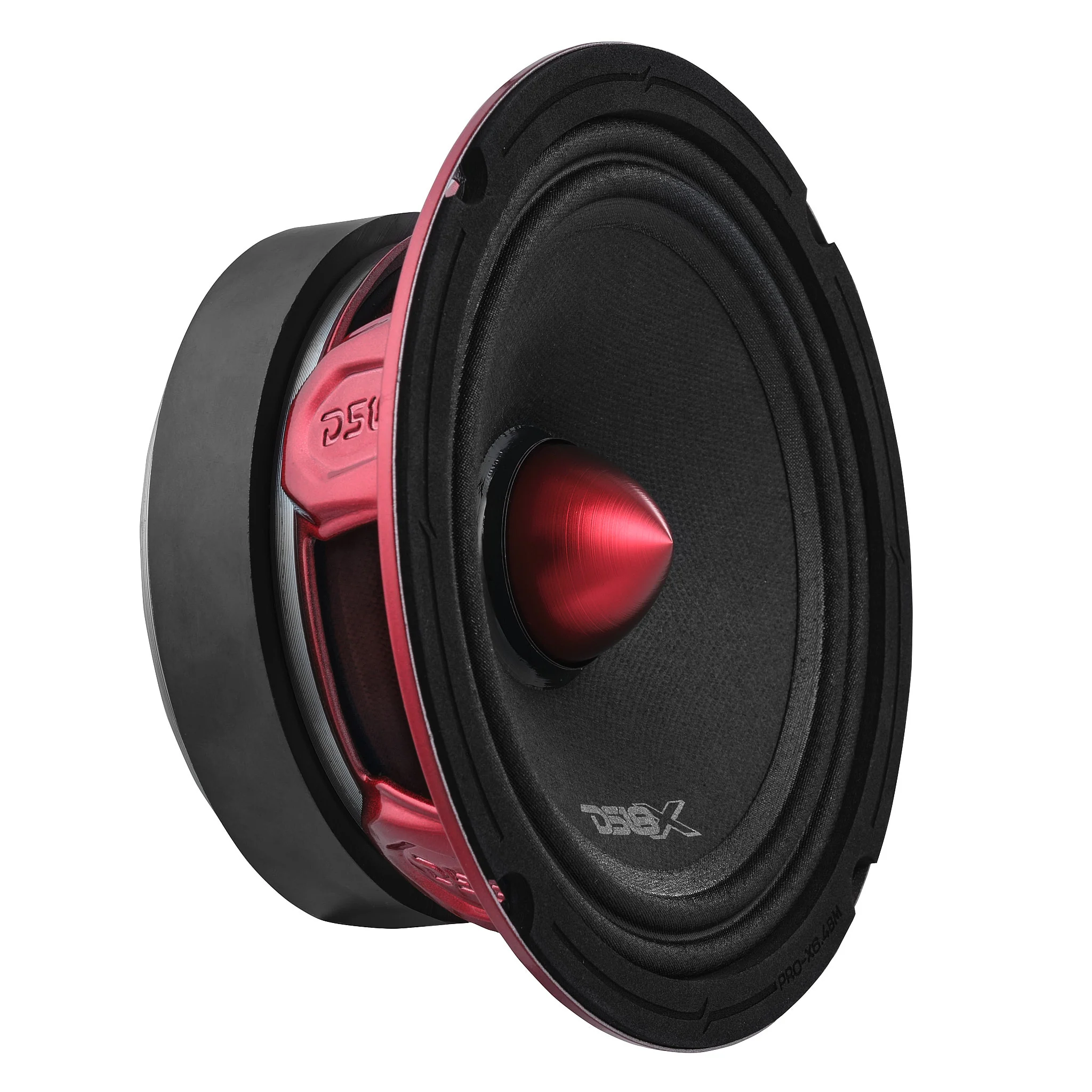

PRO-X 6.5" Mid-Range Loudspeaker with Bullet | 250W RMS 4-Ohm

Key Features

  • 6.5" Mid-Range w/Bullet
  • MAX Power: 500 Watts
  • RMS Power: 250 Watts
  • Impedance: 4-Ohm
  • Ferrite Magnet
  • 96dB

Technical Data - Manual

  DOWNLOAD THE USER MANUAL



SPECS

SKU
PRO-X6.4BM

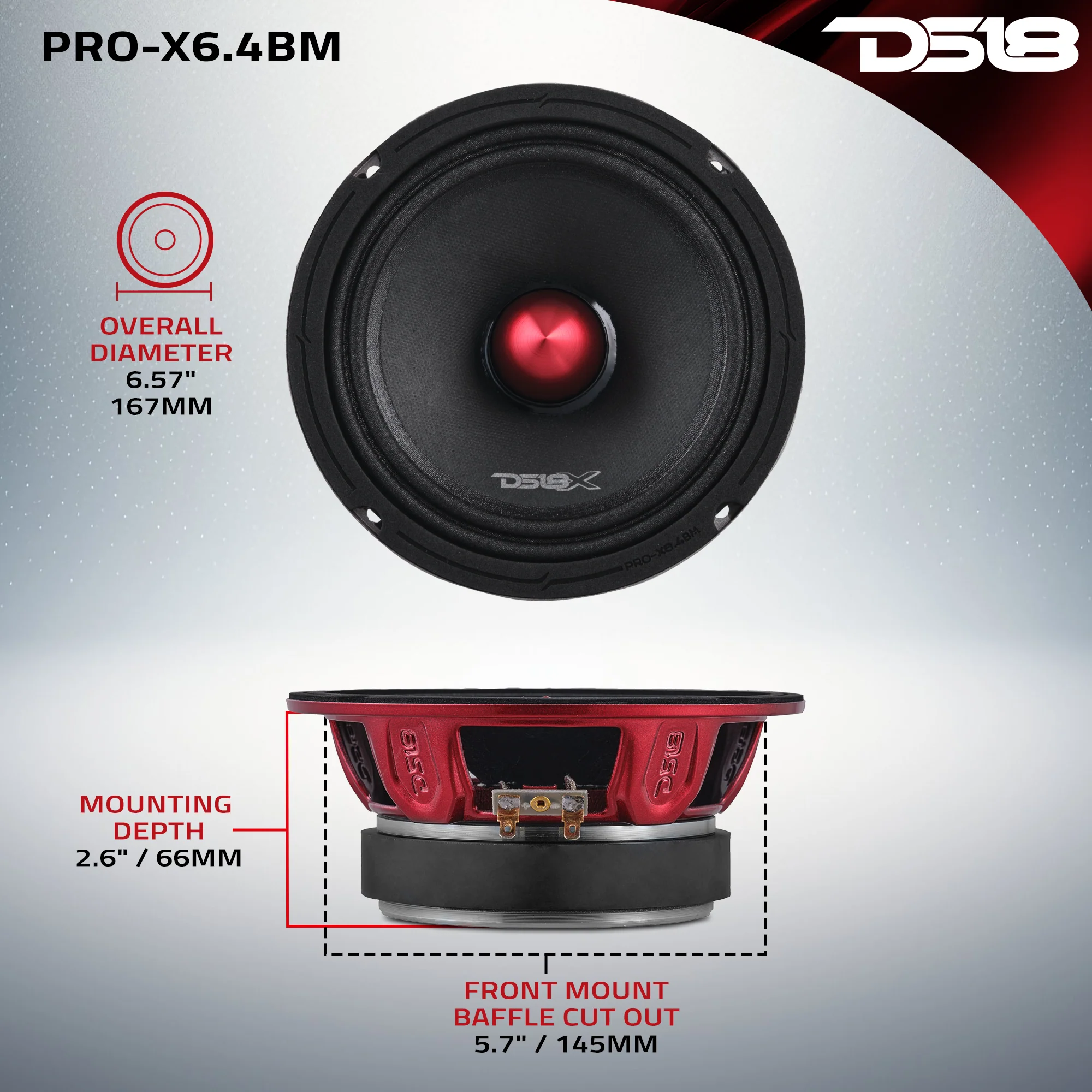

Nominal Diameter
6.5" / 165mm
Nominal Impedance
4 ohms
RMS Power Handing
250W
Maximum Power Handing
500W
Sensitivity (1w/1m)
95dB
Frequency Response
100Hz - 10KHz
Recommended Hi Pass Crossover
140Hz



SPECS

Voice Coil Diameter
1.5" / 38.6mm
Voice Coil Former Material
Kapton
Winding Material
CCAW
Basket Material
Steel
Magnet Weight
30 oz



THIELE & SMALL PARAMETERS

Vas
2.64 L / 0.093 ft3
Xmax
8.2mm
Fs
180Hz
Qms
7.82
Qes
0.65
Qts
0.6
Re
3.3 ohms
