PRO-X694BM DS18 275W 6X9 PRO SPEAKER 4OHM
Brand:
DS18
|
| Article code | PRO-X694BM |
| EAN | 810005181877 |
Information
PRO-X 6X9 Mid-Range Loudspeaker with Bullet and Grill 550 Watts 4-Ohm (1 Speaker)
| Model: | PRO-X694BM |
| Type: | Midrange Loudspeaker |
| Size: | 6X9" |
| RMS Power: | 275W |
| MAX Power: | 550W |
| Frequency Response: | 65Hz-12KHz |
| Impedance: | 4 ohm |
| Sensitivity: | 98dB |
| Materials | |
| Surround: | Cloth Edge |
| Frame: | Red Steel Basket |
| Cone: | Non-Pressed Paper Cone |
| Magnet: | Ferrite |
| Voice Coil Wire: | CCAW |
| Measurements | |
| Voice Coil Size: | 1.5" |
| Magnet Weight: | 27 oz. |

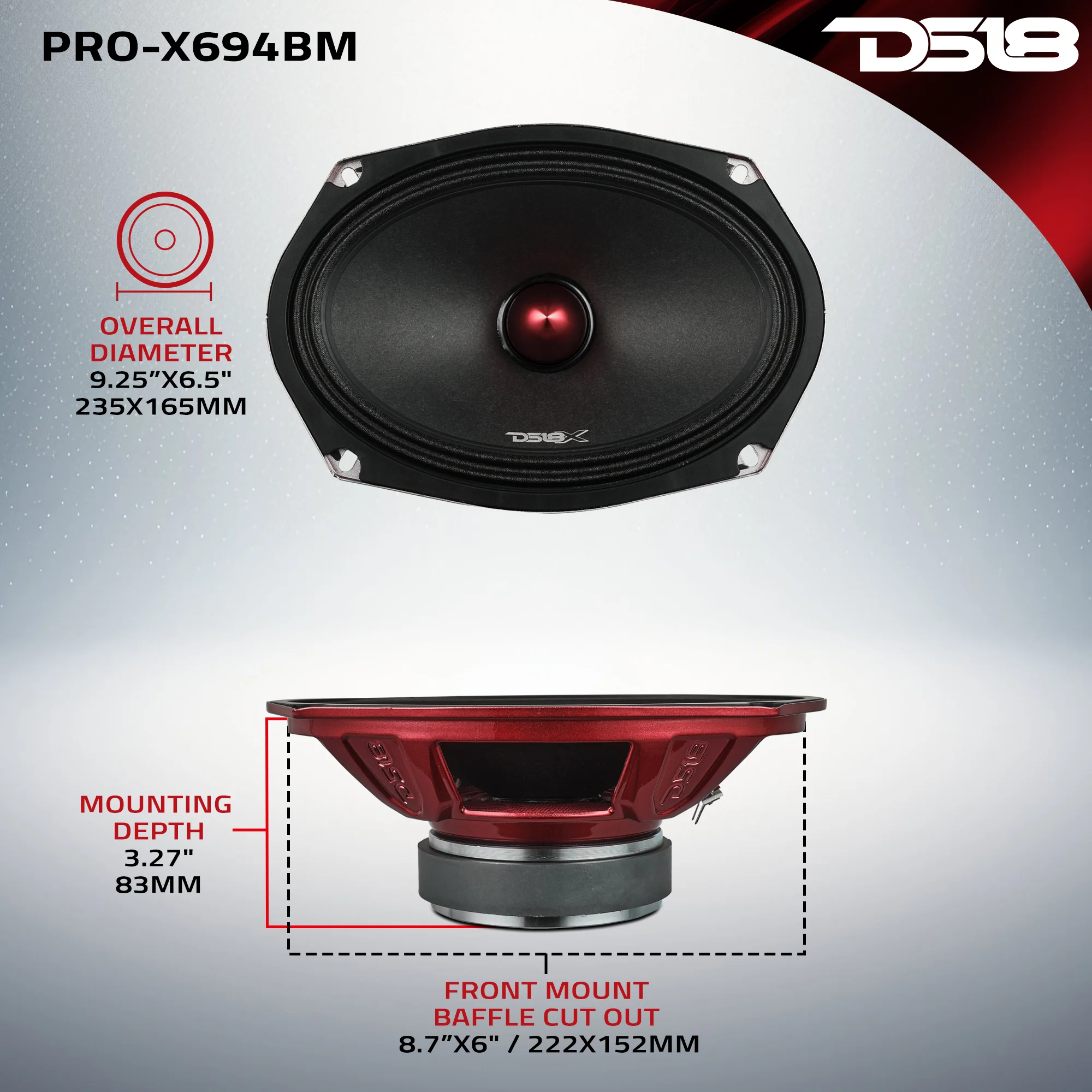

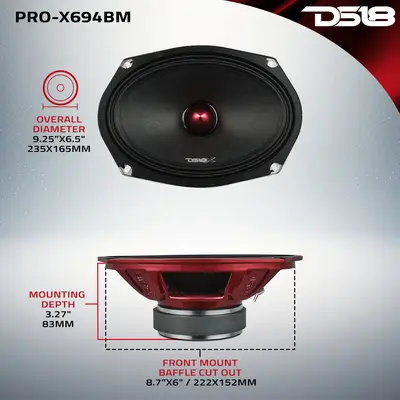

| Mounting Depth: | 3.35" |
| Cut-Out Dimension: | 8.62 x 5.91" |
| Parameters | |
| Vas | 14.69 LTR |
| Xmax | 9.2 mm |
| Fs | 105 Hz |
| Qms | 7.382 |
| Qes | 0.941 |
| Qts | 0.835 |
| Re | 3.2 ohms |
