Back to Home | PRO-X8.4BMPK DS18 PRO 8" MID /1" TWEETER COMBO

DS18 PRO-X8.4BMPK DS18 PRO 8" MID /1" TWEETER COMBO

Brand: DS18
|
In stock
Ordered before counting..., delivered tomorrow
Login for prices
Add to favorites
Article code PRO-X8.4BMPK
EAN 810005182867
Information

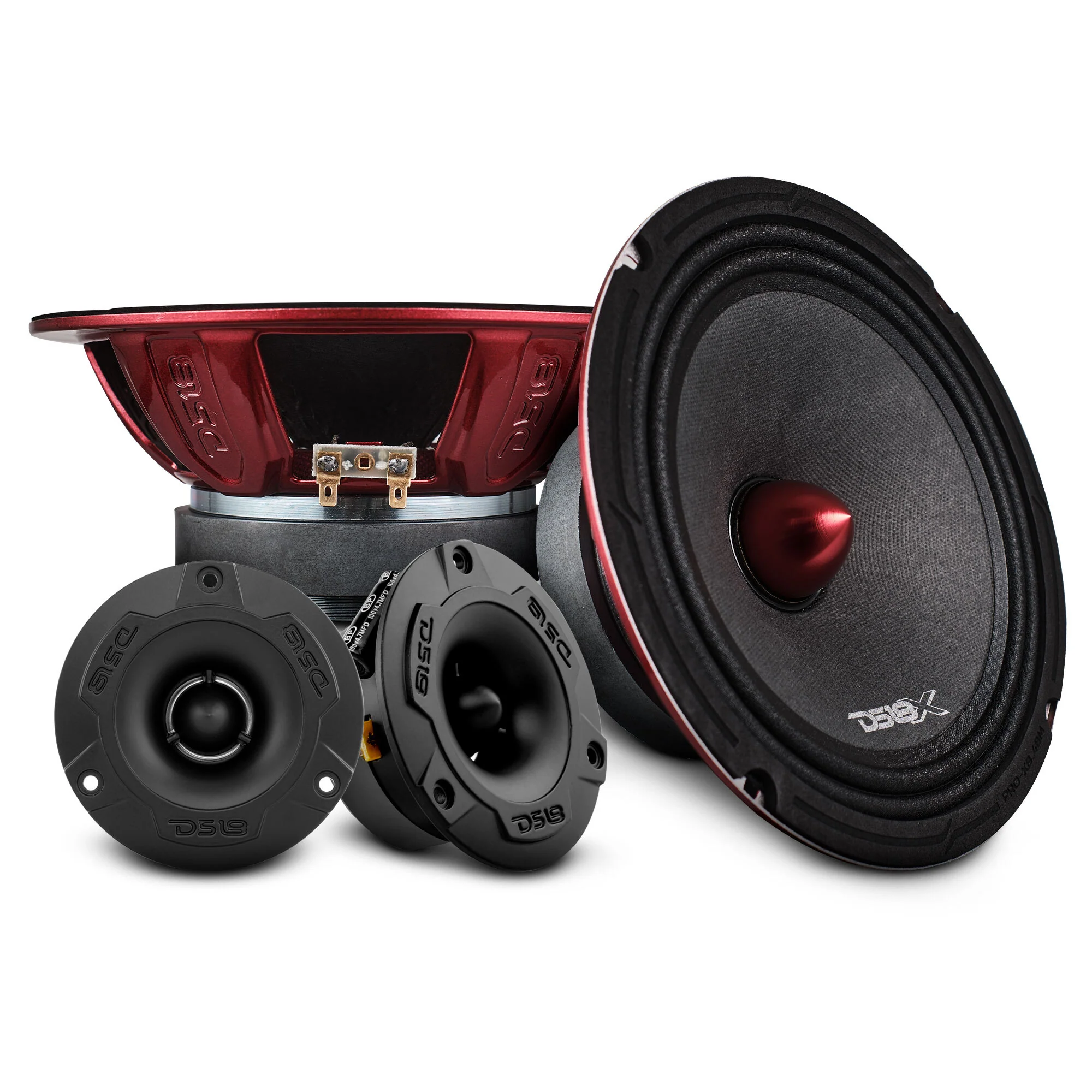

Pro Audio Loudspeakers & Tweeters Package - Pair PRO-X8.4BM + Pair of PRO-TW1X/BK

Key Features

  • 8" Mid-Range and Tweeter Package

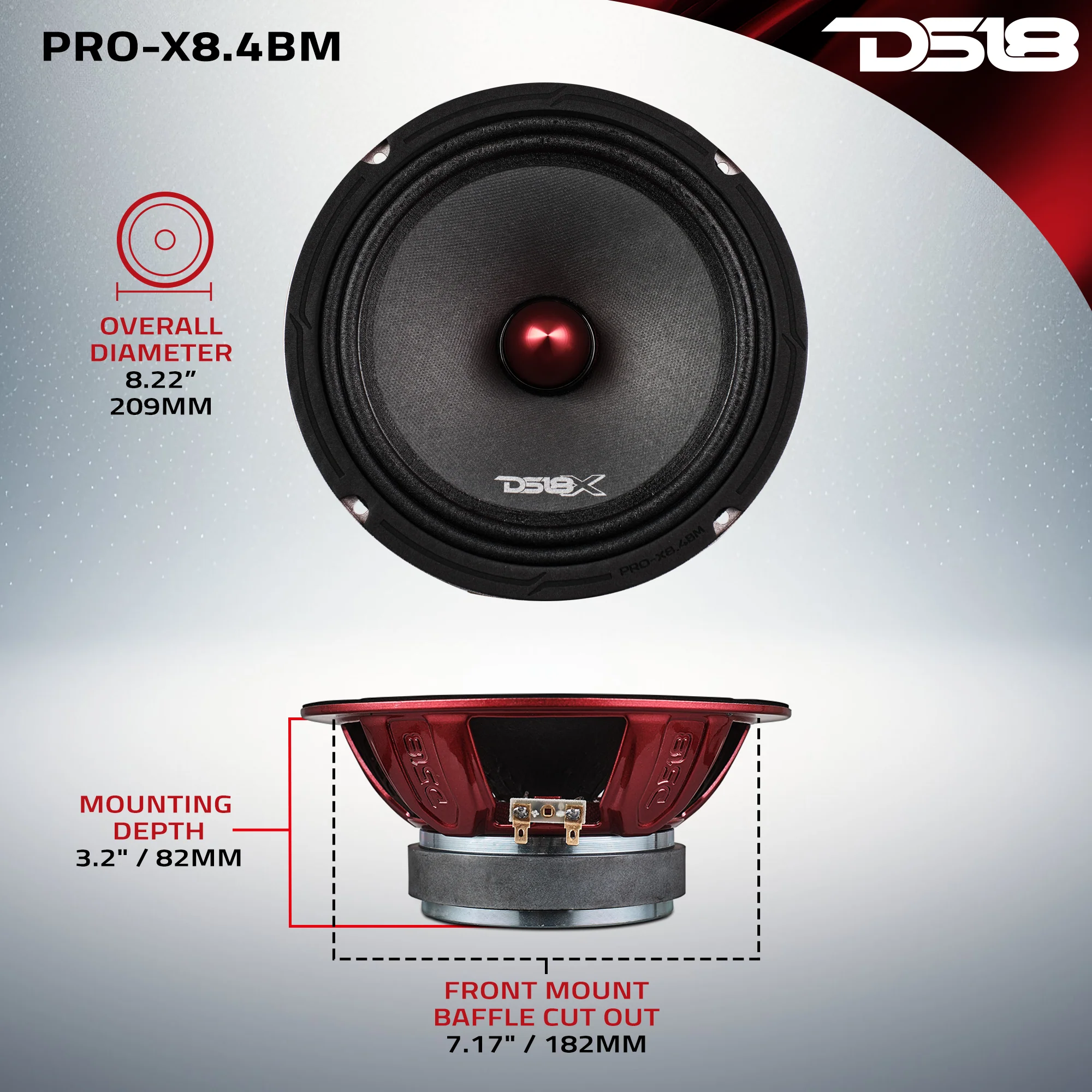

  • 8" Mid-Range X 2 (PRO-X8.4BM) 97dB

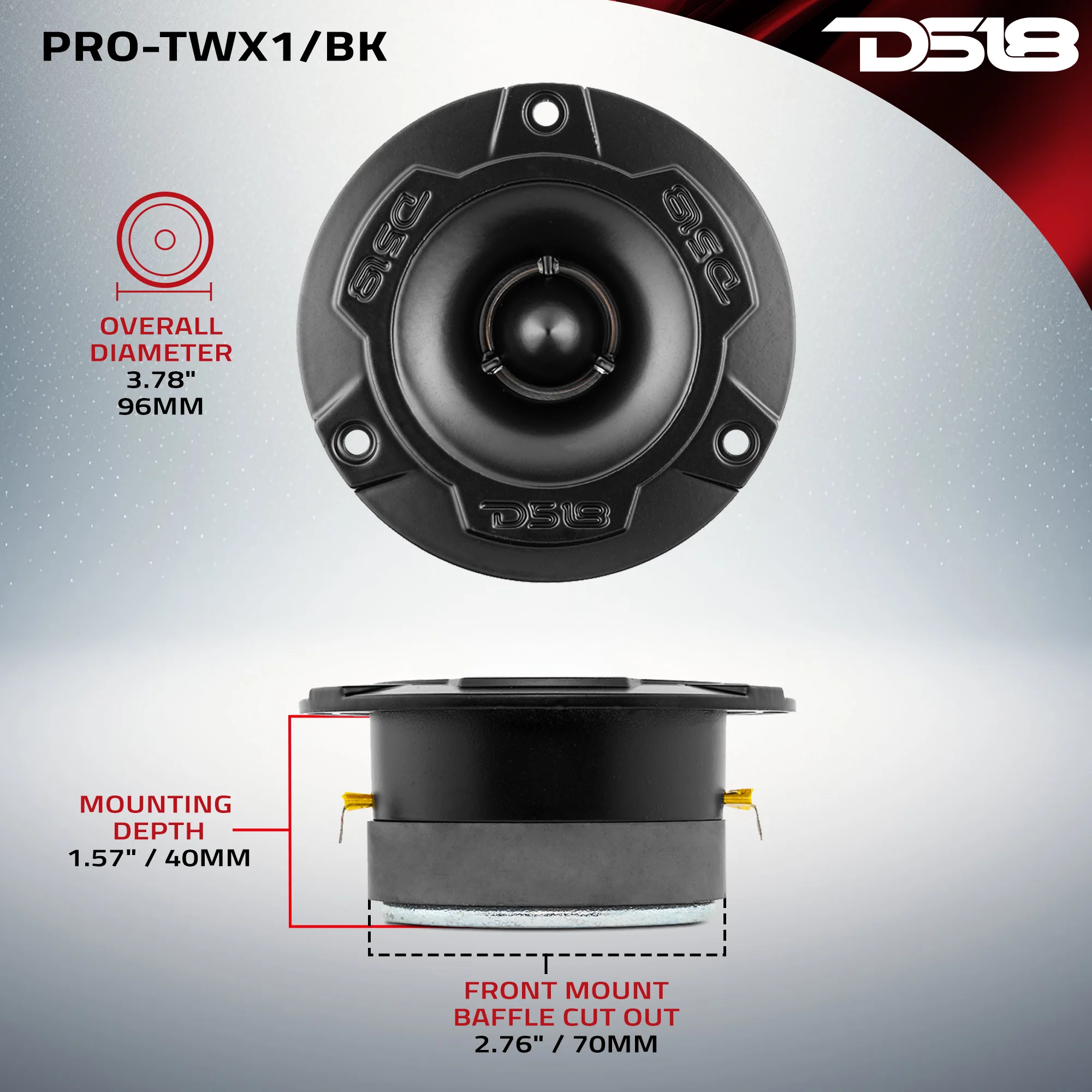

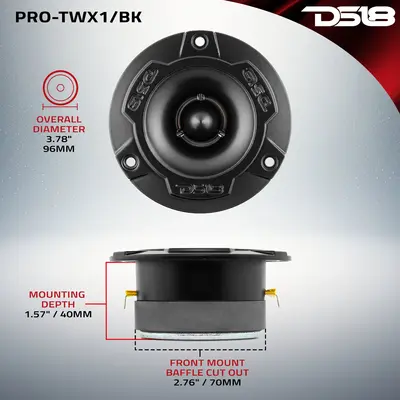

  • 3.78" Super Bullet Tweeter X 2 (PRO-TWX1/BK) 103dB
  • MAX Power: 550 Watts(W) 240 Watts(T)
  • RMS Power: 275 Watts(W) 120 Watts(T)
  • Ferrite Magnet / Impedance: 4-Ohm

Technical Data - Manual

  DOWNLOAD THE USER MANUAL



SPECS

SKU
PRO-X8.4BMPK
Nominal Diameter
8" / 203.2 mm
Nominal Impedance
4 ohms
RMS Power Handing
275 WATTS
Maximum Power Handing
550 WATTS
Sensitivity (1w/1m)
96 dB
Frequency Response
93Hz-16KHz
Recommended Hi Pass Crossover
100 Hz



SPECS

Voice Coil Diameter
1.5" / 38.6 mm
Voice Coil Former Material
Kapton
Winding Material
CCAW
Basket Material
Steel
Magnet Weight
30 oz



THIELE & SMALL PARAMETERS

Vas
26.60 LTR
Xmax
9.3 mm
Fs
93 Hz
Qms
9.275
Qes
0.589
Qts
0.552
Re
3.2 ohms
