SPECS

SKU
PRO-ZXI6.4BM
Nominal Diameter
6.5" / 165.1mm
Nominal Impedance
4 OHMS
RMS Power Handing
300 Watts
Maximum Power Handing
600 Watts
Sensitivity (1w/1m)
97dB
Frequency Response
100Hz - 10Khz
Recommended Hi Pass Crossover
160Hz

SPECS

Voice Coil Diameter
1.5" / 38.6mm
Voice Coil Former Material
Glass Fiber
Winding Material
CCAW
Basket Material
Aluminum
Magnet Weight
30 + 3 Oz

THIELE & SMALL PARAMETERS

Vas
4.7L / 0.165ft3
Xmax
7.2mm
Fs
150Hz
Qms
9.696
Qes
0.589
Qts
0.556
Re
3 ohm

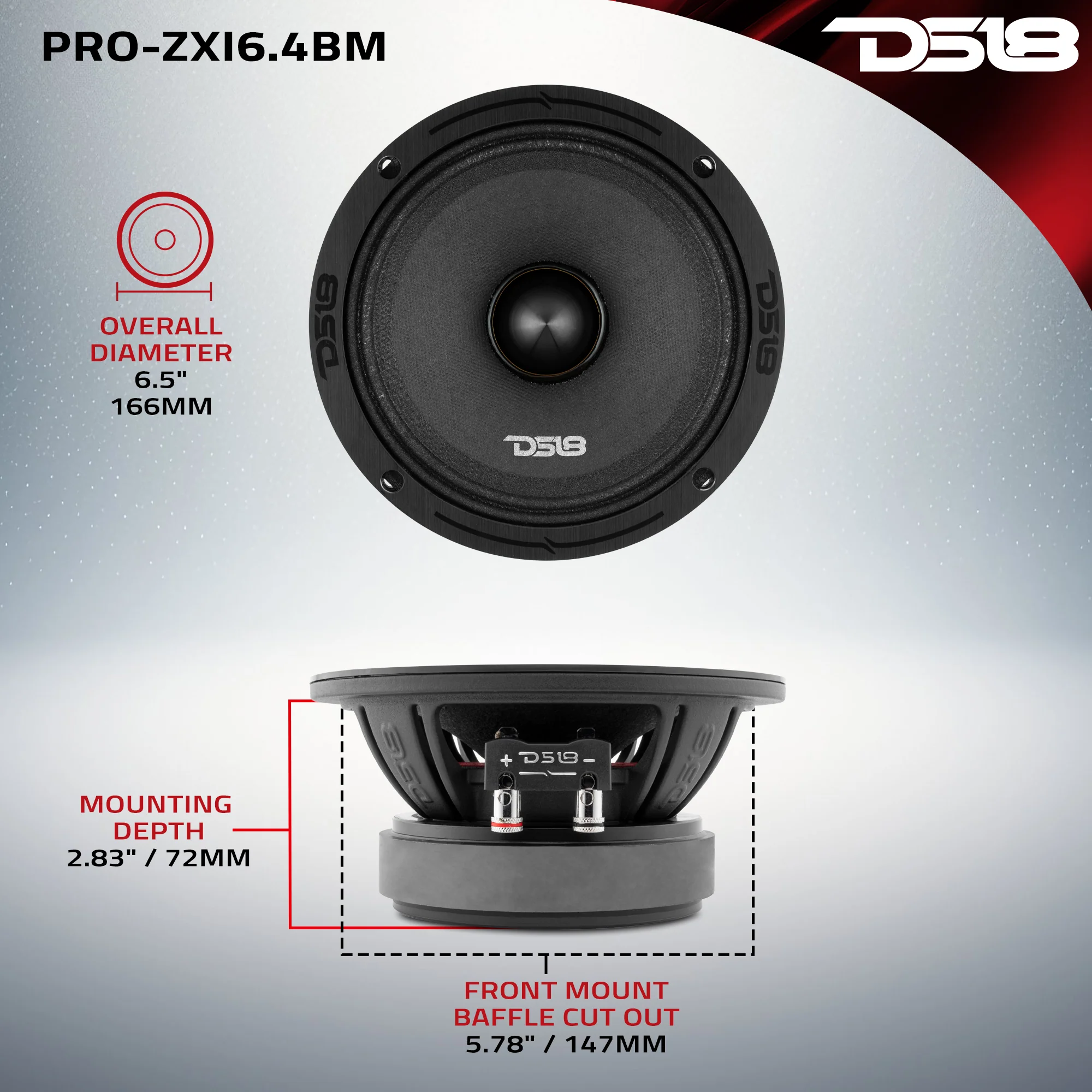

MEASUREMENTS

Overall Diameter
6.5" / 166mm
Front Mount Baffle Cutout
5.78" / 147mm
Mounting Depth
2.83" / 72mm
Overall Depth
3.16" / 80.5mm
Product Weight
5.5 lbs
Product Dimensions
7.25 x 7.25 x 3.75
M/C Weight
45.5 lbs
M/C Dimensions
15 x 15 x 8
M/C QTY
8
Sold In
Piece
