SPECS

SKU
PRO-ZXI694BM
Nominal Diameter
6x9" / 152.4 x 228.6mm
Nominal Impedance
4 OHMS
RMS Power Handing
300 Watts
Maximum Power Handing
600 Watts
Sensitivity (1w/1m)
98dB
Frequency Response
80Hz - 12.5KHz
Recommended Hi Pass Crossover
100 Hz

SPECS

Voice Coil Diameter
1.5" / 38.6mm
Voice Coil Former Material
Glass Fiber
Winding Material
CCAW
Basket Material
Aluminum
Magnet Weight
30 + 3 Oz

THIELE & SMALL PARAMETERS

Vas
14.9L / 0.5271f
Xmax
7.2mm
Fs
100Hz
Qms
10.64
Qes
0.439
Qts
0.421
Re
3.6 ohms

MEASUREMENTS

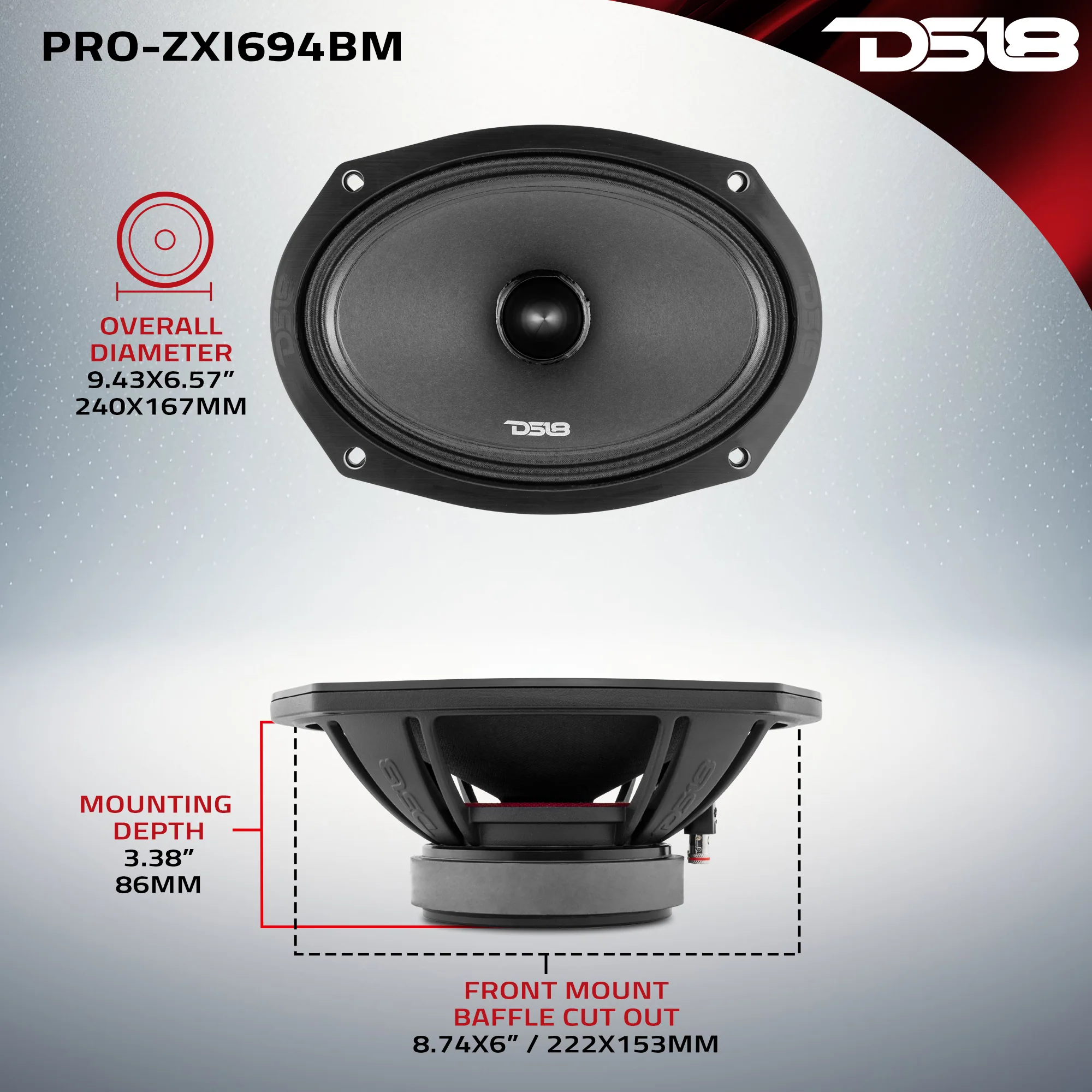

Overall Diameter
9.43x6.57" / 240x167mm
Front Mount Baffle Cutout
8.74x6" / 222x153mm
Mounting Depth
3.38" / 86mm
Overall Depth
3.7" / 94mm
Product Weight
6 lbs
Product Dimensions
10.25 x 7.25 x 4.25
M/C Weight
49 lbs
M/C Dimensions
21 x 15.25 x 9.5
M/C QTY
8
Sold In
Piece
