SPECS

SKU
PRO-ZXI8.4BM
Nominal Diameter
8"
Nominal Impedance
4 OHMS
RMS Power Handing
350 Watts
Maximum Power Handing
700 Watts
Sensitivity (1w/1m)
99dB
Frequency Response
80Hz - 12.5KHz
Recommended Hi Pass Crossover
125Hz

SPECS

Voice Coil Diameter
1.5" / 38.6mm
Voice Coil Former Material
Glass Fiber
Winding Material
CCAW
Basket Material
Aluminum
Magnet Weight
30 + 3 Oz

THIELE & SMALL PARAMETERS

Vas
14.67L / 0.512ft3
Xmax
7.6mm
Fs
144Hz
Qms
10.07
Qes
0.823
Qts
0.761
Re
3.1 ohm

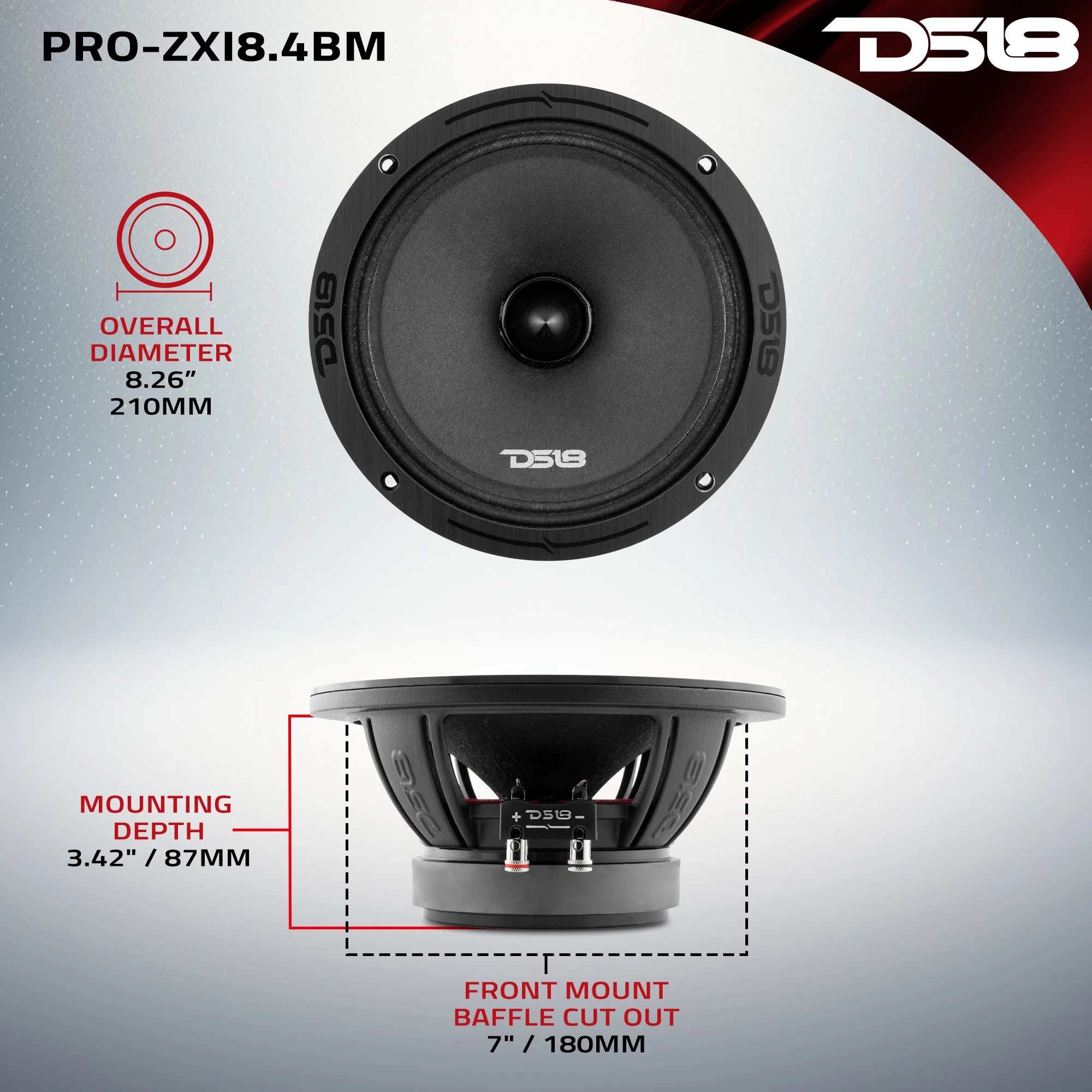

MEASUREMENTS

Overall Diameter
8.26" / 210mm
Front Mount Baffle Cutout
7" / 180mm
Mounting Depth
3.42" / 87mm
Overall Depth
3.77" / 96mm
Product Weight
6 lbs
Product Dimensions
9 x 9 x 4.25
M/C Weight
51.5 lbs
M/C Dimensions
18.5 x 18.5 x 9.5
M/C QTY
8
Sold In
Piece
