PROJECT360 8” High-Sensitivity Mid-High Loudspeaker - 300W RMS 4-Ohm - Rotating Recone Design For Quick Repair

• Specifications
• Nominal Diameter: 8" / 203mm
• Nominal Impedance: 4 Ohms
• RMS Power Handling: 300 W
• MAX Power Handling: 600 W
• Sensitivity (1w/1m): 100.2 dB
• Frequency Response: 90Hz – 17kHz
• Recommended High-Pass Crossover: 120 Hz
• Sold As: Single Unit
• Grill Included: No
• Demodulating Rings: Yes
• Improved Heat Dissipation: No
• Cone Shape: Curvilinear
• Speaker Terminals: Spade

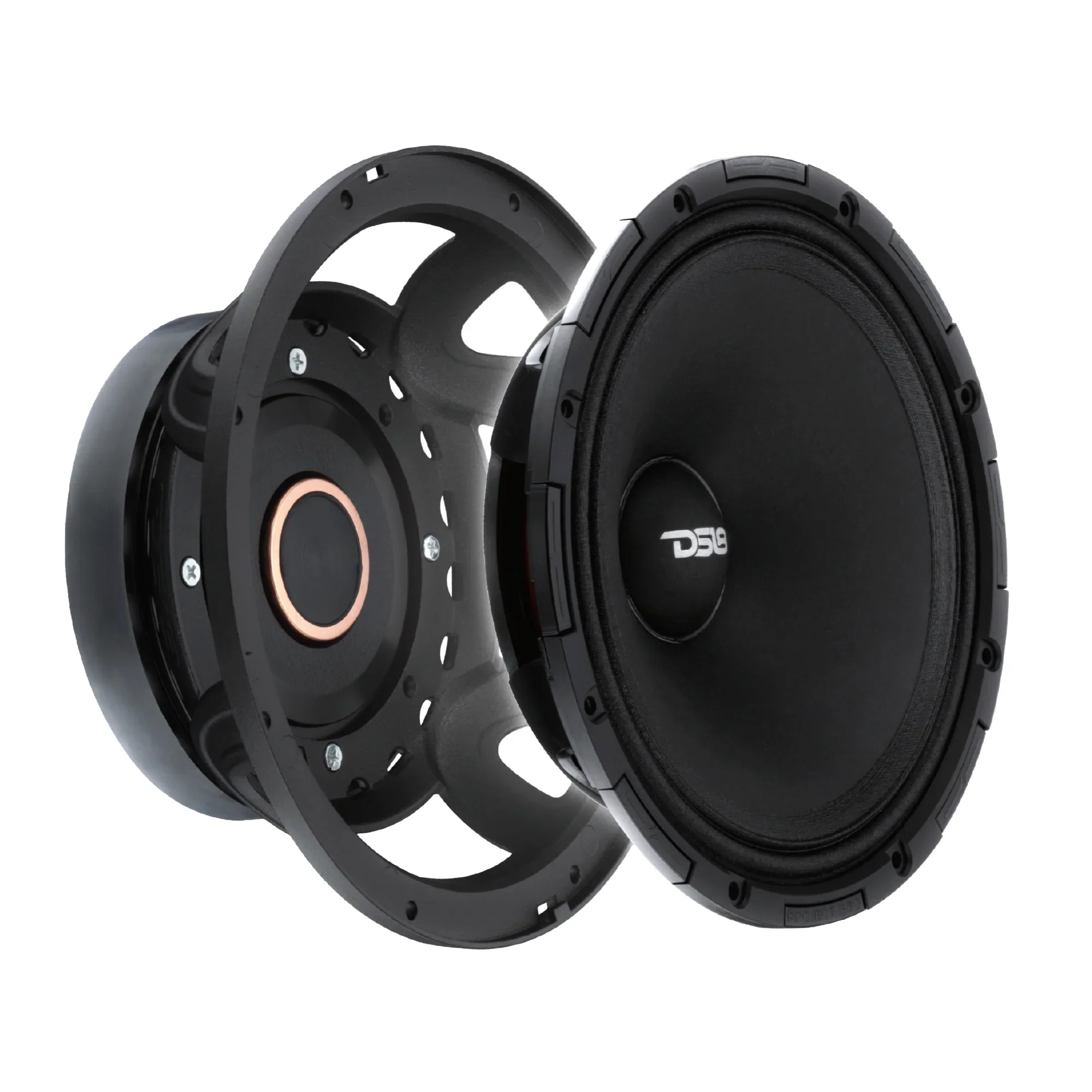

• Replacement Recone Kit: PROJECT360.84RCK

• Motor
• Voice Coil Diameter: 1.75" / 44.5mm
• Voice Coil Former Material: Kapton
• Winding Material: CCAW
• Cone Material: Paper
• Dust Cap Material: Paper
• Surround Material: Cloth
• Spider Diameter: 4.5" / 114mm
• Leads Connection Type: Round Crossed
• Basket Material: Aluminum
• Basket Color / Finish: Black
• Magnet Material: Ferrite
• Magnet Weight: 48 oz

• Thiele & Small Parameters
• Equivalent Volume: 6.92L / 0.244ft3
• Excursion (one way): 0.3 mm
• Free Air Resonance: 120 Hz
• Mechanical Factor: 3.453
• Electrical Factor: 0.525
• Total Factor: 0.456
• Moving Mass: 20.995 g
• Mechanical Compliance: 0.085 mm/N
• BL Factor: 9.584
• Voice Coil Inductance: 0.046 mH
• Cone Area: 240.53 cm2
• DC Resistance: 3.4 Ohms
