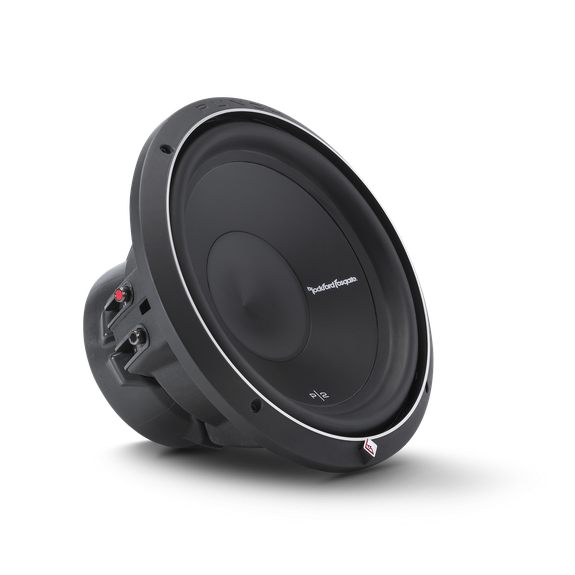

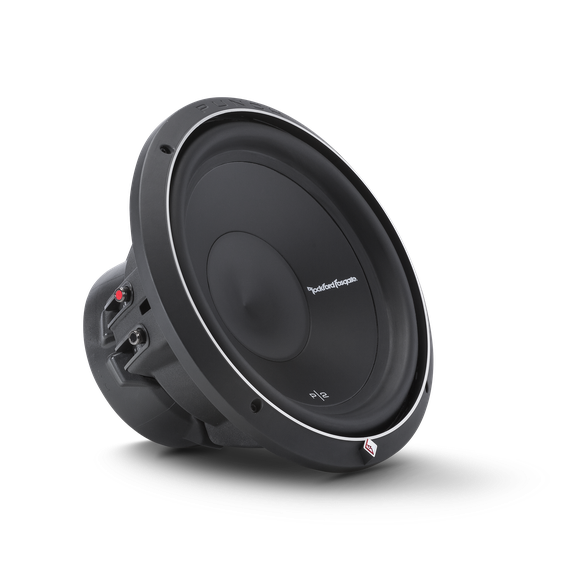

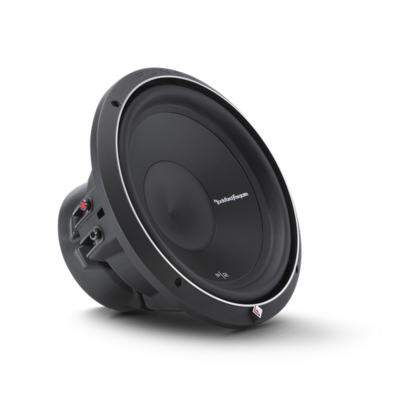

RF PUNCH P2 12" SUBWOOFER DVC
Brand:
ROCKFORD FOSGATE
|
| Article code | P2D4-12 |
| EAN | 780687332709 |
Information
Punch 12" P2 4-Ohm or 2-Ohm DVC Subwoofer
The Rockford Fosgate P2 12” subwoofer continues “The PUNCH” tradition. The P2D4-12 features a Dual 4-Ohm voice coil, 400 Watts RMS power handling, and can accommodate a grille insert using the included cast aluminum trim ring.
Power Handling (Watts RMS)
400 Watts RMS
800 Watts Max
800 Watts Max
Nominal Impedance
Dual 4-Ohm or Dual 2-Ohm
Size
12"
Mounting Depth
6.40 in. (162 mm)
Speaker Connector
Dual 10 AWG compression
Shipping Weight
15.6 Lbs. (7.07 kg)
CEA-2031 Compliant
Cutout Diameter
11.22 in. (285 mm)
Re (Ohms)
6.40
Qes
0.59
Qms
6.30
SPL (dB @ 1w/1m)
86
Fs (Hz)
27.2
Voice Coil Diameter
2.25" (57.15 mm)
Qts
0.54
Vas (Liters)
81.5
Xmax (mm)
13.3
Woofer Displacement
0.085 cu. ft. (2.4 Liters)
Magnet Weight (oz)
72.8 oz. (2.06 kg.)
Sd (cm2)
570
Le (mH)
5.5
Subwoofer Type
Standard
Voice Coil Type
Dual Voice Coil
Sealed Box Volume (Vb)
1.02 cu. ft. (28.8 Liters)
Vented Box Volume (Vb)
1.79 cu. ft. (50.6 Liters)
