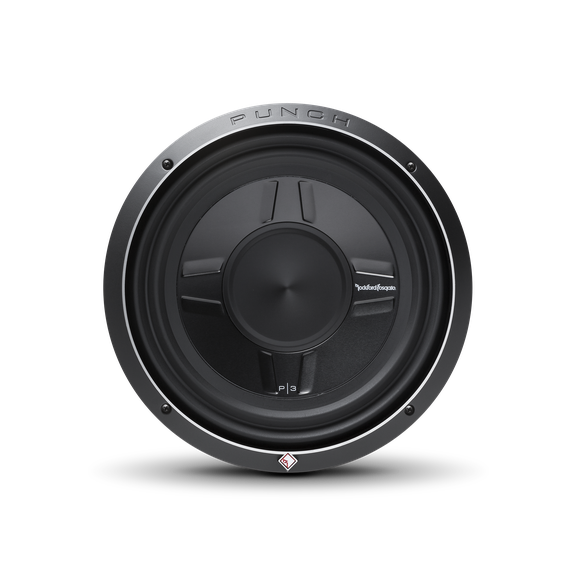

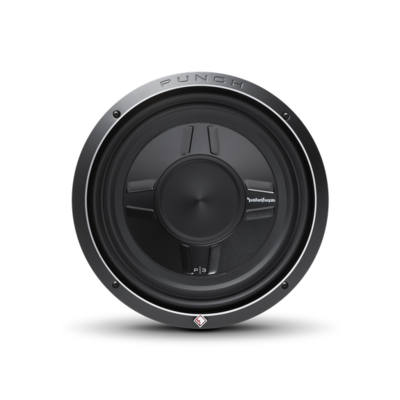

RF PUNCH P3 SHALLOW 12" SUB DVC
Brand:
ROCKFORD FOSGATE
|
| Article code | P3SD4-12 |
| EAN |
Information
Punch 12" P3S Shallow 4-Ohm or 2-Ohm DVC Subwoofer
Nominal Impedance
Dual 4-Ohm or Dual 2-Ohm
Shipping Weight
13.25 Lbs. (6.01 kg.)
Speaker Connector
Dual 10 AWG Compression
Size
12"
Mounting Depth
3.65 in. (92.5 mm)
Magnet Weight (oz)
51 oz. (1.45 kg.)
Voice Coil Diameter
2.5" (65.5 mm)
Re (Ohms)
6.80
Qms
5.70
Vas (Liters)
35.3
Fs (Hz)
35.4
Qts
0.72
Qes
0.83
Cutout Diameter
11.22 in. (285.0 mm)
Woofer Displacement
0.086 cu. ft. (2.45 Liters)
CEA-2031 Compliant
Power Handling (Watts RMS)
400 Watts RMS
800 Watts Max
800 Watts Max
Le (mH)
4.4
Sd (cm2)
500
SPL (dB @ 1w/1m)
85
Xmax (mm)
8.1
Subwoofer Type
Shallow
Voice Coil Type
Dual Voice Coil
Sealed Box Volume (Vb)
1.0 cu. ft. (28.3 Liters)
Vented Box Volume (Vb)
1.25 cu. ft. (35.3 Liters)
