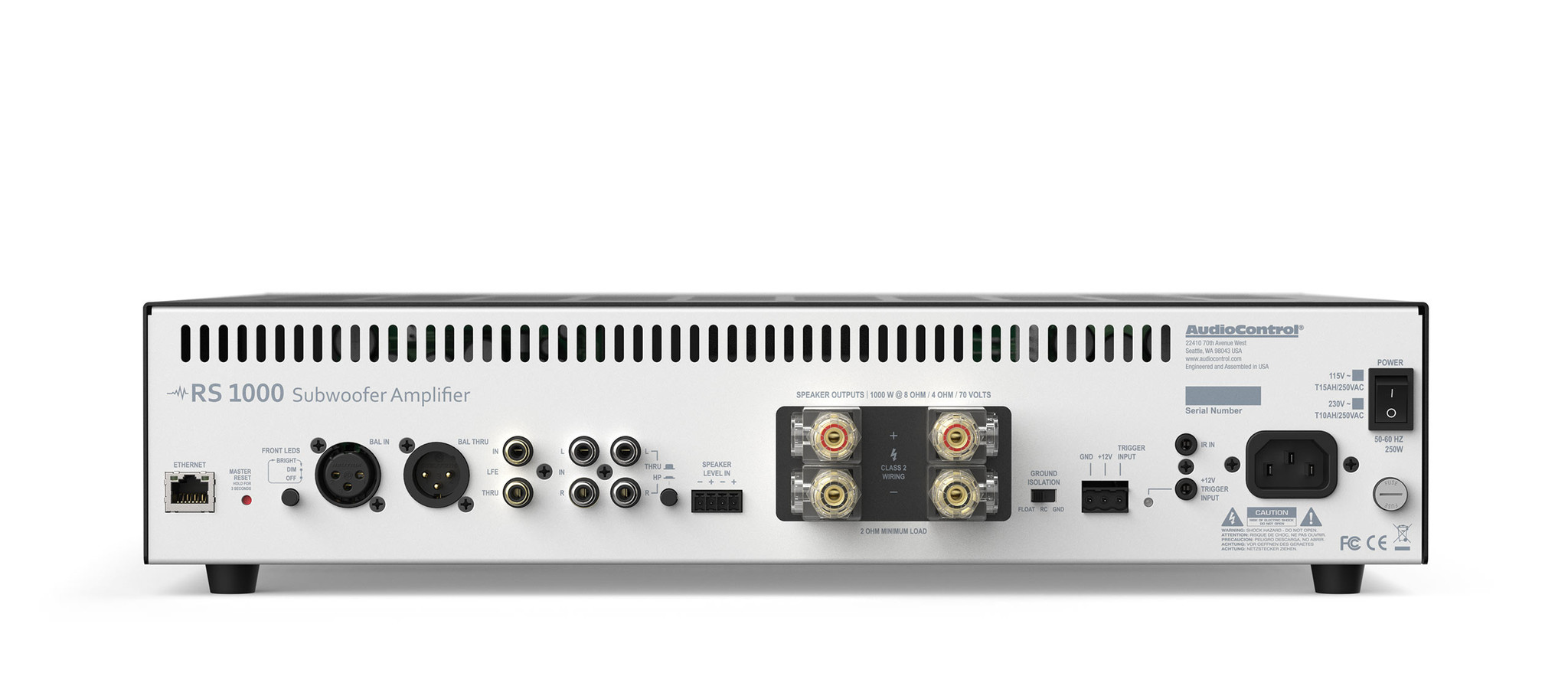

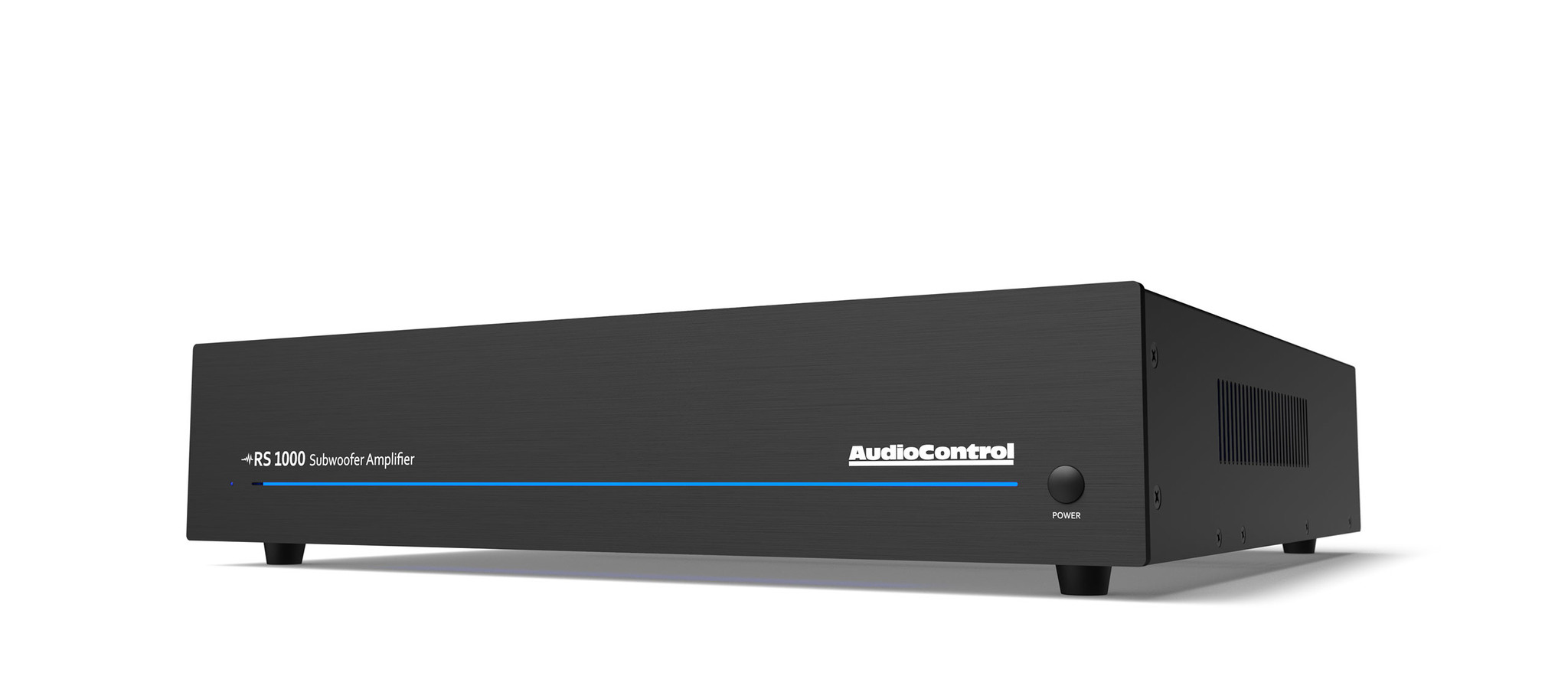

RS 1000 DSP CONTROLLED SUBWOOFER AMPLIFIER

Brand: AUDIO CONTROL
|
In stock
Ordered before counting..., delivered tomorrow
Login for prices
Article code RS 1000
EAN
Information

fEATURES

  • 1000 Watts at 8/4/2 Ohms
  • Digital Signal Processing (DSP) Performance
  • Six-band Graphic EQ
  • Eight-band Parametric EQ
  • Crossover with Subsonic Filter
  • Built-In Speaker Optimization Profiles
  • Ethernet Port for Status Monitoring, Source Switching and 12 Volt Trigger Control
  • Network Programmable Graphic & Parametric Equalization with User Memories
  • Digital Signal Sense
  • AudioControl LightDrive Anti-Clipping Speaker Protection
  • Balanced Inputs/Thru
  • Unbalanced Input/Thru
  • LFE Input/Thru
  • Speaker Level Inputs
  • Home and Commercial Installations

SPECIFICATIONS

INPUTS

  • Audio Inputs: 1 Balanced, 2 Unbalanced, 1 LFE, 2 Speaker Level
  • Nominal sensitivity: 0.5V to 4V (user selectable)
  • Signal to Noise (A-wtd ref full output): 95 dB
  • Frequency Response: 20 Hz – 350 Hz

OUTPUTS

  • Amplifier Channels: 1
  • Continuous power output:  1000W
  • Minimum Speaker Load: 2Ω
  • Loop/Thru Audio Outputs: 1 Balanced, 2 Unbalanced, 1 LFE
  • Total Harmonic Distortion: 0.1%

CONTROL

  • Remote Power Trigger: +12 VDC or Dry Contact Closure
  • Network Connection/Protocol: 10BaseT Ethernet TCP/IP
  • Communication Protocol: HTTP or Telnet
  • 12 Volt Trigger Outputs: 1
  • IR Receiver Inputs: 1

WEIGHTS & DIMENSIONS

  • Dimensions (including terminals and feet): 17”W x 17.5”D x 3.5”H (2U)
  • Weight: 17.0 lbs. (7.7 kg)
  • IN THE BOX: RS 1000, power cord, user manual, warranty
