S8-GM2 MAESTRO APX 8" RECIEVER GM 19-23 DASH KIT

Brand: MAESTRO
|
In stock
Ordered before counting..., delivered tomorrow
Login for prices
Article code S8-GM2
EAN 627780006840
Information

Install Direct Replacement receivers with an 8" screen in select 2019-23 Chevy and GMC trucks — requires ADS-MRR2 interface module

Product highlights:

  • allows you to install a Kenwood or JVC Direct Replacement radio with a 8" floating screen in select 2019-23 Chevy Silverado and GMC Sierra trucks (also requires the iDatalink Maestro RR2 module)
  • retains appearance of factory dash
  • retains the following factory features (if present):
    • OnStar and Bluetooth hands-free
    • steering wheel audio controls with two function buttons and expandable radio functions
    • backup camera with dynamic parking guidelines and park assist chimes
    • secondary vehicle display (if factory equipped)
    • USB ports
    • operate factory climate display/controls and vehicle settings from head unit's screen
  • adds these features:
    • display vehicle information
    • selectable performance gauges including "Track Pack" gauges
    • read/reset check engine codes
  • provides 12V/15A accessory power and illumination outputs
  • provides outputs (parking brake, reverse, vehicle speed sensor [VSS]) needed to install a navigation or multimedia receiver
  • does not retain factory amplifier
  • MFR # APX-S8-GM2
  • Item # 794APS8GM2

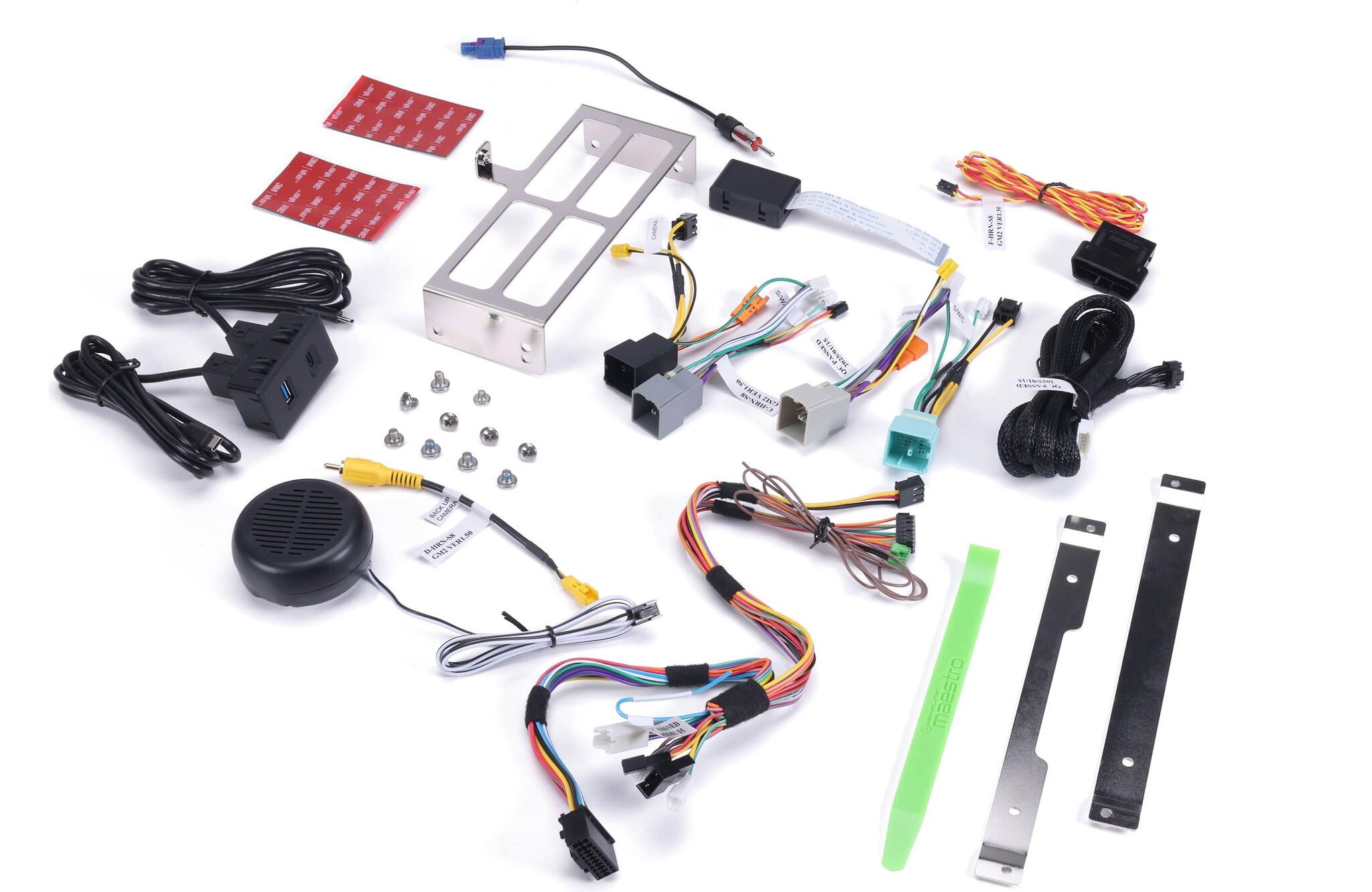

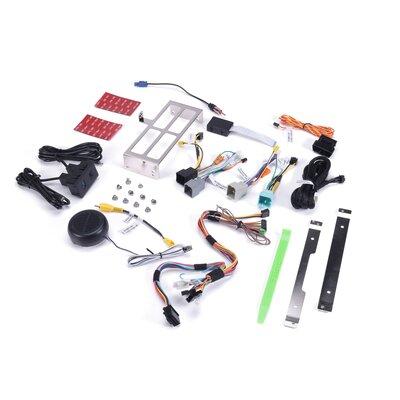

What's in the box:

S8-GM2-01 bracket

  • S8-GM2-02 bracket
  • S8-GM2-11 bracket
  • Vehicle/interface harness
  • E-HRN-S8 harness
  • C-HRN-S8 harness
  • B-HRN-S8 harness
  • Backup camera harness
  • USB media module
  • External chime
  • Ribbon pack
  • OBDII harness
  • Antenna adapter
  • USB housing
  • micro-USB to USB-C cable
  • micro-USB to USB-C adapter
  • micro-USB to USB-A adapter
  • 2 Cable-ties
  • 3M tape
  • Pry-tool
  • Eight M5x6mm screws
  • M5x8mm screw
  • "GND" screw
  • Quick Start Guide
