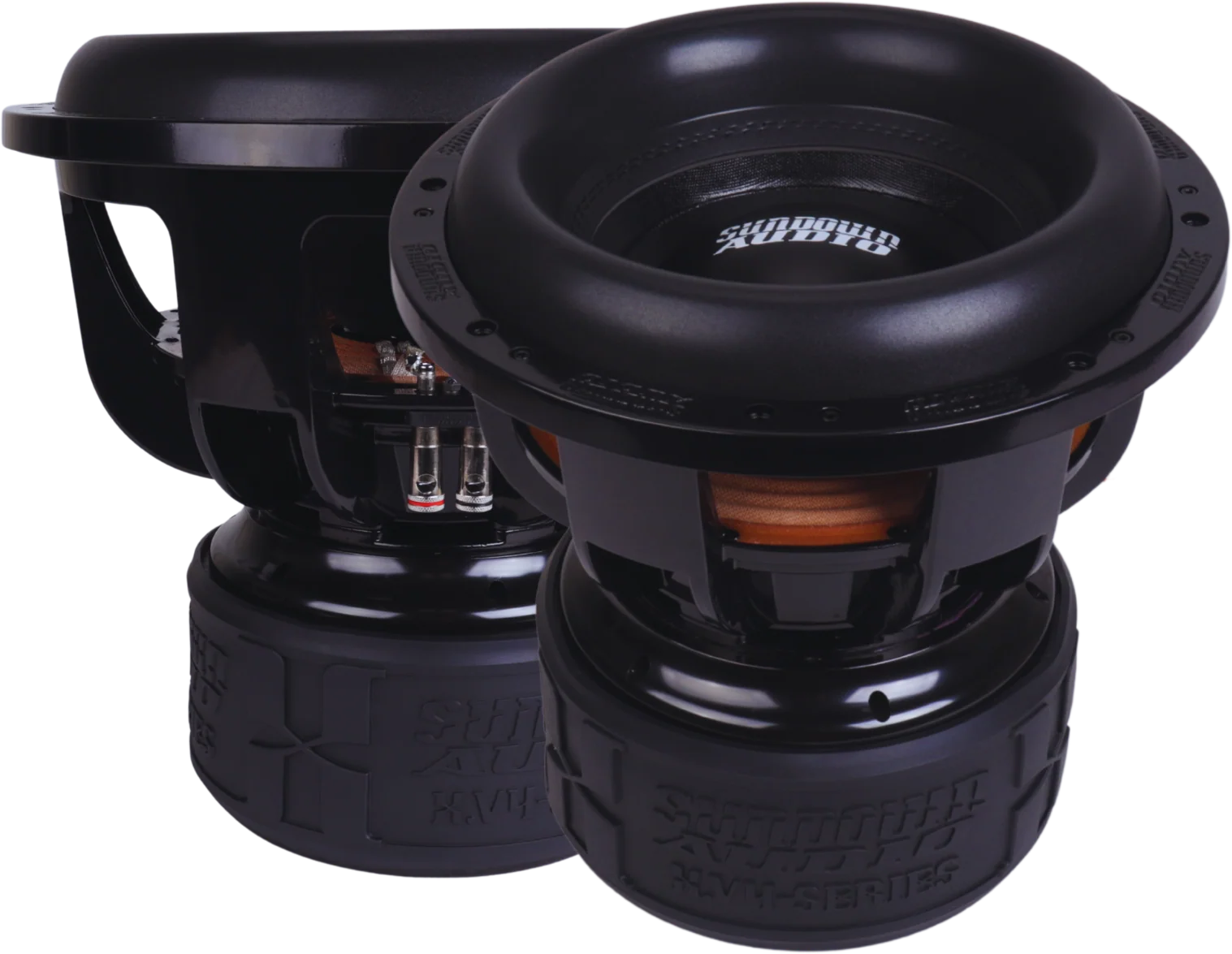

SUNDOWN SW-XV415 SUNDOWN 15" 3000W SUB DVC

Brand: SUNDOWN
|
In stock
Ordered before counting..., delivered tomorrow
Login for prices
Article code SW-XV415D1
EAN 810111131292
Information

X-Series XV4 15" 3000W RMS Subwoofer

The Sundown Audio XV4 15″ Subwoofer delivers the ultimate low-frequency experience for serious bass lovers. Built with the advanced X v.4 coil design, this subwoofer offers extreme power handling and consistent performance under heavy loads.

With up to 3000W RMS and 6000W peak power, it ensures clean, distortion-free sound even at the highest volumes. The durable motor structure and optimized cone area (72.58 in²) provide deeper lows and better air displacement for maximum sound pressure.

Engineered for flexibility, the XV4 15″ works best in ported enclosures (4.25 cu ft, tuned to 32 Hz) but can also be customized for complex box designs like 4th order setups. Every element — from the high-grade magnet to the precision voice coil — is crafted to deliver unmatched performance and reliability.

Perfect for audiophiles and competitors seeking solid bass impact, this subwoofer combines engineering excellence and raw power in one package.

Key Features

  • 15″ high-performance subwoofer with X v.4 coils
  • 3000W RMS / 6000W peak power handling
  • 30mm Xmax for strong linear excursion
  • Optimized motor design (9.25″ diameter)
  • Recommended ported box: 4.25 cu ft @ 32 Hz
  • Robust cone design for high SPL output
  • Ideal for competitive and high-end car audio systems
Specifications

Specifications for product X-Series XV4 15" 3000W RMS Subwoofer
Dual 1-Ohm T/S Specs
RMS Power (D1)
3000
Peak Power (D1)
6000
RE-Ohms (D1)
3.2
Fs-Hz (D1)
29.91
Vas-L (D1)
31.43
Qes (D1)
0.55
Qms (D1)
4.87
Qts (D1)
0.49
Le-mH (D1)
2.57
BL-NA (D1)
22.32
Mms (D1)
457.51
Cms (D1)
61.87
Sensitivity-db @ 1w/1m (D1)
85.29
Xmax (D1)
30mm
Dual-2-Ohm T/S Specs
RMS Power (D2)
3000
Peak Power (D2)
6000
Re-Ohms (D2)
3.74
FS-Hz (D2)
29.51
Vas-L (D2)
40.41
Qes (D2)
0.49
Qms (D2)
4.08
Qts (D2)
0.44
BL-NA (D2)
27.44
Mms-Grams (D2)
538.24
Cms-uM/N (D2)
54.02
Sensitivity-dB @ 1w/1m (D2)
85.1
Xmax (D2)
30mm
Subwoofer Measurements
Displacement (Inches)
0.26cu.ft.
Depth (Inches)
12.95"
Cutout (Inches)
13.93"
Motor Diameter (Inches)
9.25"
Ported Enclosure Specs
Ported Enclosure Size
4.25 cu ft
Recommended Port Area
68 sq in
Recommended Port Tuning
32
4th Order Enclosure Specs
4th Order Sealed Side
2.0cu ft
4th Order Ported Side
6.0cu ft
4th Order Port Area
120sq in
4th Order Port Length
8"
