SUNDOWN SW-XV418 SUNDOWN 18" 3000W SUB DVC

Brand: SUNDOWN
|
In stock
Ordered before counting..., delivered tomorrow
Login for prices
Article code SW-XV418D1
EAN 810111131315
Information

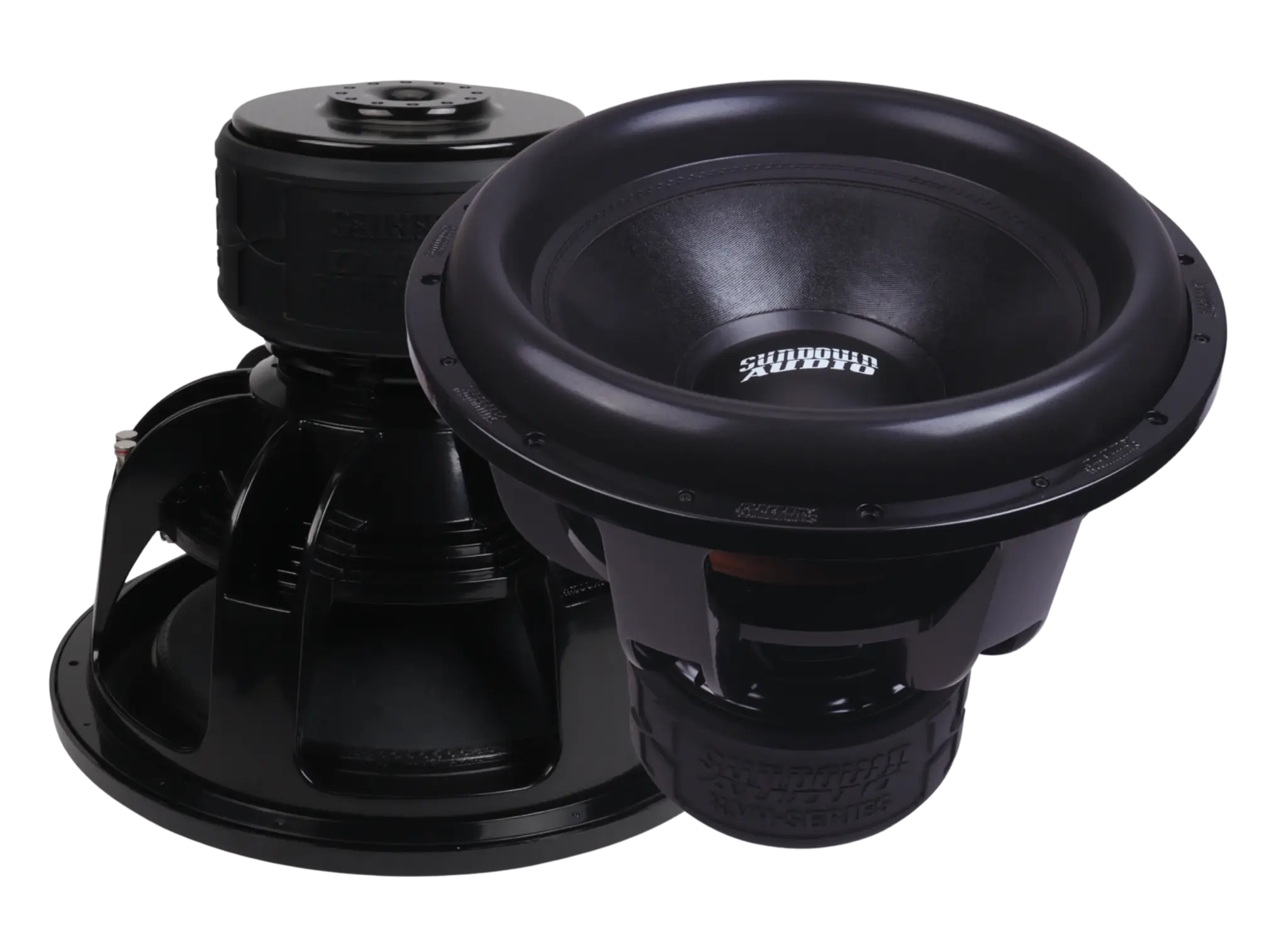

X-Series XV4 18" 3000W RMS Subwoofer

The Sundown Xv4 18″ Subwoofer delivers unmatched power and control for serious bass enthusiasts. Built with high-grade X v.4 coils, this subwoofer is designed to handle up to 3000W RMS and 6000W peak power, ensuring maximum output without distortion.

Its optimized design enhances air movement and cooling, providing long-lasting performance even under heavy use. The advanced motor structure and large cone area (SD 113.41) create powerful low-frequency response and clean sound reproduction.

Perfect for sealed or ported enclosures, the Xv4 18″ gives you flexibility in setup and tuning — whether for SPL competition or everyday high-quality listening.

Durable, reliable, and beautifully crafted, this subwoofer is the next-level upgrade your sound system deserves.

Key Features

  • 18″ Xv4 Series Subwoofer
  • 3000W RMS / 6000W Peak Power
  • Dual 1-Ohm or Dual 2-Ohm Voice Coil Options
  • Precision-engineered X v.4 Coils for stability
  • Heavy-duty motor with 9.25″ diameter
  • Deep bass response with 30 mm Xmax
  • Sealed or ported enclosure compatibility
  • Recommended Port Tuning: 32 Hz
  • Built for extreme durability and clean sound
Specifications

Specifications for product X-Series XV4 18" 3000W RMS Subwoofer
Dual 1-Ohm T/S Specs
RMS Power (D1)
3000
Peak Power (D1)
6000
RE-Ohms (D1)
2.05
Fs-Hz (D1)
25.87
Vas-L (D1)
93.67
Qes (D1)
0.63
Qms (D1)
4.13
Qts (D1)
0.54
BL-NA (D1)
19.74
Mms (D1)
737.81
Cms (D1)
51.28
Sensitivity-db @ 1w/1m (D1)
86
Xmax (D1)
30mm
Dual-2-Ohm T/S Specs
RMS Power (D2)
3000
Peak Power (D2)
6000
Re-Ohms (D2)
3.74
FS-Hz (D2)
25.58
Vas-L (D2)
1.7.58
Qes (D2)
0.55
Qms (D2)
4.03
Qts (D2)
0.84
BL-NA (D2)
26.8
Mms-Grams (D2)
656.74
Cms-uM/N (D2)
58.9
Sensitivity-dB @ 1w/1m (D2)
87
Xmax (D2)
30mm
Subwoofer Measurements
Displacement (Inches)
0.28cu.ft.
Depth (Inches)
15"
Cutout (Inches)
16.69"
Motor Diameter (Inches)
9.25"
Ported Enclosure Specs
Ported Enclosure Size
7.00 cu ft
Recommended Port Area
112 sq in
Recommended Port Tuning
32 hz
4th Order Enclosure Specs
4th Order Sealed Side
3.0cu ft
4th Order Ported Side
9.0cu ft
4th Order Port Area
180sq in
4th Order Port Length
8"
