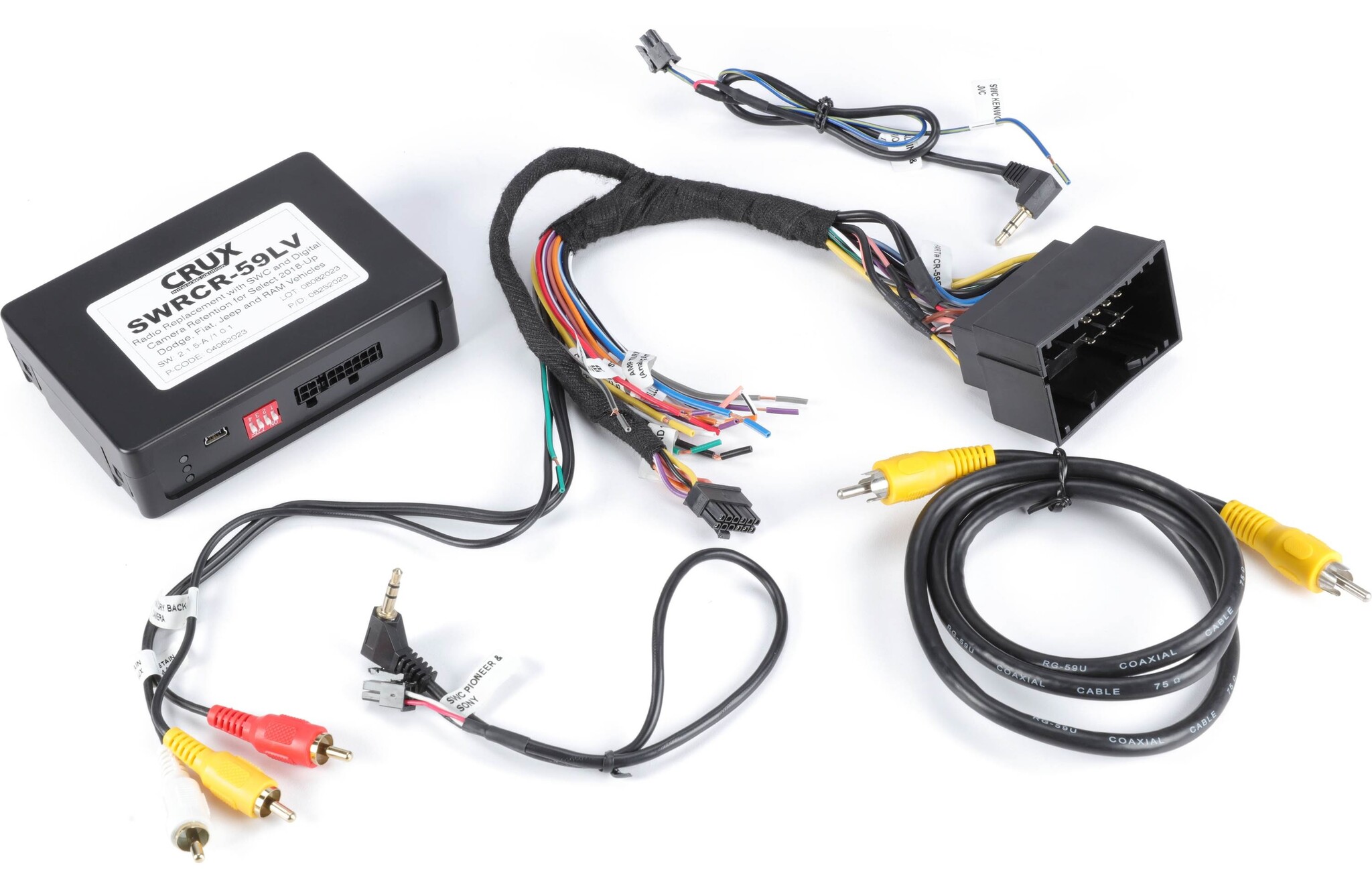

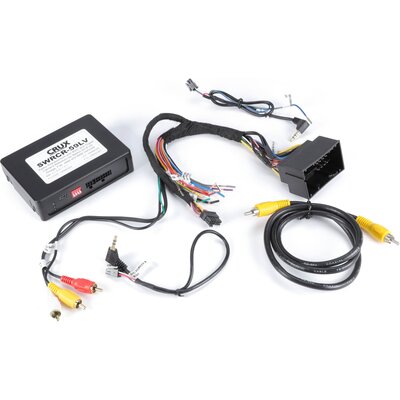

CRUX SWRCR-59LV Wiring Interface

Connect a new car stereo and retain the steering wheel audio controls and other factory features in select 2013-up Dodge, Fiat, Jeep, and Ram vehicles

Product info:

• connect a new stereo in select 2013-up Dodge, Fiat, Jeep, and Ram vehicles
• retain your steering wheel controls with select car stereos
• retains factory backup camera
• retains auxiliary input in select vehicles
• retains factory analog amplifier in select vehicles
• retains factory SWC phone button functionality in select vehicles
• provides accessory power (2A max)

Vehicle Compatibility: The CRUX SWRCR-59LV is a radio replacement interface for select 2013-up Dodge, Fiat, Jeep, and Ram vehicles. It allows you to replace the factory radio with an aftermarket receiver, while retaining important factory features and functionality.

Retained Factory Features: The CRUX SWRCR-59LV will retain the following factory features of your vehicle (if equipped).

• Factory Analog Amplifier: Your factory analog amplifier is retained along with balance and fader controls.

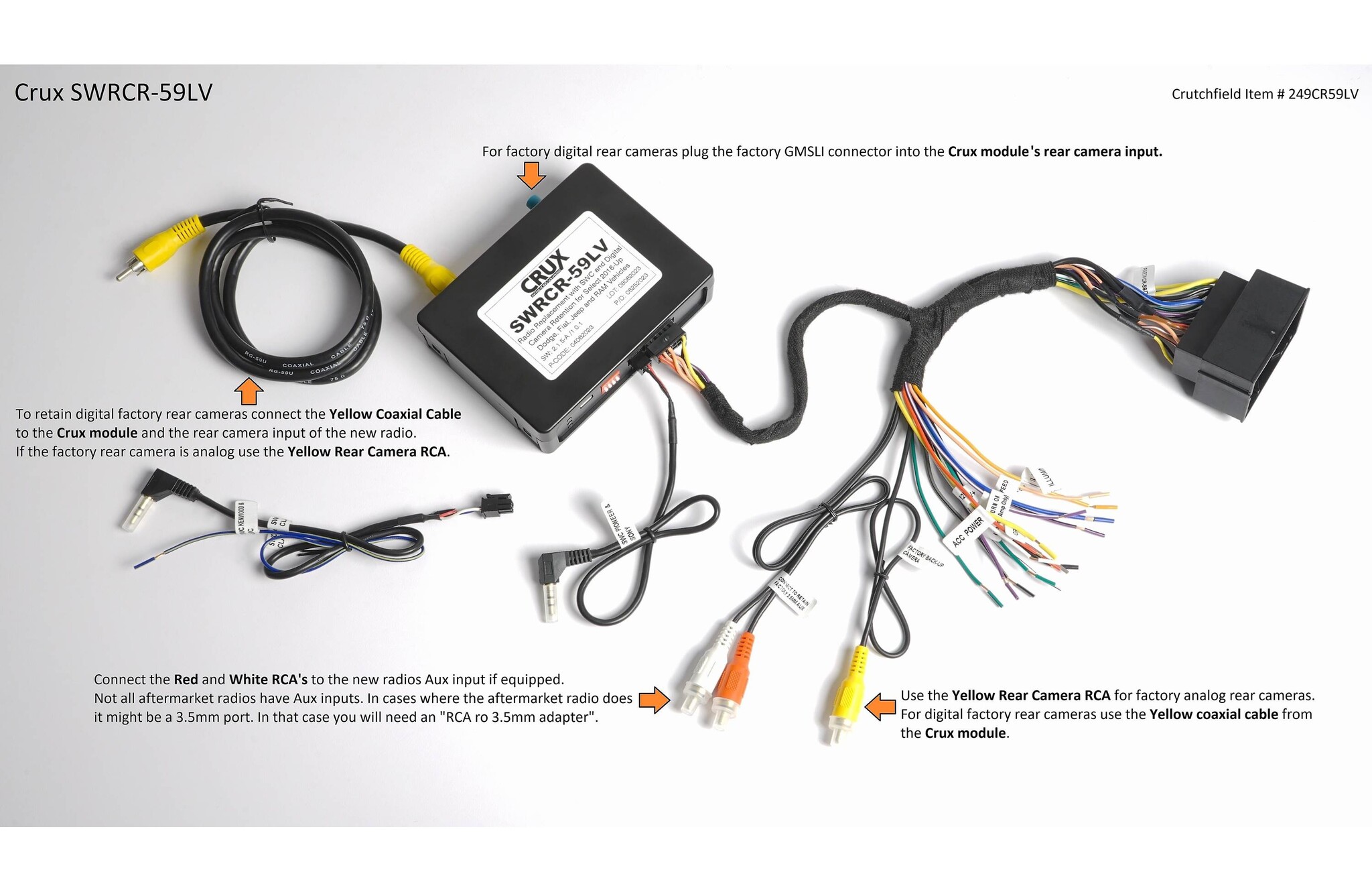

• Backup Camera: The CRUX SWRCR-59LV will retain your vehicle's factory backup camera through the rearview camera input on your new aftermarket receiver. The rearview camera input on your aftermarket radio must consist of a composite video jack.
• Aux Input: It also retains your vehicle's factory Aux input through the use of your aftermarket receiver's rear-panel audio input. The SWRCR-59LV features male stereo RCA jacks to plug into the audio input on back of your aftermarket radio. If your aftermarket stereo is equipped with a stereo minijack input, you'll need a female stereo RCA to male stereo minijack adapter (sold separately).
• Steering Wheel Controls: The CRUX SWRCR-LV comes pre-programmed to retain the factory steering wheel controls in your vehicle. The SWRCR-59D will work with a variety of aftermarket radio brands that feature a steering wheel control input using one of the included SWC harnesses and by configuring the 4 dip-switches (see owner's manual for settings and more details).

Outputs: The CRUX SWRCR-59LV radio replacement interface module provides Navigation Outputs and a +12V/2A Accessory Output to make installation easier.

• Navigation Outputs: The CRUX SWRCR-59LV radio replacement interface module provides a VSS (vehicle speed sense) and a Reverse Gear output to make installing an aftermarket navigation radio simpler and less time consuming. *There is no parking brake wire.
• +12V/2A Accessory Output: Because these vehicles have no 12-volt accessory wire in the factory harness, the SWRCR-59LV is designed to provide 12V/2A accessory power without requiring you to run an accessory wire to the fuse box or underneath the steering column when installing your aftermarket radio.
